Graco XP-H Series Instructions

Component Identification
16 3A0420V
XP-h Proportioners
Key:
D High Pressure Fluid Pump
E Hydraulic Motor
F Fluid Heater (optional)
G Solvent Flush Pump (optional); see page 18
H Solvent Flush Pump Air Controls; see page 18
J 7 Gallon Hoppers (optional)
KCart
LBrake
M Handle (lift to release)
N Fluid Control Assembly; see page 17
P Tie Rods
R Motor Adapter Plate
S Adjustable Packing Nuts with Wet Cups
T Yoke With Rod Bearings
U Recirculation Lines
V Yoke Position Nut
W Static Mixer Tubes with Replacement Plastic Elements
X Motor Position Indicator Lines; see Motor Position on
page 22
Y Over Pressure Rupture Disc;
only 38cc, 48cc, 54cc, 58cc, and 72cc pumps

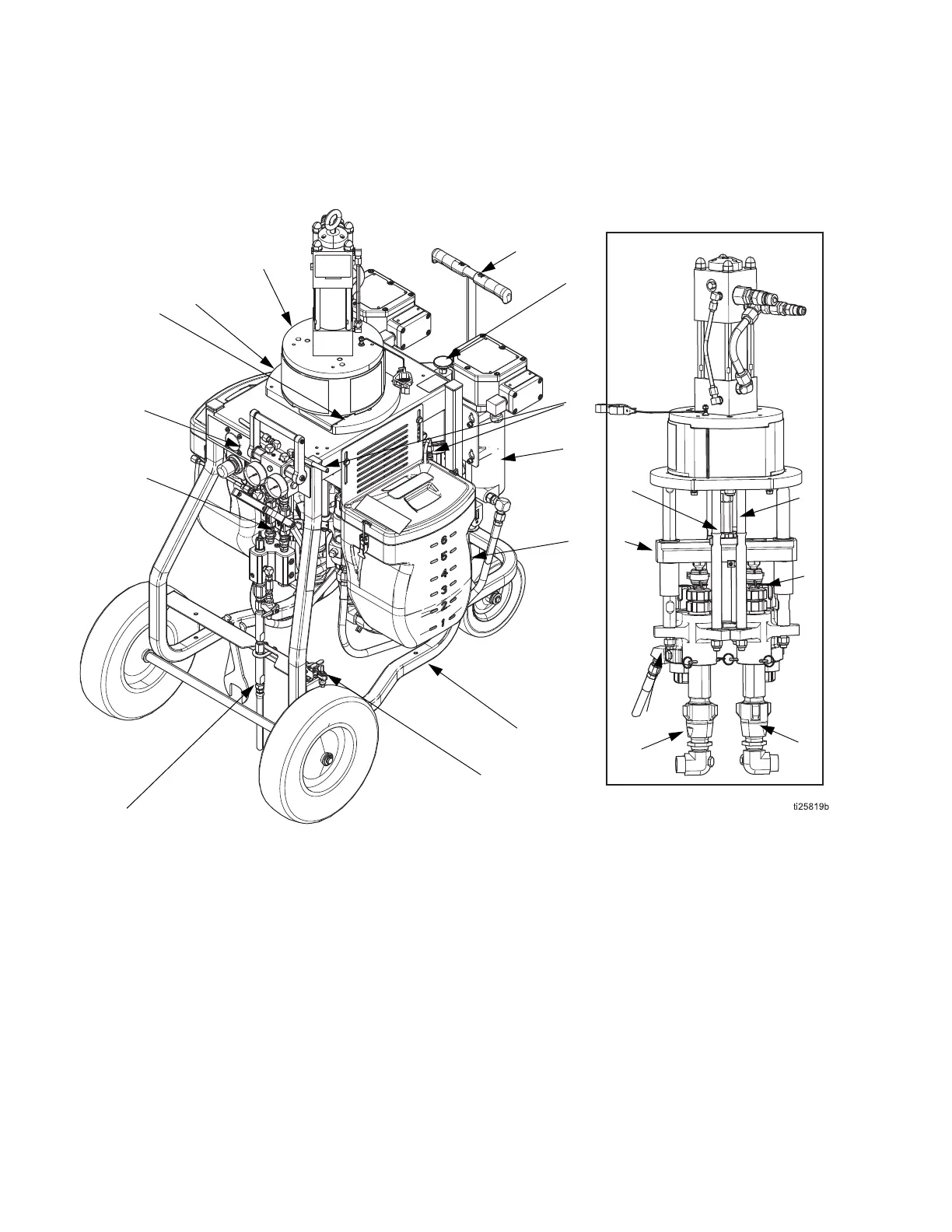

FIG. 2: XP70 system with optional accessories
M
F
N
E
L
J
K
R
D
S
T
P
G
H
Mounting Components for
Pump Package
U
V
W
D
Y
X
