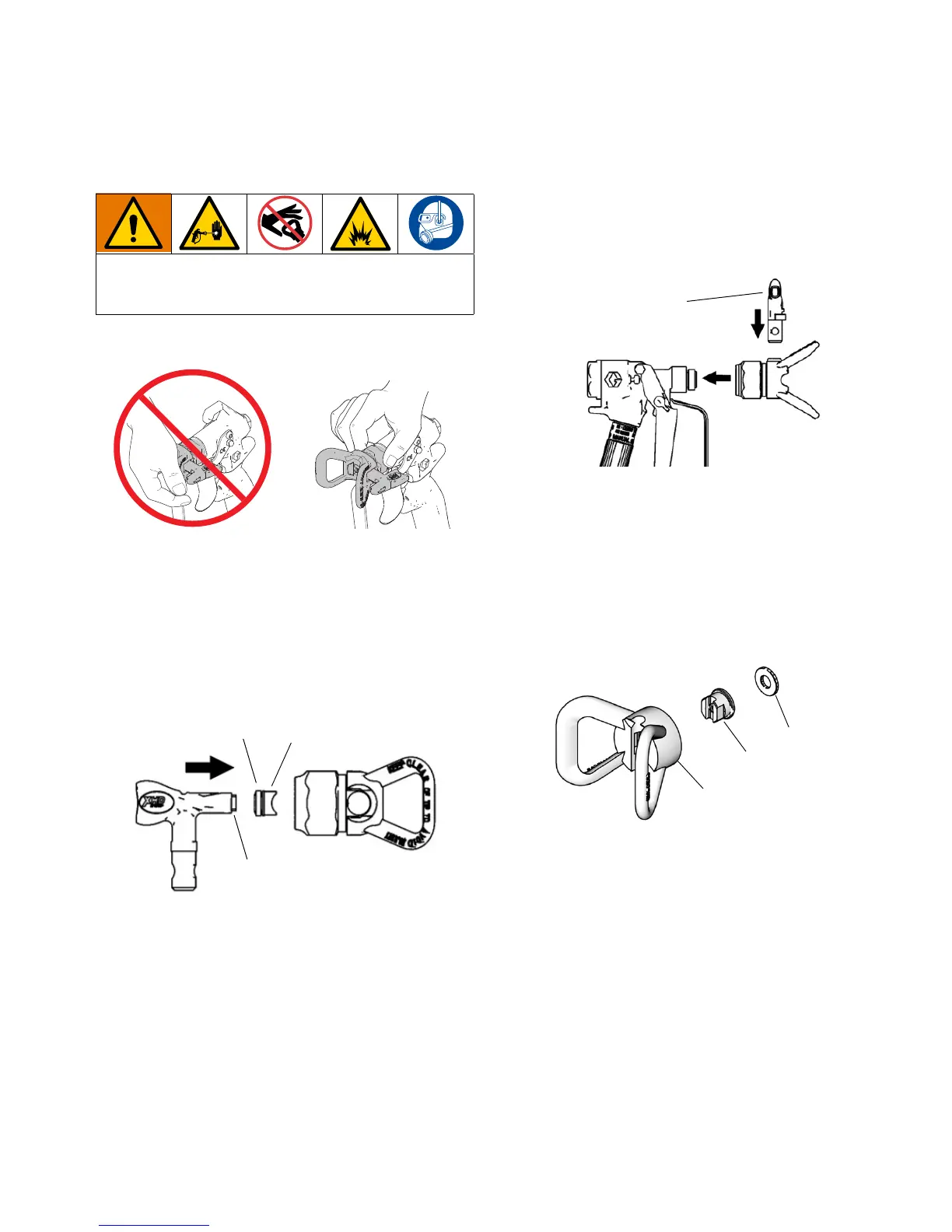

Spray Tip Installation
8 312145K
Spray Tip Installation
RAC Tip
1. Follow the Pressure Relief Procedure, page 6.
Engage the trigger lock.
2. Snap gasket (20b) on fluid seal (20a). Use tool (A)
to insert gasket and seal into housing, seal first. Tip
the tool to remove it when seal is in place.
3. Install tip cylinder (20c) as shown. Turn 90°
counterclockwise to spray position, so the arrow
faces forward. Install assembled RAC onto spray
gun.
Flat Tip
1. Follow the Pressure Relief Procedure, page 6.
Engage the trigger lock.
2. Insert tip (32) and gasket (30) into back of guard
(31).
3. Install the guard over the end of the gun.
To avoid serious injury from skin injection, do not put
your hand in front of the spray tip when installing or
removing the spray tip and tip guard.
