7. Technical data
22 / 33
www.graf.info
06-2018

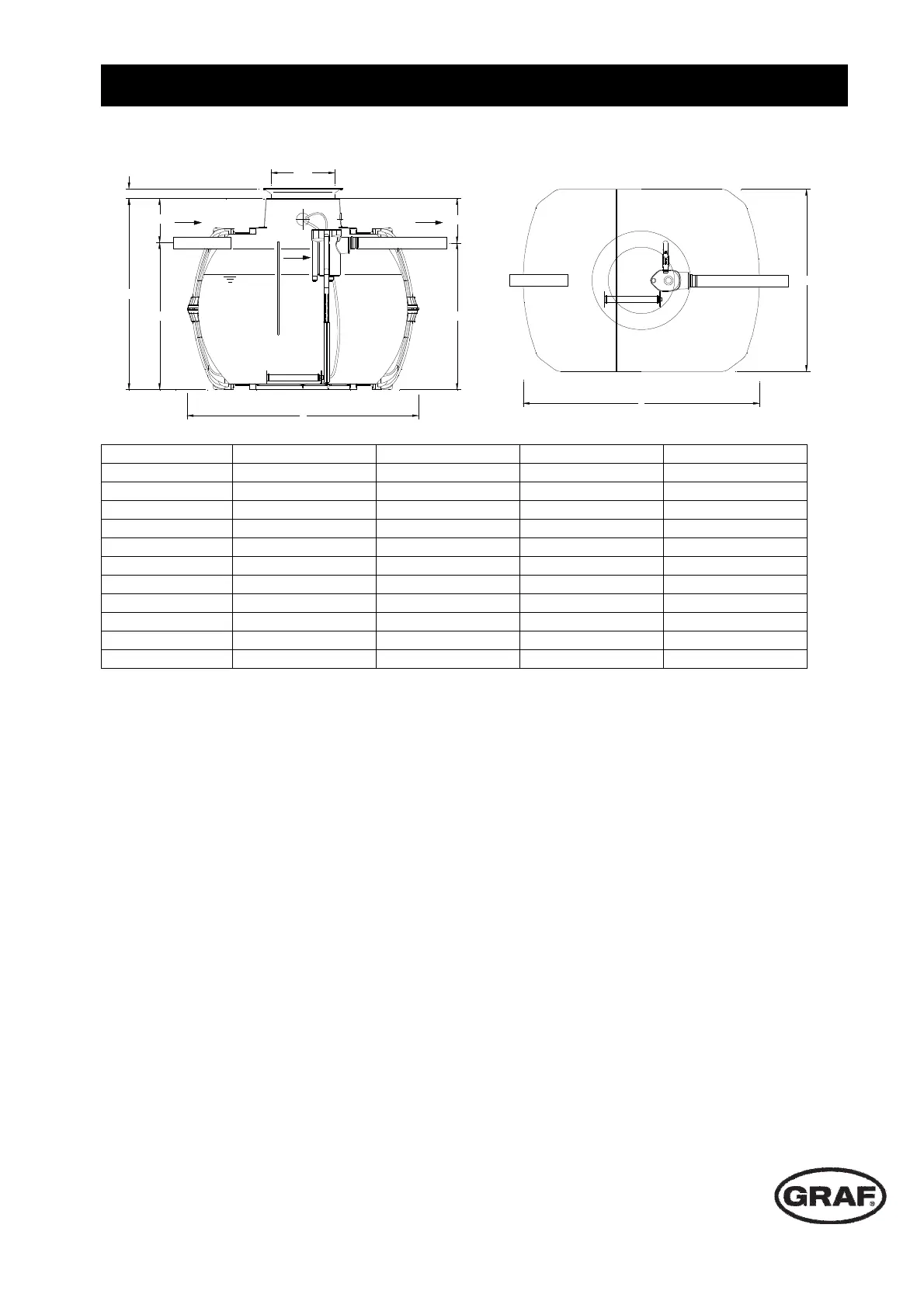

7. Technical data
Ta
nks 2,700 l 3,750 l 4,800 l 6,500 l
Inhabitants 1-3 inhabitants 4-5 inhabitants 6-7 inhabitants 8-9 inhabitants
Max. daily inflow 0,45 m
3
/d 0,75 m
3
/d 1,05 m
3
/d 1,35 m
3
/d
Length L 2,080 mm 2,280 mm 2,280 mm 2,390 mm
Width B 1,565 mm 1,755 mm 1,985 mm 2,190 mm
Height H
tot
1,690 / 2,010* mm 1,870 / 2,200* mm 2,100 / 2,430* mm 2,380 / 2,710* mm
Inflow Z1 430 / 750* mm 430 / 750* mm 515 / 835* mm 535 / 855* mm
Inflow Z2 1260 mm 1450 mm 1595 mm 1855 mm
Outflow A1 470 / 800* mm 470 / 800* mm 470 / 800* mm 470 / 800* mm
Outflow A2 1255 mm 1445 mm 1590 mm 1850 mm
* with Maxi tank dome
DN100
DN 100
Z1
A1
625
140-340
Htot
Z2
A2
A
L
L
B
