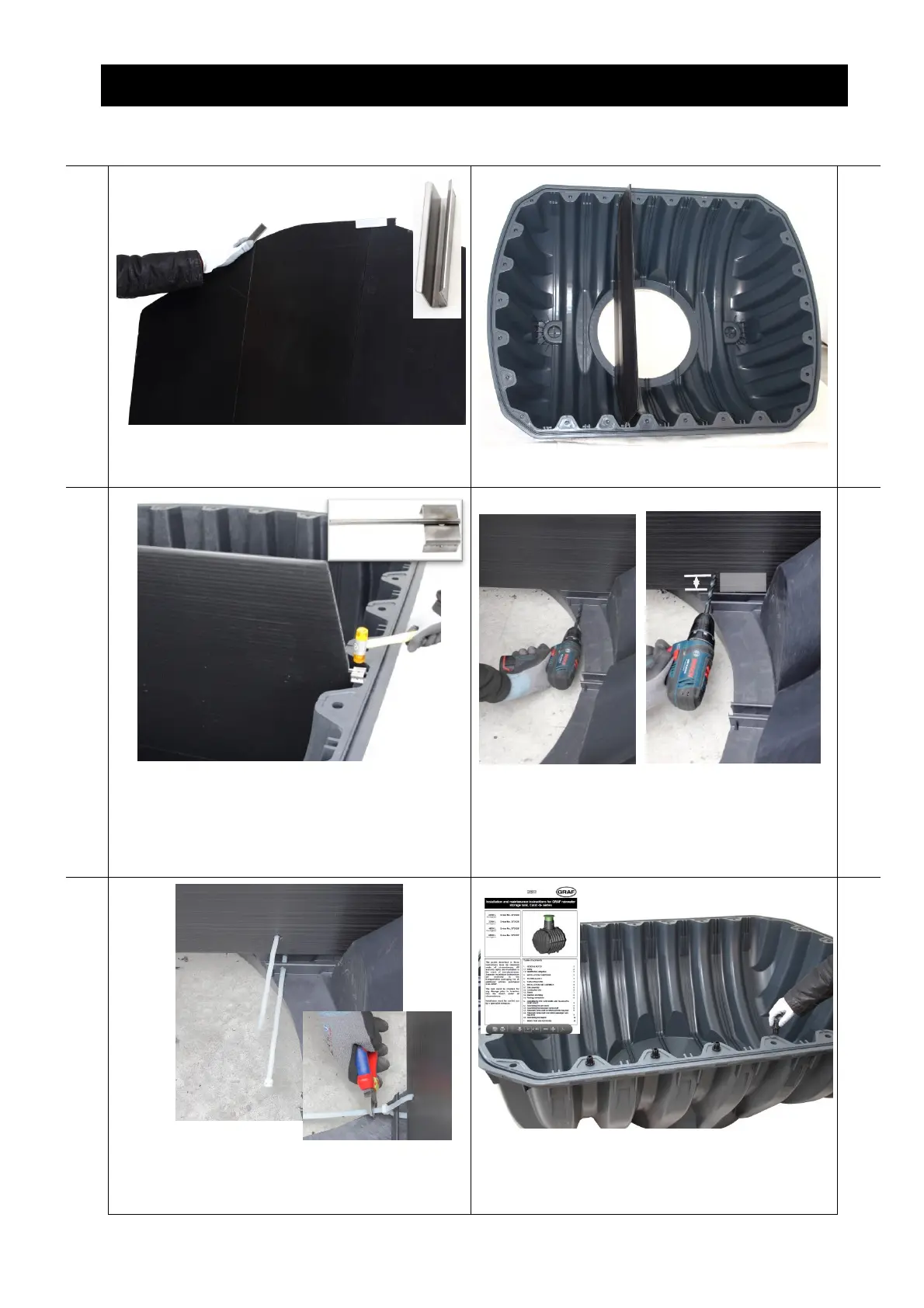

4. Assembling the set-up kit
1. 2.
Unfold the scum board. Place the clamps on ei-
ther side of the folding edges.
Insert the scum board into the upper shell. A
groove offsets in an off-centre position.
3. 4.
The fixing clamp has to be pushed with the
rounded stick in to the baffles side. The fixing
clamp has to be fixed.
Once the baffle has been positioned perforate the
inner rib directly above the wall using an 8mm. drill
head.
Perforate the baffle 4 cm. from its edge using the
same 8 mm. drill head.
5. 6.
Pass a cable tie through both holes and tighten it.
Cut the excess cable tie.
Repeat this procedure on the opposite side
Continue assembling the Carat RS tank according
to the installation instructions (seal, centring pins,
lubricant).
