Gram PROCESS KP 82 - Electronic Controller, Overview

765041982 Rev. 000 31


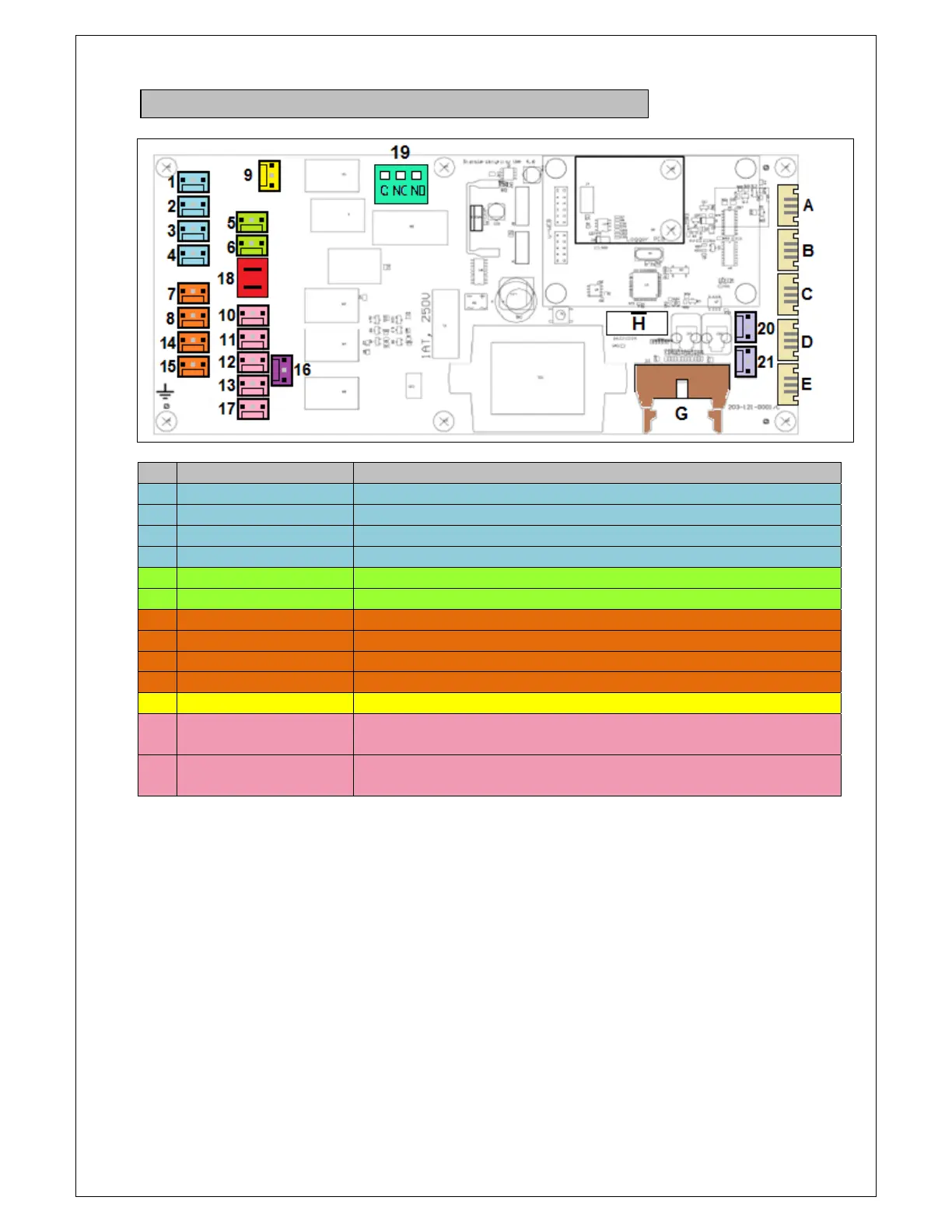

Electronic controller, overview
No Description Application
1 230V output Rel. K1 Compressor 1, cond.fan, re-evaporation heat (Standard)
2 230V output Rel. K1 Compressor 1, cond.fan, re-evaporation heat (Standard)
3 230V output Rel. K1 Compressor 1, cond.fan, re-evaporation heat (Standard)
4 230V output Rel. K1 Compressor 1, cond.fan, re-evaporation heat (Standard)
5 230V output Rel. K3 Evaporator fan
6 230V output Rel. K3 Evaporator fan
7 230V output Rel. K2 Defrost heat, drain line heat
8 230V output Rel. K2 Defrost heat, drain line heat
14 230V output Rel. K2 Defrost heat, drain line heat
15 230V output Rel. K2 Defrost heat, drain line heat
9 230V output Rel. K4 Light (LED)
10 230V output Rel.
K7/K8
100% power, door frame-, drain line-, re-evaporation heat
11 230V output Rel.
K7/8
100% power, door frame-, drain line-, re-evaporation heat


