Repair manual GRAMMER seat suspension MSG95EAC – November 2012
Material no. 1 277 338
2.1 Overview of components
Page 3 of 7

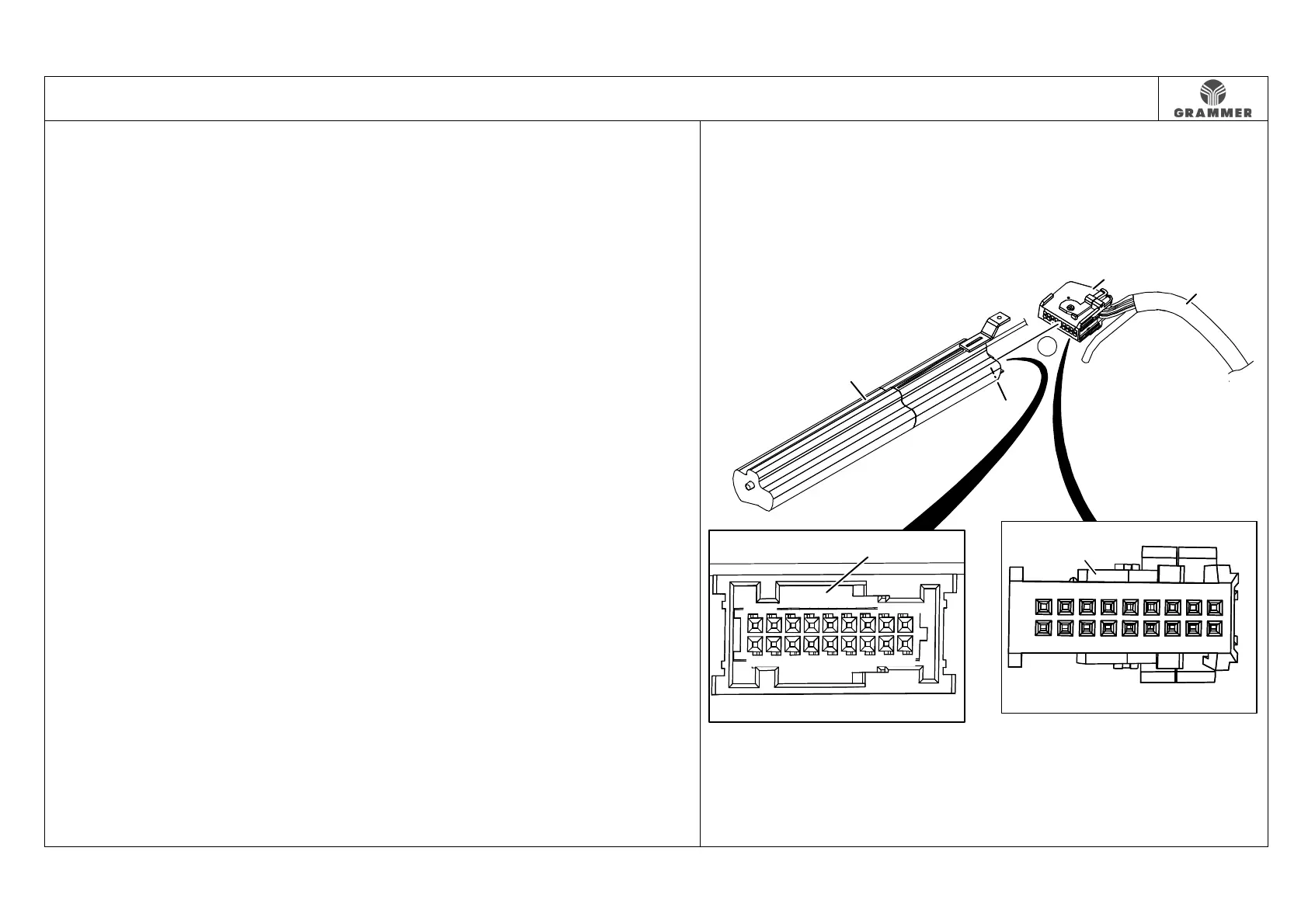

Control / air reservoir with pin
assignment
(1) Control / air reservoir
(2) Plug of control (18-pin)
(3) Socket of cable harness for seat
suspension (18-pin)
(4) Cable harness for seat suspension
Electrical plug and socket connection:
(C) Electrical connection (18-pin)
between control / air reservoir (1)
and cable harness for seat
suspension (4)
2854
C
1
2
3
4
P10... ...P18
2
P1 P2 P4 P5 P6 P7 P8 P9
3
K9 K8 K7 K6 K5 K4 K2
... K10
K1
K18 ...
