Repair manual GRAMMER seat suspension MSG95EAC – November 2012
Material no. 1 277 338
2.1 Overview of components
Page 4 of 7

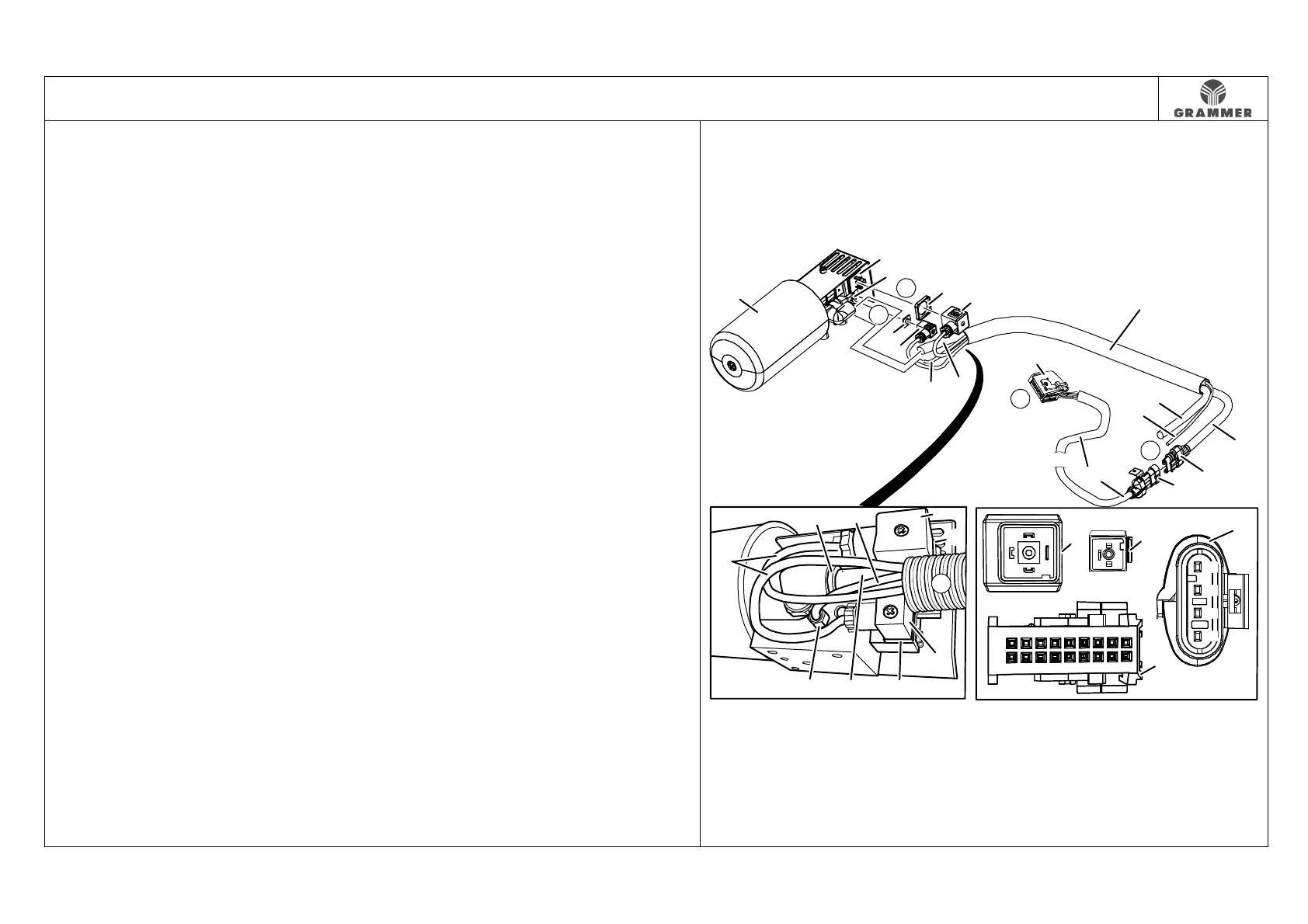

Active module and cable harness
for the energy bundle with pin
assignment
(1) Active module
(2) Plug of active module (3-pin/large)
(3) Plug of active module (3-pin/small)
(4) Seal (large)
(5) Seal (small)
(6) Socket (cable harness for energy
bundle, 2-pin/small)
(7) Socket (cable harness for energy
bundle, 2-pin/large)
(8) Energy bundle
(9) Air hose (thick)
(10) Air hose (thin)
(11) Cable harness for energy bundle
12) Socket of cable harness for energy
bundle (4-pin)
(13) Socket of cable harness for seat
suspension (4-pin)
(14) Cable harness for seat suspension
(15) Circlip
16 Quick-release fastener screw
(17) Socket of cable harness for seat
suspension (18-pin)
Electrical plug and socket connection:
(C) Electrical connection (18-pin)
between the control / air reservoir
and the cable harness for seat
suspension (14)
(D) Electrical connection (3-pin/large)
between electromagnet for 3/2
directional valve at the active
module (1) and cable harness for
energy bundle (11)
(E) Electrical connection (3-pin/small)
between electromagnet for 2/2
directional valve at the active
module (1) and cable harness for
energy bundle (11)
(F) Electrical connection (4-pin)
between cable harness for energy
bundle (11) and cable harness for
seat suspension (14)
2855
7
3
2
8
9
7
4
E
D
F
C
6
5
1
3
2
9
11
13
14
10
10
12
12
P1
K5K6
K10
P2
P2
P1
5
6
10
9
15
11
16
8
4
K1
K2
K3
K4
17
17
