2.1 Overview of components
Page 6 of 7

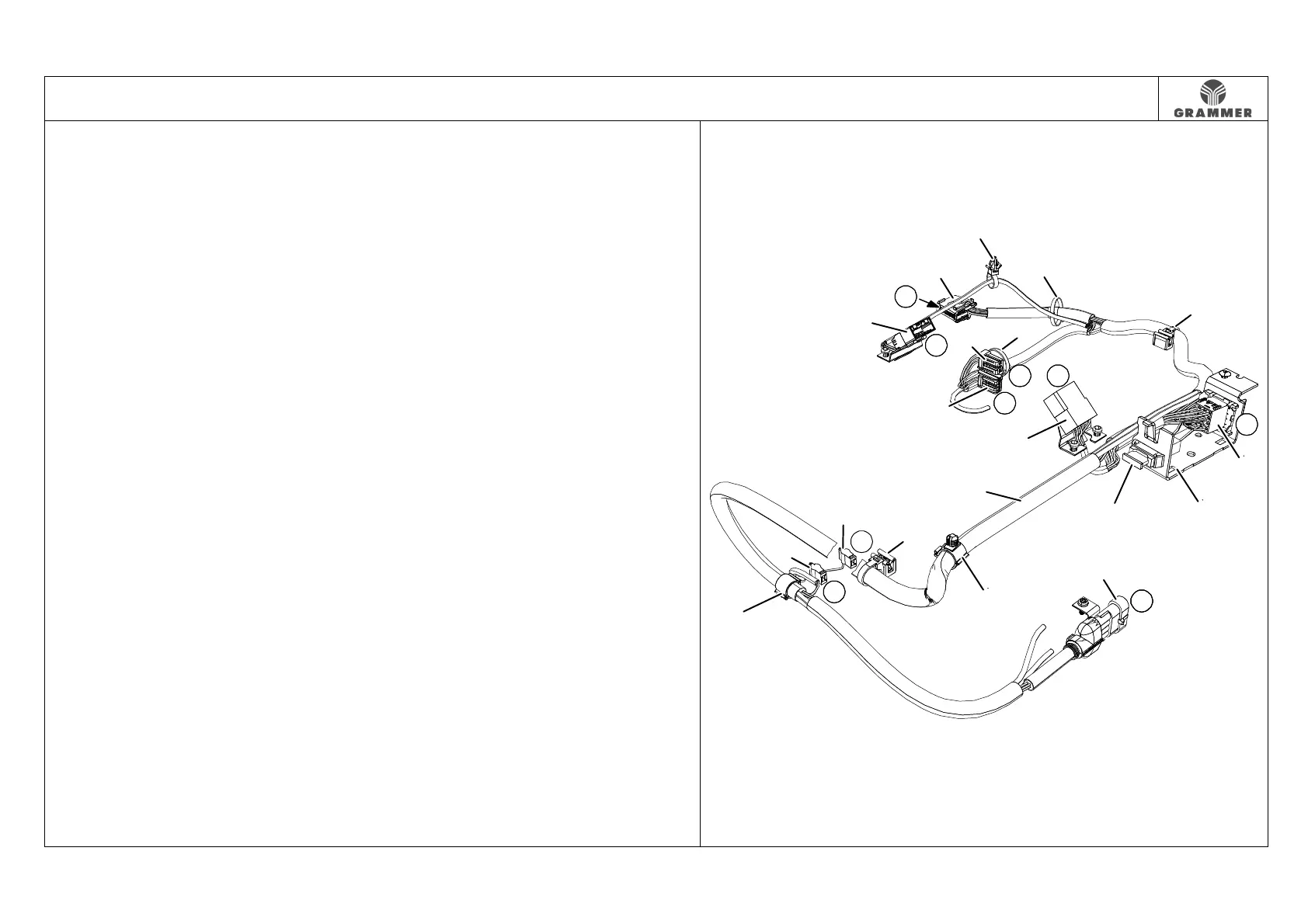

Cable harness of seat
suspension with pin assignment
(1) Cable harness for seat suspension
(2) Socket (cable harness for seat
suspension) (4-pin)
(3) Cable tie
(4) Socket (cable harness for seat
suspension) (3-pin)
(5) Plug (cable harness of seat
suspension) (6-pin)
(6) Socket of cable harness for seat
suspension (18-pin)
(7) Push mount tie with wings
(8) Cable tie with bracket
(9) Connector plug (vehicle) (12-pin)
(10) U-shaped profile
(11) Fuse (Si = 15A)
(12) Plug (cable harness of seat
suspension) (4-pin)
(13) Corrugated pipe support
(14) Right-angle plug (black cable)
(15) Right-angle plug (blue cable)
(16) Plug (cable harness of seat
suspension) (8-pin)
Electrical plug and socket connections:
(A) Electrical connection (3-pin)
between sensor module and cable
harness for seat suspension (1), see
pate 2
(B) Electrical connection (4-polig)
between electromagnet for 2/2 and
3/2 directional valve at the sensor
module and cable harness for seat
suspension (1), see page 2
(C) Electrical connection (18-pin)
between control / air reservoir and
cable harness for seat suspension
(1), see pages 2, 3, 4, 5
(F) Electrical connection (4-pin)
between cable harness for energy
bundle and cable harness for seat
suspension (1), see page 4
(G) Electrical connection between
compressor and cable harness for
seat suspension (1), see page 5
(H) Electrical connection between
compressor and cable harness for
seat suspension (1), see page 5
