2.1 Overview of components
Page 7 of 7

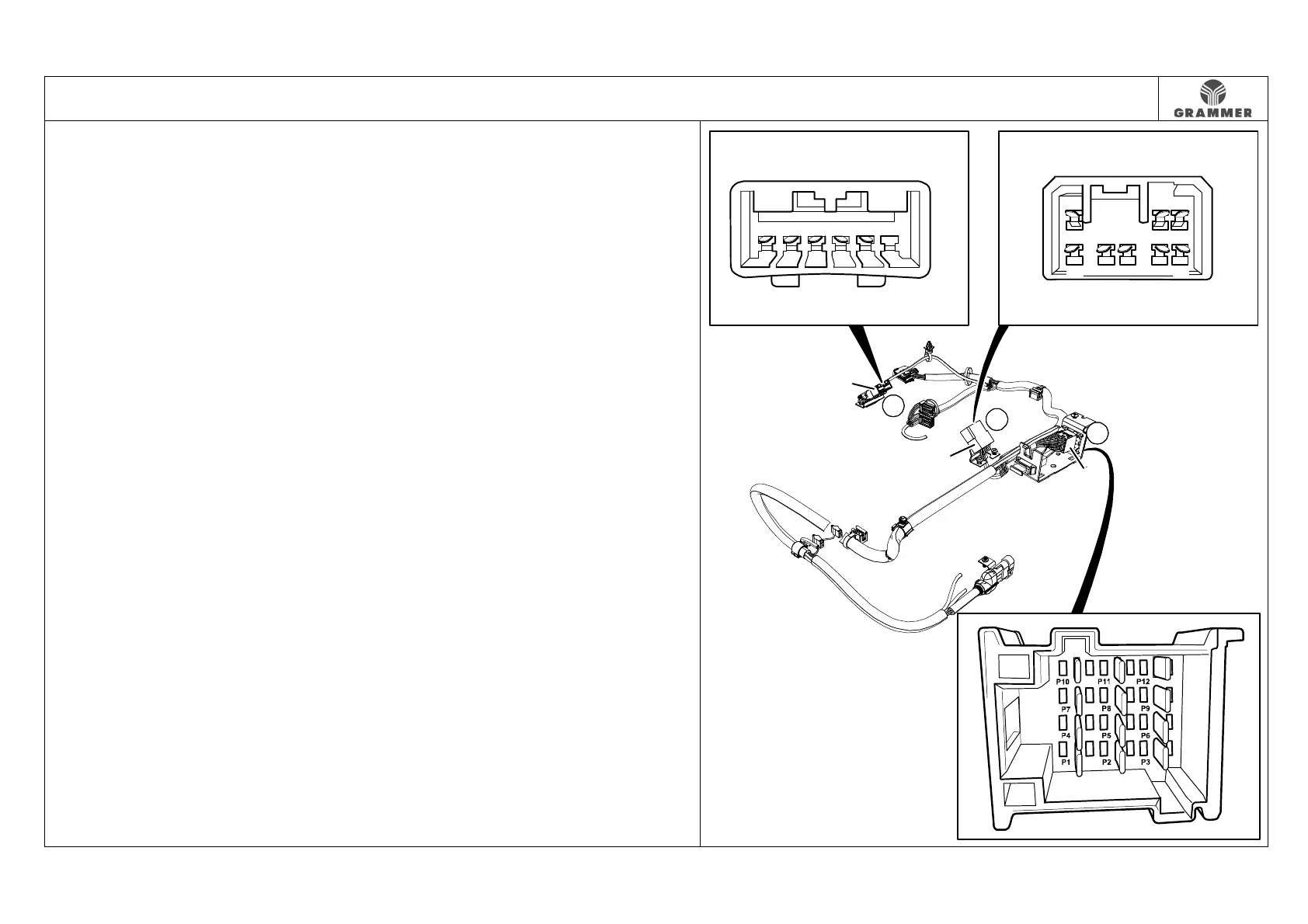

Electrical plug and socket connections:
(I) Electrical connection (6-pin)
between cable harness for seat
suspension (1) and cable harness
for upper seat part
(J) Electrical connection (8-pin)
between cable harness for seat
suspension (1) and cable harness
for upper seat part
(K) Electrical connection (12-pin)
between cable harness for seat
suspension (1) and cable harness
for vehicle connection
2858
5
9
16
I
J
K
P1P2P3P4P5P6
P4
P5
P6
P7
P8
P1P2
P3
