Repair manual GRAMMER seat suspension MSG95EAC – November 2012
Material no. 1 277 338
3.6 Longitudinal horizontal shock absorber – removal and installation
Page 1 of 1
Removal and installation
1 Remove the upper seat part at the seat
suspension and put it aside (see
Chapter 3.1).
Notes:
● Cable ties at cable harness for upper
seat part need not be removed and the
electrical connections need not be
disconnected.
● Do not overstretch the cable harness
for the upper seat part when putting it
aside.
2 Remove the top cover (see Chapter
3.2).
3 Remove the bellows from the front
upper suspension part (see Chapter
3.3).
4 WARNING Risk of crushing!
Move the seat suspension to the
highest position and secure at the back
between the swinging structure and the
lower suspension part by means of
suitable spacers.
5 Lock the fore/aft isolator.

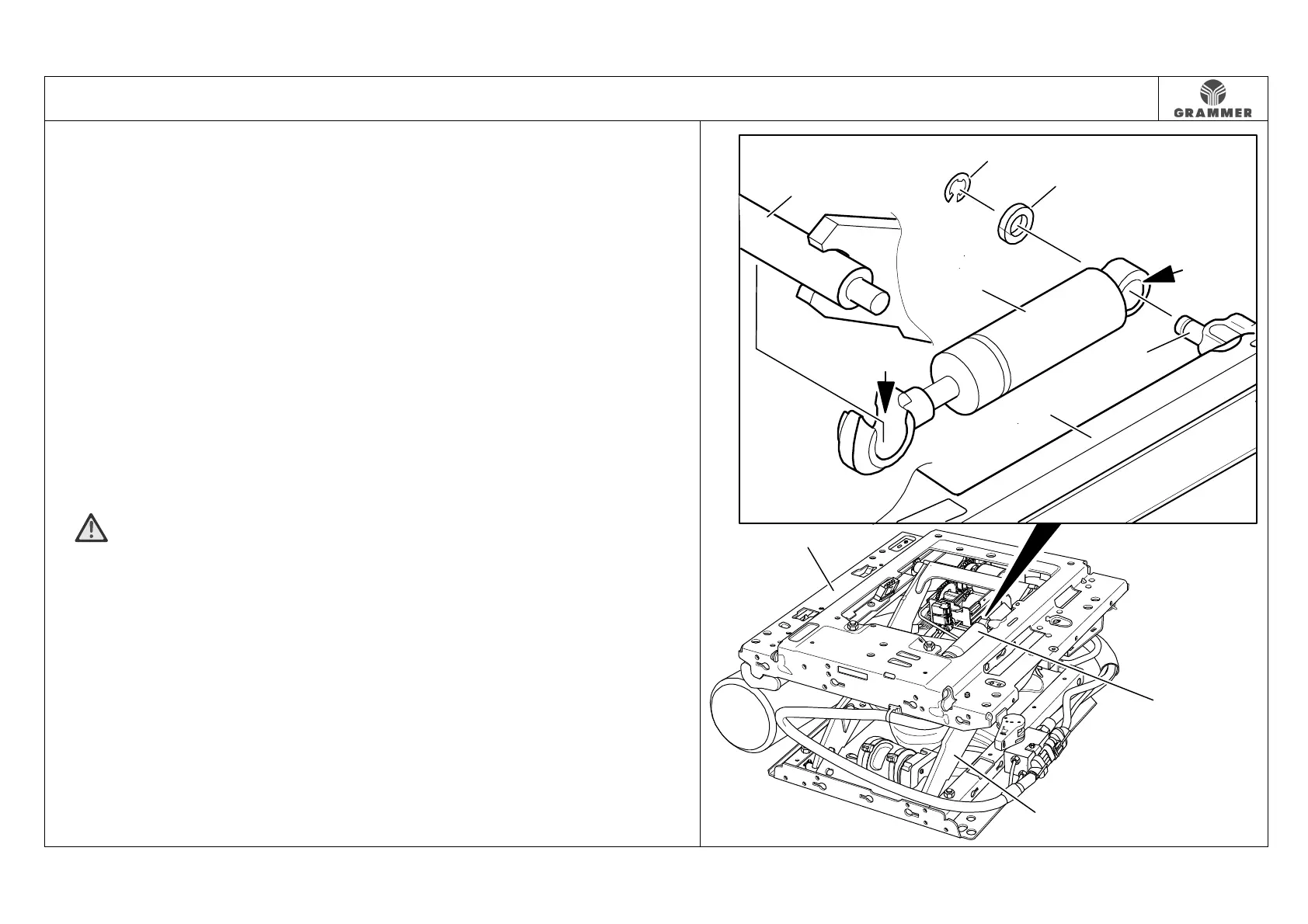

6 Lift off the longitudinal horizontal shock
absorber (1) at the tube of the swinging
structure (2).
Installation note:
Press the longitudinal horizontal shock
absorber (1) onto the tube of the
swinging structure (3) without using
driving or hammering tools.
7 Loosen the lock washer (5) at the axle
(6) and remove the washer (4).
8 Pull down the longitudinal horizontal
shock absorber (1) at the axle (6) of
the upper suspension part (3).
Installation note:
Apply acid-free multi-purpose lubricant
to the mounting surfaces (F) of the
longitudinal horizontal shock absorber
(1).
9 Re-install the components in the
reverse order of their removal.
3
1
2
F
F
1
3
4
2
5
6
