Grammer MSG95EAC - Page 40

Repair manual GRAMMER seat suspension MSG95EAC – November 2012
Material no. 1 277 338
3.5 Locking mechanism for fore/aft isolator – removal and installation
Page 2 of 2

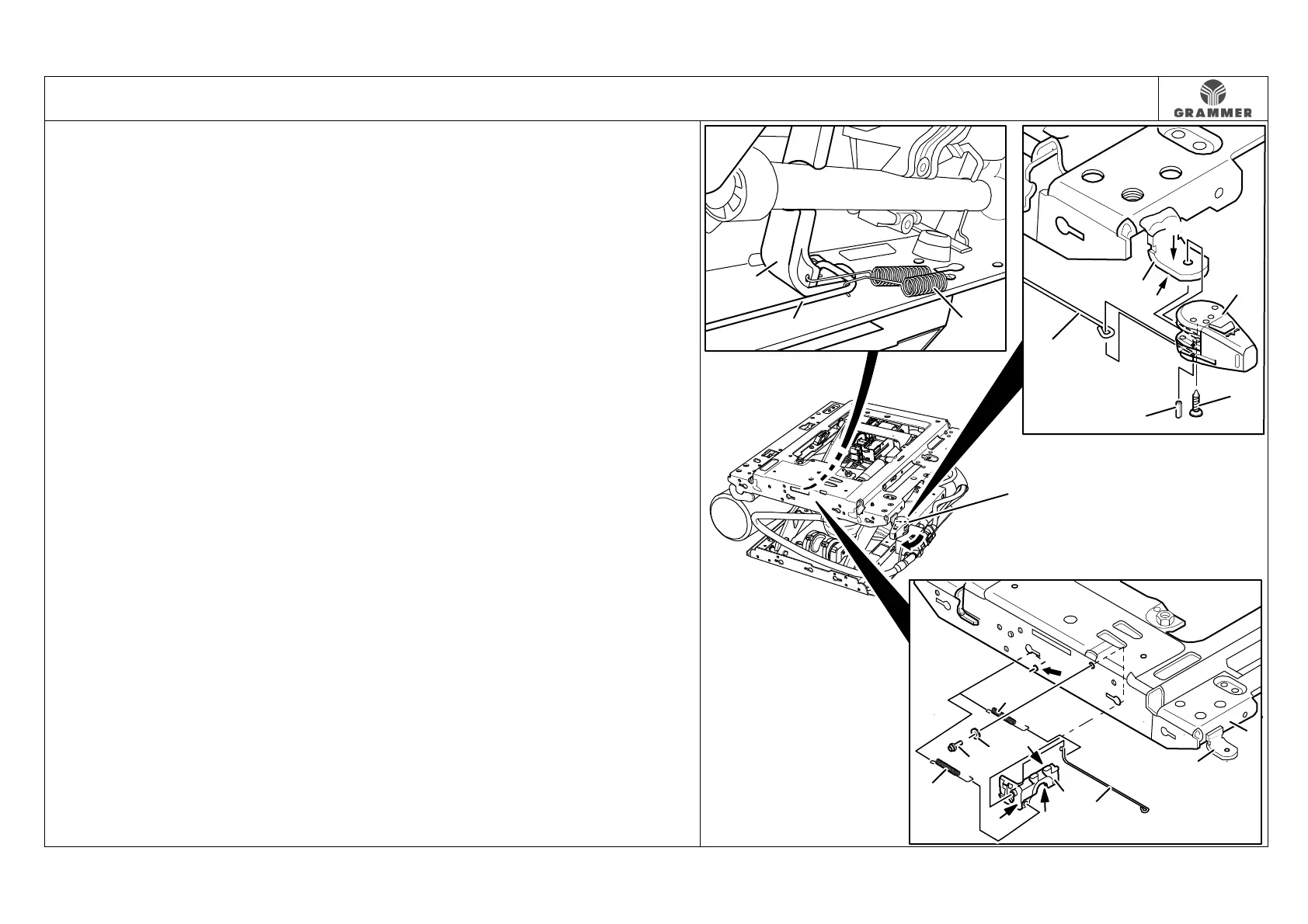

11 Detach the tension spring (5) from
the upper part of the suspension (1)
and the stop lever (4).
Installation note:
Hang in the tension spring (5)
according to the marking.
12 Unscrew the collar screw (6) and
remove the washer (7) and stop lever
(4).
Installation notes:
• Collar screw (6), 2.5 ± 0.5 Nm
• Apply acid-free multi-purpose
lubricant to the side surfaces (F) of
the stop lever (4).
13 Re-install the components in the
reverse order of their removal.
