Repair manual GRAMMER seat suspension MSG95EAC – November 2012
Material no. 1 277 338
3.7 Fore/aft isolator unit – removal and installation
Page 2 of 2

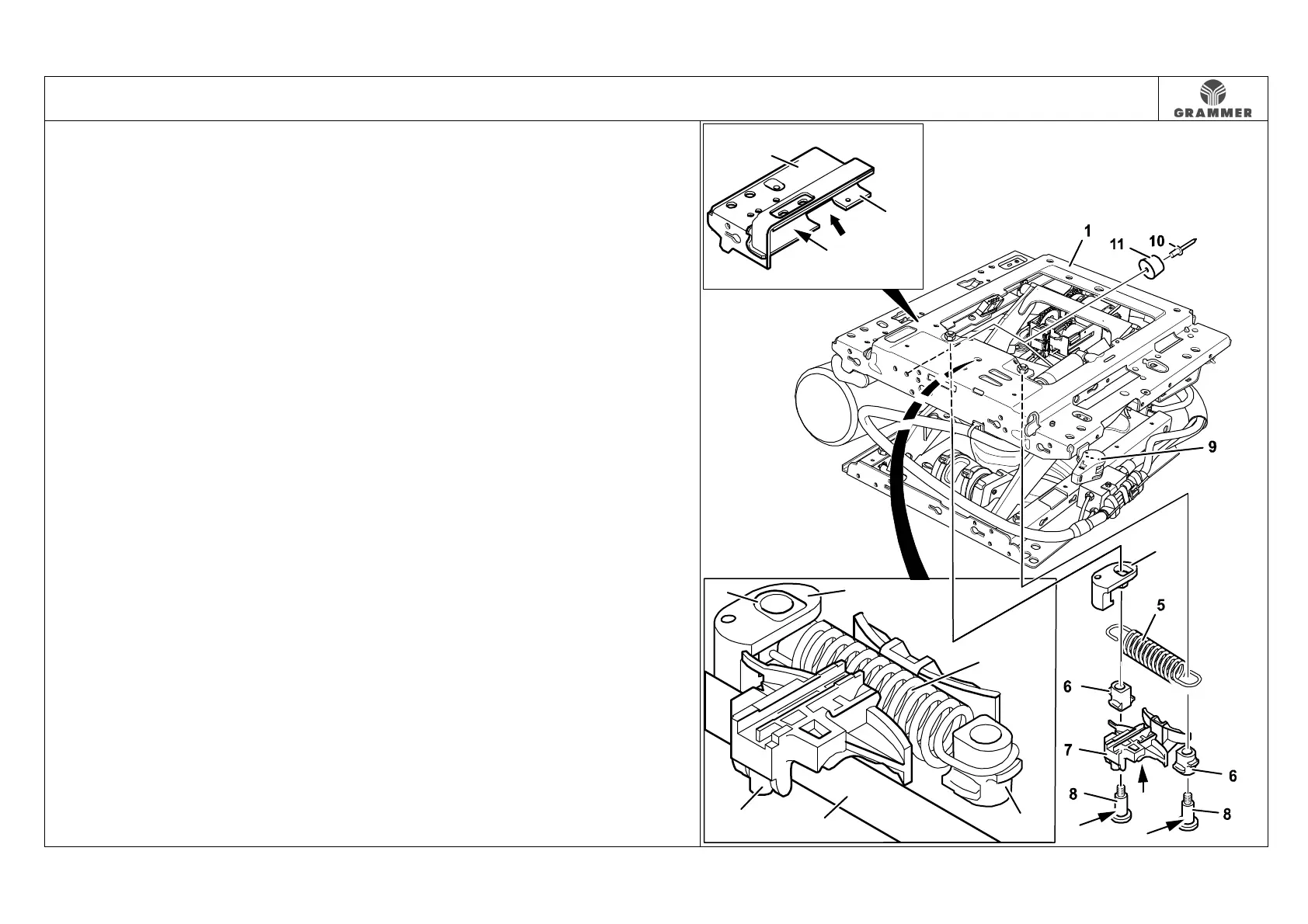

10 Lift out the upper suspension part (1)
over the front rollers and lay it to the
back.
Installation note:
Apply acid-free multi-purpose
lubricant to the side surfaces (F) of
two guiding rails (2) of the front
rollers.
11 Press the clamp (7) off at the
swinging structure (3).
Installation note:
Apply acid-free multi-purpose
lubricant to the clamp (7) on the
running surface (F) of the swinging
structure.
12 Remove the buffer (4) and two
bushings (6) from the legs of the
tension spring (5).
13 Remove the tension spring (5) from
the clamp (7).
14 Buffer (11) is defective:
Bore out the rivet head and drive out
the blind rivet (10), remove buffer
(11).
15 Re-install the components in the
reverse order of their removal.
2863
2
1
7
3
6
6
5
4
F
F
F
4
F
