Repair manual GRAMMER seat suspension MSG95EAC – November 2012
Material no. 1 277 338

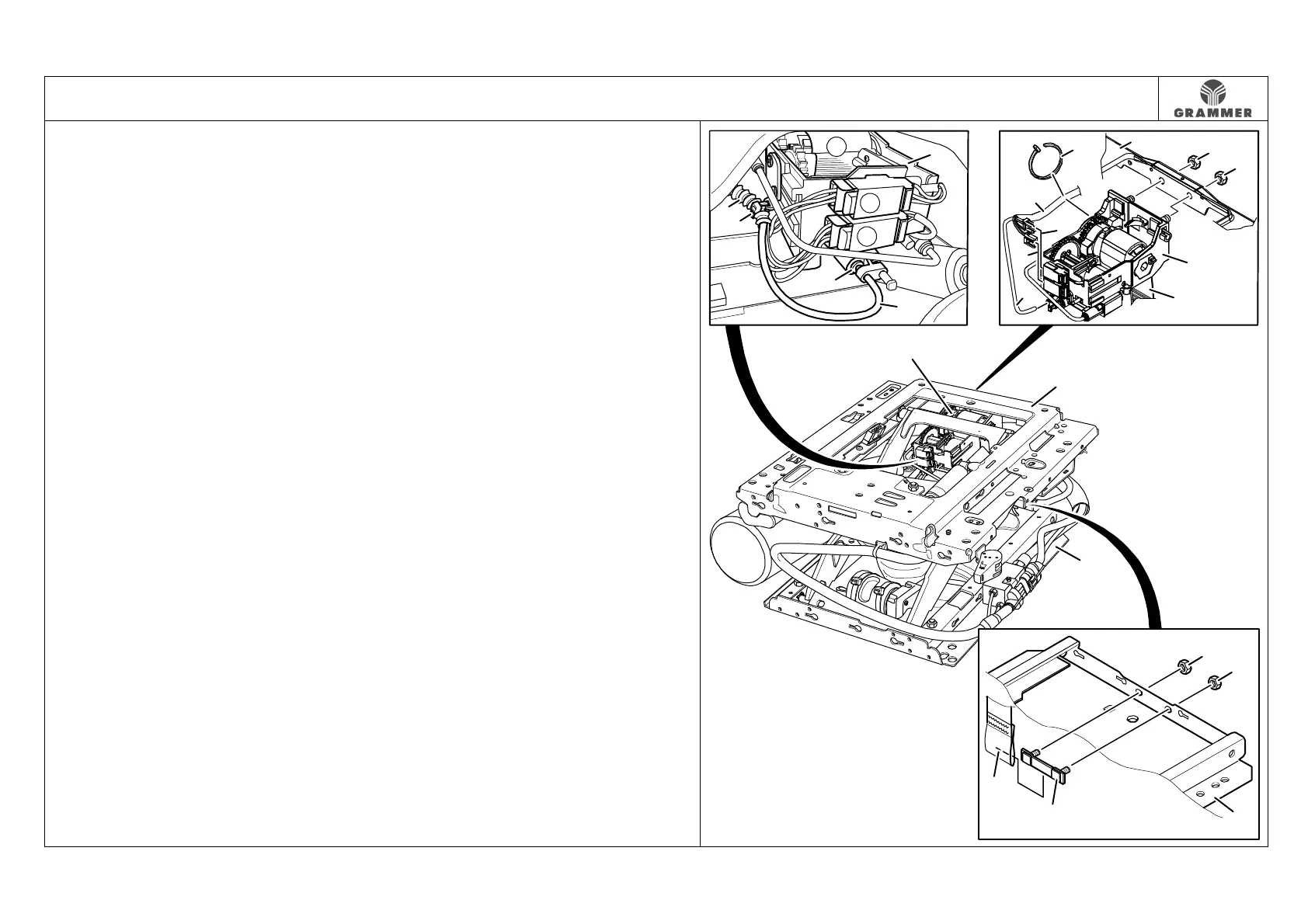

3.9 Sensor module – removal and installation
Page 2 of 2
11 Air hose (7) with scoring:
Cut off the air hose (7) with a sharp
knife in a clean and straight way
directly behind the scoring.
Notes:
• The air hose (7) can be cut off only
once.
• After cutting off, mark the air hose
(7) in order not to cut it several times.
12 Mark the point where the cable
harness of the seat suspension (5) is
fastened to the sensor module (1) by
means of a cable tie (6) and remove
the cable tie (6).
13 Disconnect the electrical connections
(A) and (B) at the sensor module (1).
14 Unscrew two hexagon nuts (4).
Installation note:
Hexagon nut (4), 25 Nm.
15 Pull out the sensor module (1) at the
upper suspension part (2) and
remove it in downward direction.
16 Re-install the components in the
reverse order of their removal.
2865
10
8
3
9
9
7
11
5
6
1
8
A
B
4
4
7
B
8
1
5
2
6
A
1
2
3
