Repair manual GRAMMER seat suspension MSG95EAC – November 2012
Material no. 1 277 338
3.16 Cable harness for seat suspension – removal and installation
Page 2 of 2

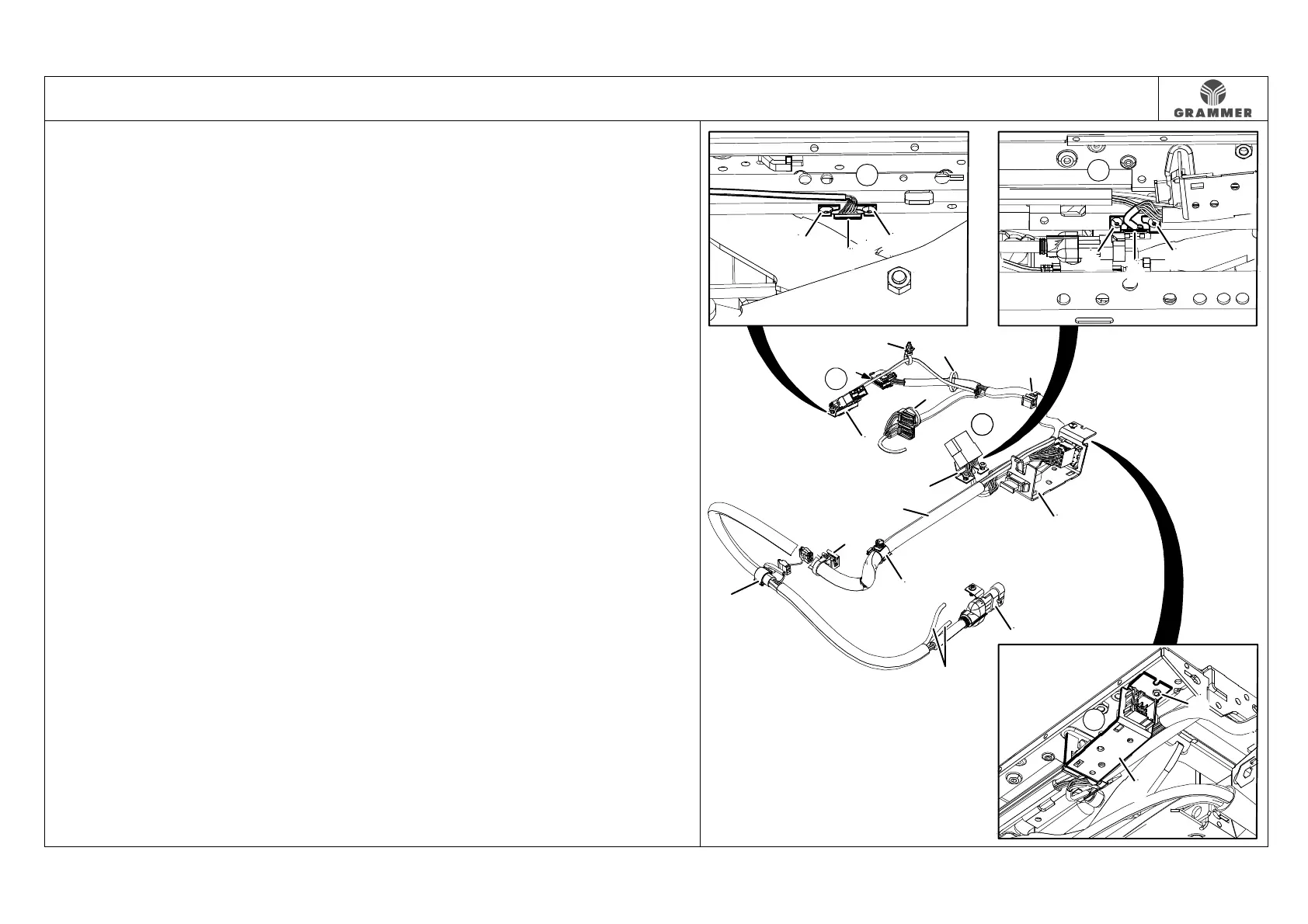

15 Mark the points where the cable
harness (1) is attached to the seat
suspension.
• 2 Corrugated pipe supports (10)
• 3 Cable tie (5)
• 2 cable ties with brackets (6)
• 1 push mount tie with wings (4)
16 Remove the corrugated pipe support
(10) and cable ties (4, 5 and 6).
17 Bore out four rivet heads (11) and
drive out the remaining blind rivets at
the holding plates (2, 3) and at the
upper suspension part (12).
18 Lay the plugs (I and J) with the angle
plates (2, 3) down.
19 Bore out the rivet head (13) and drive
out the remaining blind rivet at the U-
shaped profile (14) and at the upper
suspension part (12).
20 Detach the U-shaped profile (14) at
the upper suspension part (12) and
lay it down with the cable harness.
21 Remove the cable harness from the
seat suspension.
22 Re-install the components in the
reverse order of their removal.
2873
1
4
7
10
5
6
5
6
10
3
2
8
9
11
11
3
11
11
2
12
12
12
14
13
I
J
