Advanced Networking, Inc.’s Grandstream GXP2170 User Instructions
Page 2 of 7

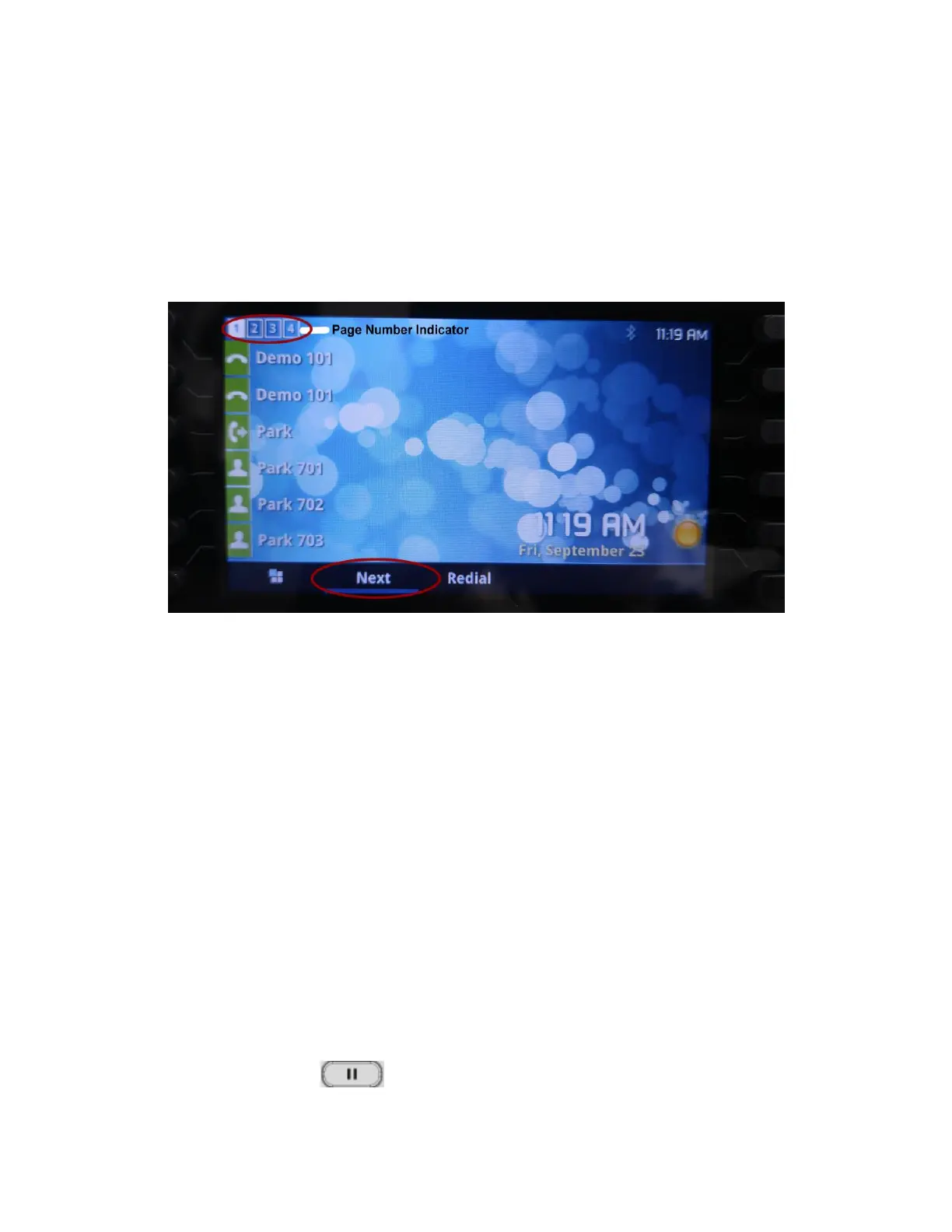

Operation of the Screen and Soft Keys
The GXP2160 has a dynamic display, which means it changes, depending on what the phone is doing at the time.
The home screen shows the lines, the parks, and the other buttons that are programmed. There can be multiple levels
to this page, which are indicated by the page numbers up in the left corner of the screen. More than one level can be
programmed to accommodate more DSS keys. To move to the next page, press the Next soft key.
TO “PAGE” AN EXTENSION (INTERCOM CALLING)
For intercom paging, press ** and then enter the extension or group number of the party or group you want to page. This
feature will call an extension or group of extensions, allowing you to speak immediately over the speaker in the telephone
without ringing the phone itself.
PARKING A CALL (SYSTEM-WIDE HOLD)
It is best to use the Park orbits when placing a call on hold for someone else.
1. While on the call, press the Park key.
2. The status of orbits 701, 702, and 703 are usually displayed on every phone.
3. One of the Park Orbit buttons will then light up, indicating where the call is Parked. .
4. To retrieve the parked call, press the red Park 70X button.
5. If the call is on Park orbit 704 or higher, the user will then have to manually dial 7XX number to retrieve the call.
PLACING A CALL ON HOLD (EXCLUSIVE HOLD)
1. While on the call, press the Hold key. This will place the call on hold on one of the Line keys.
2. If you need to place another call after you put the call on hold, you will have to hit the Line 2 key to get another line. Dial as
needed and press the Dial soft key to send the digits.
