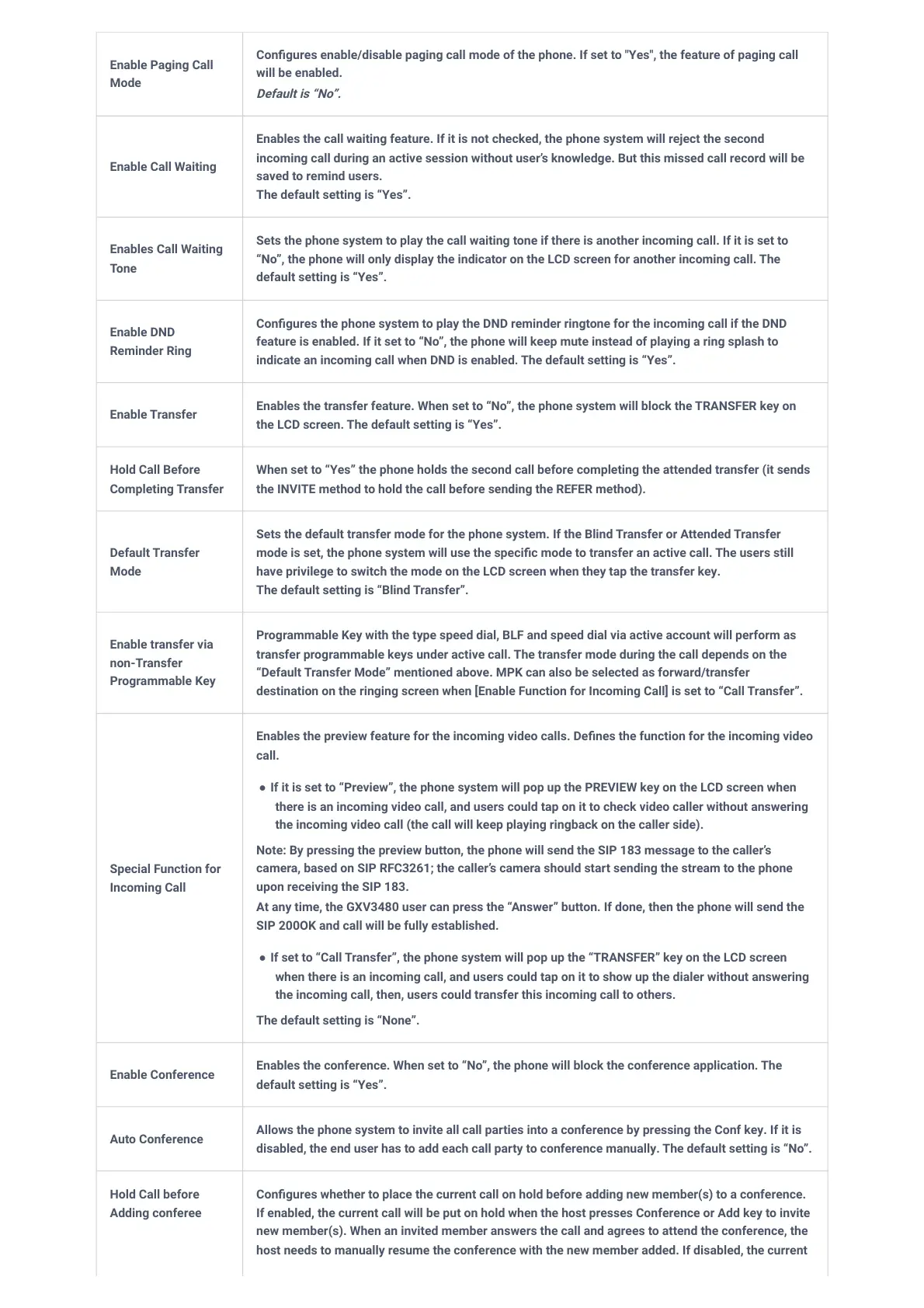

Grandstream Networks GXV34 Series Administration Guide

Enable Paging Call
Mode
Configures enable/disable paging call mode of the phone. If set to "Yes", the feature of paging call
will be enabled.
Default is “No”.
Enable Call Waiting
Enables the call waiting feature. If it is not checked, the phone system will reject the second
incoming call during an active session without user’s knowledge. But this missed call record will be
saved to remind users.
The default setting is “Yes”.
Enables Call Waiting
Tone
Sets the phone system to play the call waiting tone if there is another incoming call. If it is set to
“No”, the phone will only display the indicator on the LCD screen for another incoming call. The
default setting is “Yes”.
Enable DND
Reminder Ring
Configures the phone system to play the DND reminder ringtone for the incoming call if the DND
feature is enabled. If it set to “No”, the phone will keep mute instead of playing a ring splash to
indicate an incoming call when DND is enabled. The default setting is “Yes”.
Enable Transfer
Enables the transfer feature. When set to “No”, the phone system will block the TRANSFER key on
the LCD screen. The default setting is “Yes”.
Hold Call Before
Completing Transfer
When set to “Yes” the phone holds the second call before completing the attended transfer (it sends
the INVITE method to hold the call before sending the REFER method).
Default Transfer
Mode
Sets the default transfer mode for the phone system. If the Blind Transfer or Attended Transfer
mode is set, the phone system will use the specific mode to transfer an active call. The users still
have privilege to switch the mode on the LCD screen when they tap the transfer key.
The default setting is “Blind Transfer”.
Enable transfer via
non-Transfer
Programmable Key
Programmable Key with the type speed dial, BLF and speed dial via active account will perform as
transfer programmable keys under active call. The transfer mode during the call depends on the
“Default Transfer Mode” mentioned above. MPK can also be selected as forward/transfer
destination on the ringing screen when [Enable Function for Incoming Call] is set to “Call Transfer”.
Special Function for
Incoming Call
Enables the preview feature for the incoming video calls. Defines the function for the incoming video
call.
● If it is set to “Preview”, the phone system will pop up the PREVIEW key on the LCD screen when
there is an incoming video call, and users could tap on it to check video caller without answering
the incoming video call (the call will keep playing ringback on the caller side).
Note: By pressing the preview button, the phone will send the SIP 183 message to the caller’s
camera, based on SIP RFC3261; the caller’s camera should start sending the stream to the phone
upon receiving the SIP 183.
At any time, the GXV3480 user can press the “Answer” button. If done, then the phone will send the
SIP 200OK and call will be fully established.
● If set to “Call Transfer”, the phone system will pop up the “TRANSFER” key on the LCD screen
when there is an incoming call, and users could tap on it to show up the dialer without answering
the incoming call, then, users could transfer this incoming call to others.
The default setting is “None”.
Enable Conference
Enables the conference. When set to “No”, the phone will block the conference application. The
default setting is “Yes”.
Auto Conference
Allows the phone system to invite all call parties into a conference by pressing the Conf key. If it is
disabled, the end user has to add each call party to conference manually. The default setting is “No”.
Hold Call before
Adding conferee
Configures whether to place the current call on hold before adding new member(s) to a conference.
If enabled, the current call will be put on hold when the host presses Conference or Add key to invite
new member(s). When an invited member answers the call and agrees to attend the conference, the
host needs to manually resume the conference with the new member added. If disabled, the current
