Grandstream Networks GXV3611 User Manual

GXV3611 Mini IP Dome Camera
Firmware 1.0.4.6 Page 28 of 34
Grandstream Networks, Inc. 09/2010

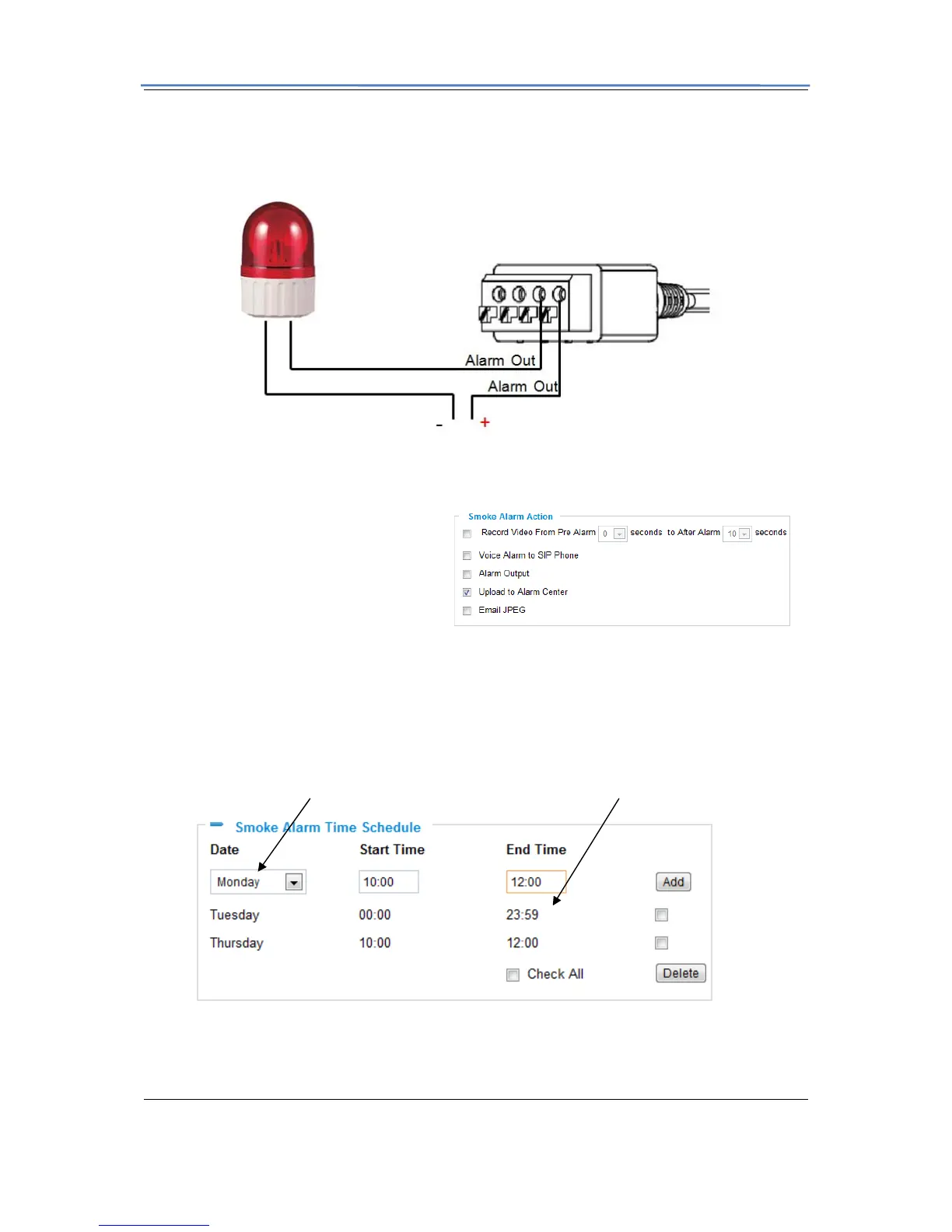

How to connect an Alarm Output Equipment to GXV3611
Here is a sample connection diagram. Connect the alarm output equipment to the GXV3611
by following the diagram below.
Set up Smoke Alarm Action
The smoke alarm action is what the GXV3611 is going to do when build in smoke detector is
triggered during the defined time period –
the time schedule. The GXV3611 allows
multiple alarm actions.
Set up Smoke Alarm Time Schedule
This section allows you to configure the time during which the GXV3611 will monitor the
Smoke Alarm Input. The GXV3611 not only can monitor your settings but also can take
actions when the alarm is triggered.
Available time
schedules
Dropdown list for date
