Grandstream Networks GXV3611 User Manual

GXV3611 Mini IP Dome Camera
Firmware 1.0.4.6 Page 9 of 34
Grandstream Networks, Inc. 09/2010

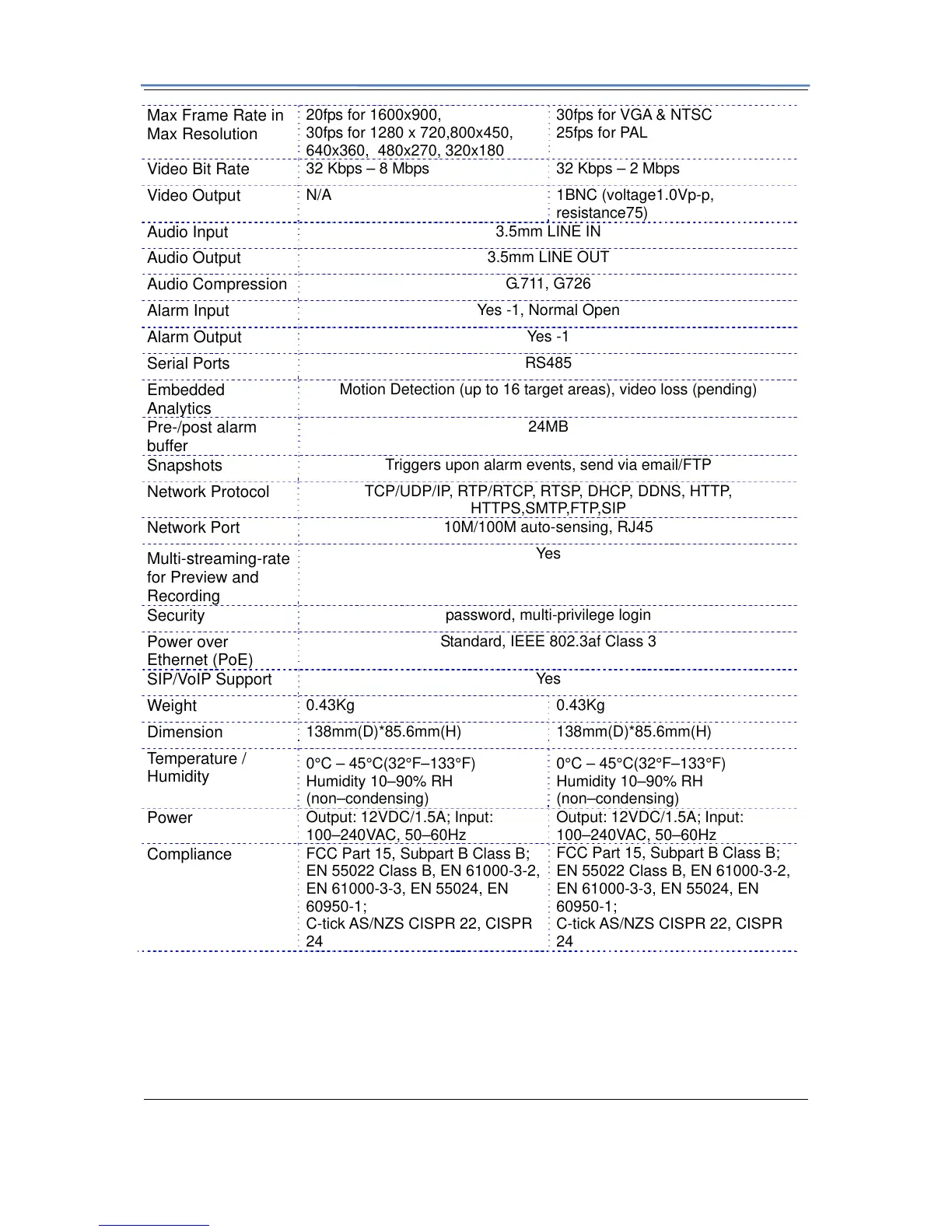

Max Frame Rate in
Max Resolution
20fps for 1600x900,
30fps for 1280 x 720,800x450,
640x360, 480x270, 320x180
30fps for VGA & NTSC
25fps for PAL
Video Bit Rate
32 Kbps – 8 Mbps 32 Kbps – 2 Mbps
Video Output
N/A 1BNC (voltage1.0Vp-p,
resistance75)
Audio Input
3.5mm LINE IN
Audio Output
3.5mm LINE OUT
Audio Compression
G.711, G726
Alarm Input
Yes -1, Normal Open
Alarm Output
Yes -1
Serial Ports
RS485
Embedded
Analytics
Motion Detection (up to 16 target areas), video loss (pending)
Pre-/post alarm
buffer
24MB
Snapshots
Triggers upon alarm events, send via email/FTP
Network Protocol
TCP/UDP/IP, RTP/RTCP, RTSP, DHCP, DDNS, HTTP,
HTTPS,SMTP,FTP,SIP
Network Port
10M/100M auto-sensing, RJ45
Multi-streaming-rate
for Preview and
Recording
Yes
Security
password, multi-privilege login
Power over
Ethernet (PoE)
Standard, IEEE 802.3af Class 3
SIP/VoIP Support
Yes
Weight
0.43Kg 0.43Kg
Dimension
138mm(D)*85.6mm(H) 138mm(D)*85.6mm(H)
Temperature /
Humidity
0°C – 45°C(32°F–133°F)
Humidity 10–90% RH
(non–condensing)
0°C – 45°C(32°F–133°F)
Humidity 10–90% RH
(non–condensing)
Power
Output: 12VDC/1.5A; Input:
100–240VAC, 50–60Hz
Output: 12VDC/1.5A; Input:
100–240VAC, 50–60Hz
Compliance
FCC Part 15, Subpart B Class B;
EN 55022 Class B, EN 61000-3-2,
EN 61000-3-3, EN 55024, EN
60950-1;
C-tick AS/NZS CISPR 22, CISPR
24
FCC Part 15, Subpart B Class B;
EN 55022 Class B, EN 61000-3-2,
EN 61000-3-3, EN 55024, EN
60950-1;
C-tick AS/NZS CISPR 22, CISPR
24

Grandstream Networks GXV3611 Specifications

General

Brand	Grandstream Networks
Model	GXV3611
Category	IP Camera
Language	English
