FIRMWARE VERSION 1.0.0.5 HT802 USER MANUAL Page 9 of 46
TABLE 1: DEFINISIONS OF THE HT802 CONNECTORS
Power
Micro USB 5V 1A
Internet Port (RJ-45)
Connect to network.
RESET
Factory Reset button: Press for 7 seconds to reset factory default settings.
Telephone Ports (RJ-11)
Used to connect to analog phones / fax machines.
There are four (4) LED buttons that help you manage the status of your HandyTone 802.
TABLE 2: BASIC DEFINITIONS OF THE HT802 LEDS PATTERN
POWER LED
Indicates Power. Remains ON when power is connected
Internet LED
Indicates Access to Internet. Remains ON while there is Access
PHONE LED 1&2
Indicate status of the respective FXS Ports-PHONE on the back panel
Unregistered – OFF
Registered and Available – ON (Solid Green)
Off-Hook / Busy – Blinking every second
Slow blinking FXS LEDs indicates voicemail
NOTE: All LEDs turns blue when ON

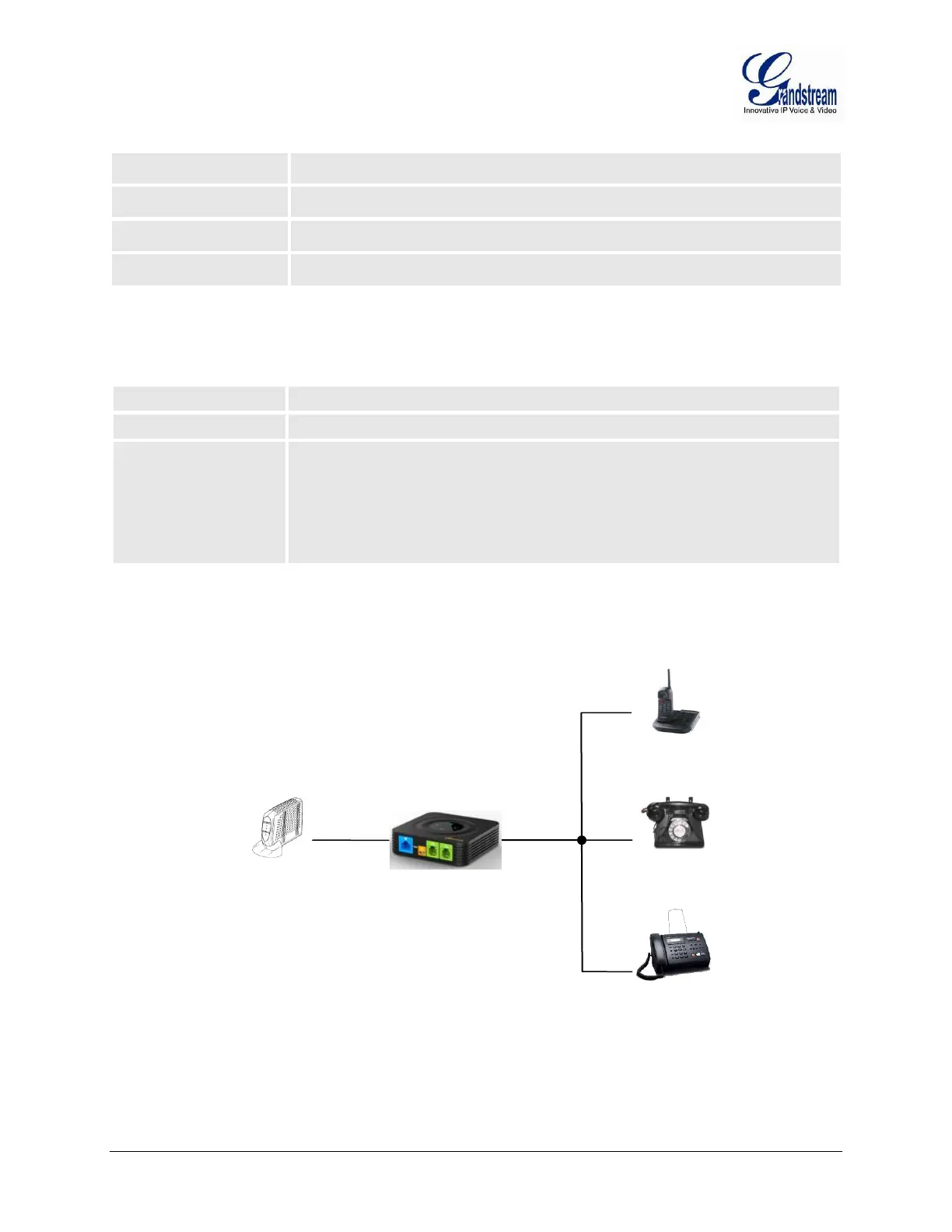

FIGURE 2: HT802 CONNECTION DIAGRAM
Internet
ADSL/Cable
Modem Ethernet
LAN
FXS
Fax
Cordless
Phone
Analog
Phone
HT802
