6 In-Roof System Installation
30
In-Roof System
Installation

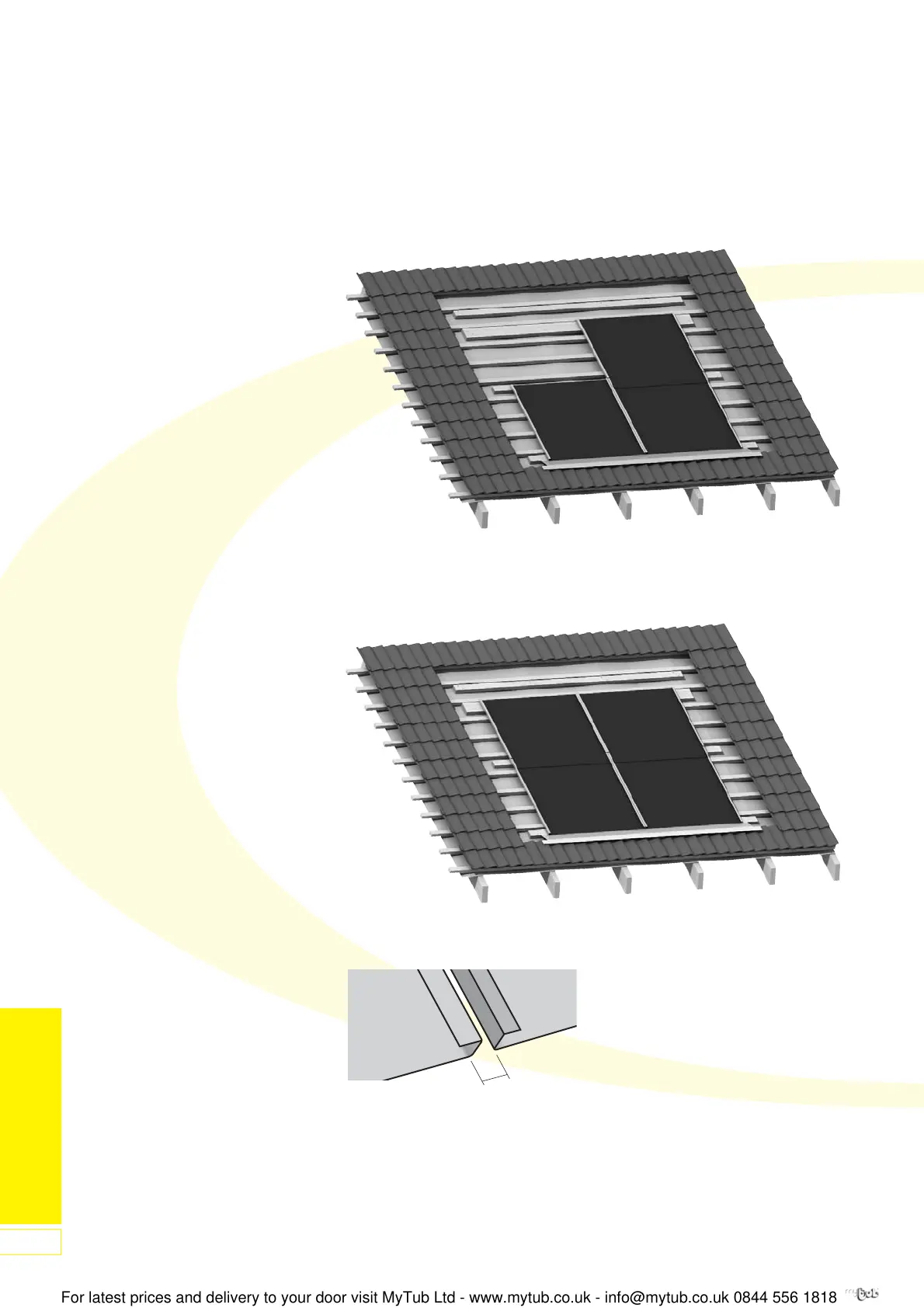

Figure 57b: Installation of Second Base Tray
Figure 57a: Installation of First Base Tray
4. Fit second lower base tray. As with
first lower base tray, position it with
the lower edge along the fold line of
the bottom flashing. Ensure gap
between trays does not exceed 4
mm – see Figure 57c. Fix to lower
middle batten as before using a
single screw – see Figure 57a.
Fit second upper base tray –
locating it into top of lower tray and
fixing to upper middle batten using
one of the self-drilling sealing
screws provided in the installation
kit at the centre of the upper edge –
see Figure 57b.
For installations using more than
two collectors, repeat the above
procedure to fit further lower and
upper base trays as necessary.
Figure 57c: Maximum Gap Between
Base Trays
0 - 4mm
