6 In-Roof System Installation
32
In-Roof System
Installation

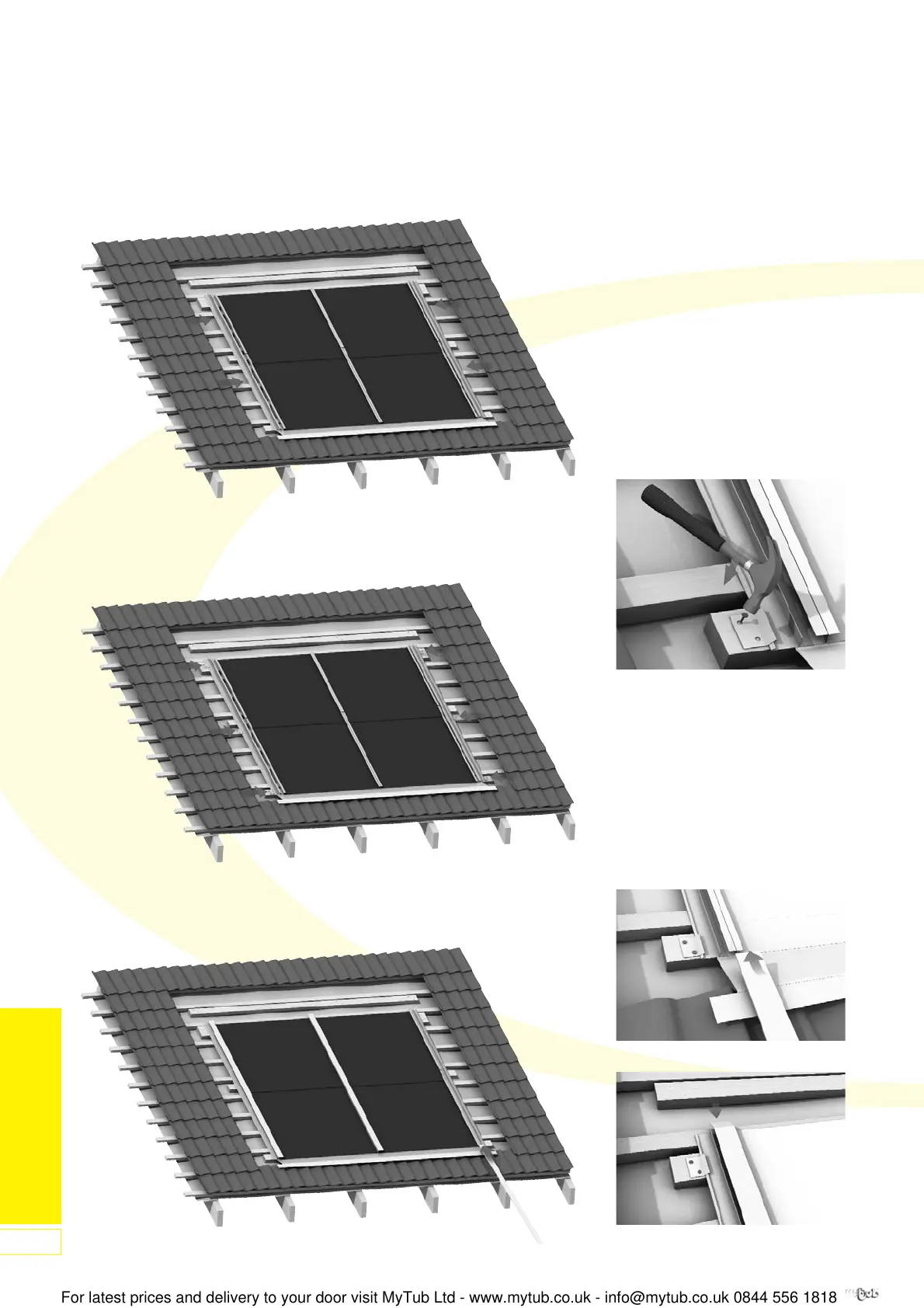

Figure 60: Installation of Side Gutter
Figure 61: Location of Clips on Side Gutters
Figure 62: Fitting of Cover Strips
Figure 63: Securing Side Gutter Clips
Figure 64: Installation of Cover Sheets
Figure 65: Installation of Cover Sheets
For either ‘Portrait’ or ‘Landscape’
installation continue as follows:
7. Fit side gutter (09). Position side
gutters against side of base tray
with bottom edge along fold line of
bottom flashing. Ensure that outer
edges of each side gutter is located
INSIDE the return edge on the
bottom flashing.
8. Secure side gutters in place using
the clips provided. Hook the clips
over the outer edge of the side
gutters and fix to battens using the
nails provided.
9. Fit cover strip on the joint between
the base tray and side gutter. Fit the
end of the strip onto the two outward
facing flanges - see Figure 64. Slide
cover strip up the full length of the
joint. Finally fold over at both ends of
cover strip to secure - see Figure 65.
Repeat to fit cover strips on the other
side gutter and on all joints between
the base trays.
