Solar Pump Station

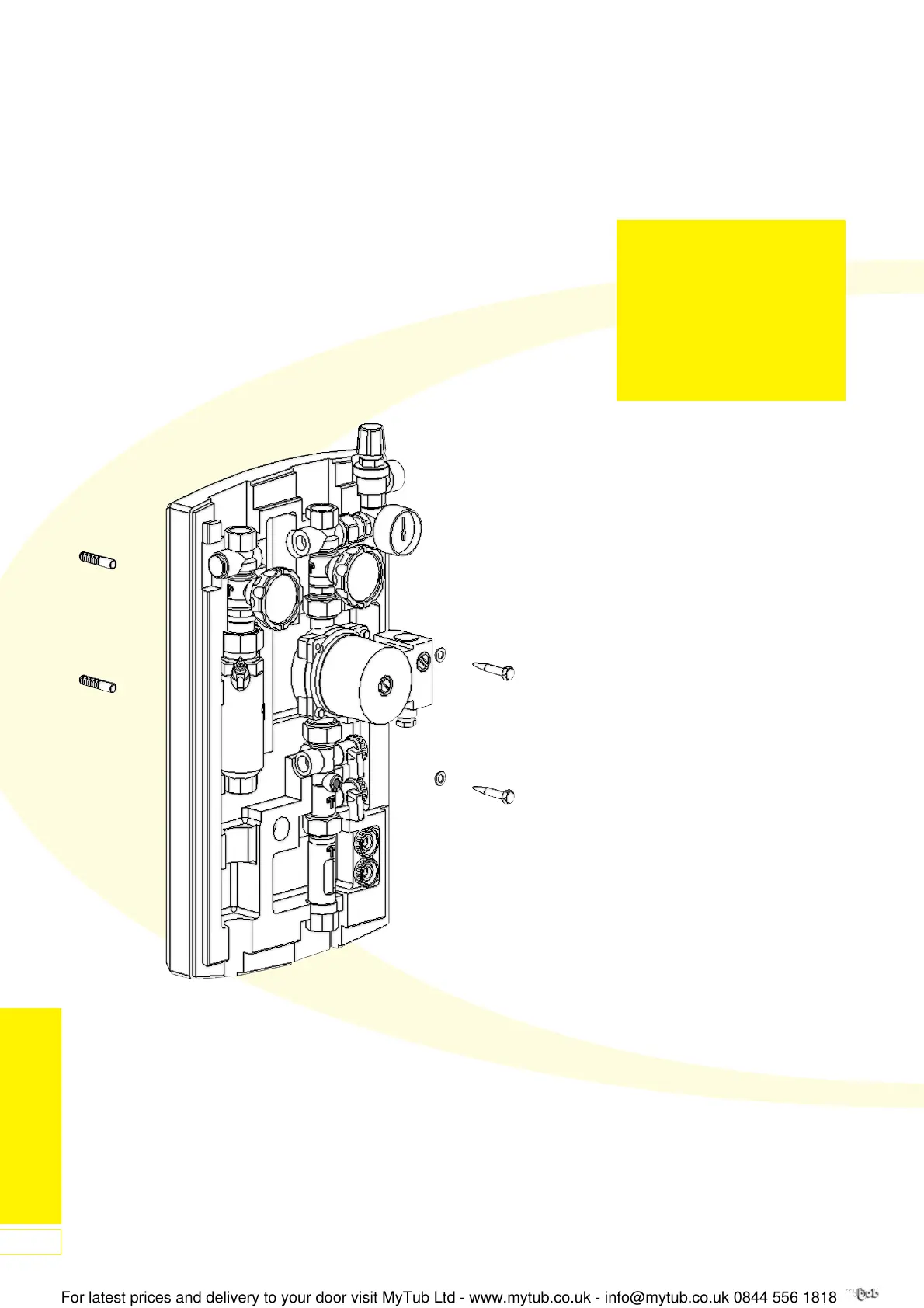

Figure 116: Wall Mounting Fixings
Connectors
A submersible sleeve with a G
1
/
2
” outer
thread can be screwed into the ball
valve (Figure 109, item 51) to enable a
temperature sensor to be added.
Wall Mounting
• Drill 2 anchor point holes Ø 10mm,
insert anchors
• Screw the entire solar station with
the accompanying plates and
screws to the wall through the rear
insulation jacket
Important:
The solar pump station must only be
installed vertically as shown.
Note: These Instructions are to be left with the
Solar System Operator/Building Owner
13 Solar Pump Station
Important:
All system pipe connections must
use compression fittings with
brass olives. Soft soldered joints
must NOT be used on the solar
primary circuit.
Plastic pipe must NOT be used
for any part of the solar primary
circuit.
