DP307 PROCESSOR PCB DP307 PROCESSOR PCB
16551 iss 1016551 iss 10
11

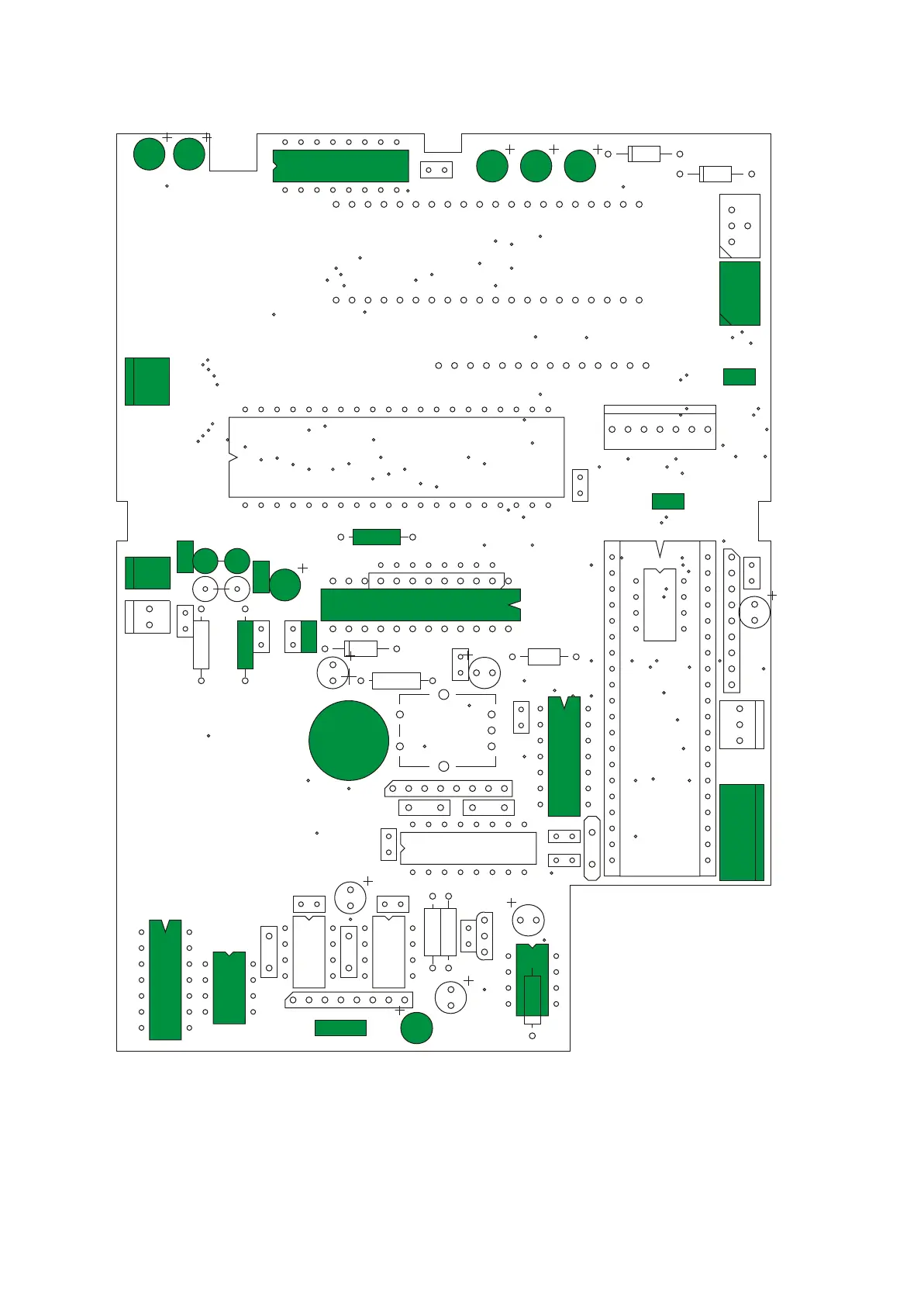

Fig 4 Component Layout for Display PCB
THESE COMPONENTS NOT FITTED
GD100/GD120
Part No. 17592/Issue 1 July 2002
Page 22
