Grant Vortex Combi 36 - Wiring Diagrams; External Timer Connection; Grant Remote Programmer Connection; Grant Programmable Room Thermostat

51
Combi V3, Combi Max and Vortex Combi models
12 - WIRING DIAGRAMS

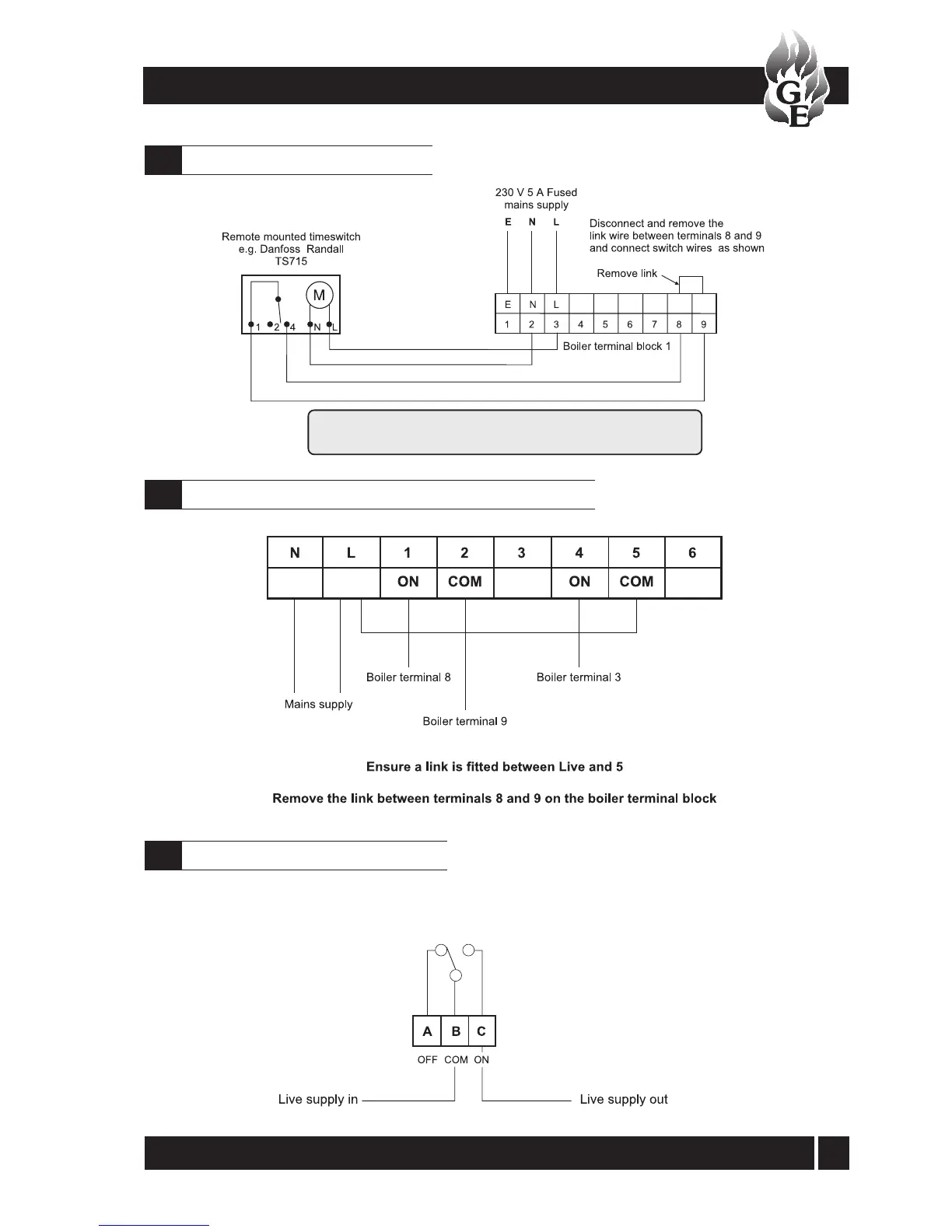

Typical connection of external timer
12.5
Important: If a remote timer is used, it must be a single channel
230V unit incorporating voltage free output contacts.
Connection of Grant remote wall mounted mini programmer
12.6
Grant programmable room thermostat
12.7
A programmable room thermostat - Part No. RSKIT is available from Grant UK. The thermostat has a 5/2 day
operation and enables six time and temperature changes each day. The thermostat incorporates frost protection and an
On/Off facility.
