Spare Parts
43
Key Description Riello Grant Key Description Riello Grant
No. Part No. Part No. No. Part No. Part No.
1 Not applicable 15 Regulator 3008651 RBS120
2 Flange 3005786 RBS28 16 Pump seal 3000439 RBS14
3 Combustion head T1 17 Pump 3008654 RBS101
(Combi 21e) 3002507 RBS146
3 Combustion head T2 18 ‘O’ ring 3007162 RBS08
(Combi 26e) 3002423 RBS147
3 Combustion head T5 19 Filter - ‘O’ ring 3008653 RBS122
(Combi 36e) 3002533 RBS150
4 Electrode assembly 3007513 RBS108 20 Connector 3003602 RBS35
5 Electrode bracket 3006552 RBS29 21 Flexible hose 3007672 RBS36
6 Nozzle holder 3008642 RBS111 22 Tube 3008644 RBS113
7 Collar 3008643 RBS112 23 Pressure gauge connector 3008876 RBS138
8 High voltage lead 3008794 RBS129 24 Drive coupling 3000443 RBS16
9 Air damper assembly 3008647 RBS116 25 Solenoid 3008648 RBS117
10 Fan (Combi 26e) 3005708 RBS39 26 Motor RBS102 3002836 RBS102
10 Fan (Combi 21e/36e) 3005788 RBS151 27 Cover 3008649 RBS118
11 Photocell 3008646 RBS115 28 Control box assembly 3008652 RBS103
12 Capacitor 4.5µF 3002837 RBS149 29 Solenoid lead 3008851 RBS139
13 Seal kit 3008878 RBS140 30 Cover 3008879 RBS141
14 Needle valve 3007582 RBS109 31 Air tube spigot 3062774 RBS143

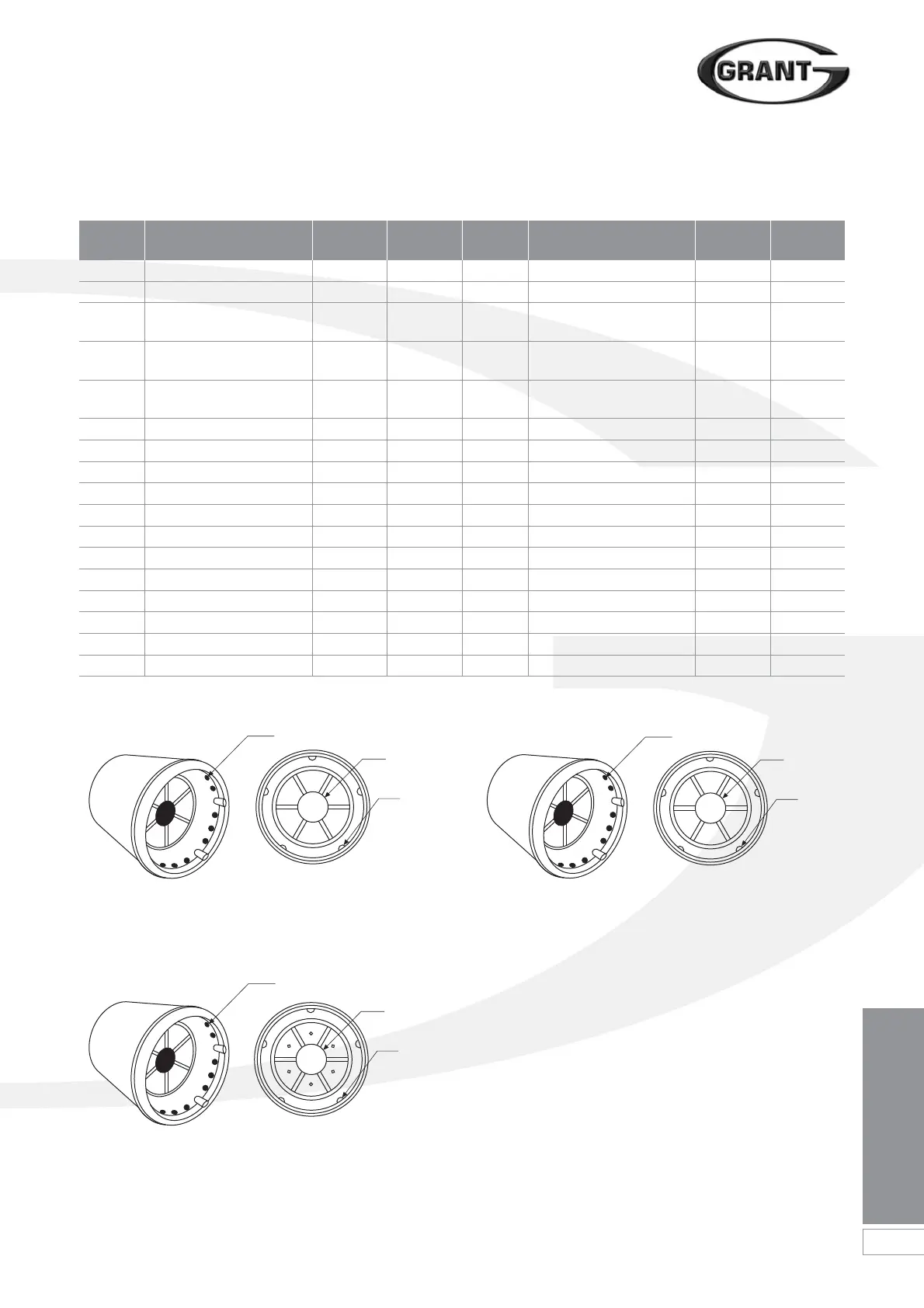

Figure 13-2 T1: Combustion head Vortex Pro Combi 21e Figure 13-3 T2: Combustion head Vortex Pro Combi 26e
Figure 13-4 T5: Combustion head Vortex Pro Combi 36e
15 x 4dia
18dia
5 x R3
15 x 5.5dia
23dia
5 x R5
15 x 4dia
20dia
5 x R5
