Grasshopper 126V/61R - Blade Spindle Assembly

64

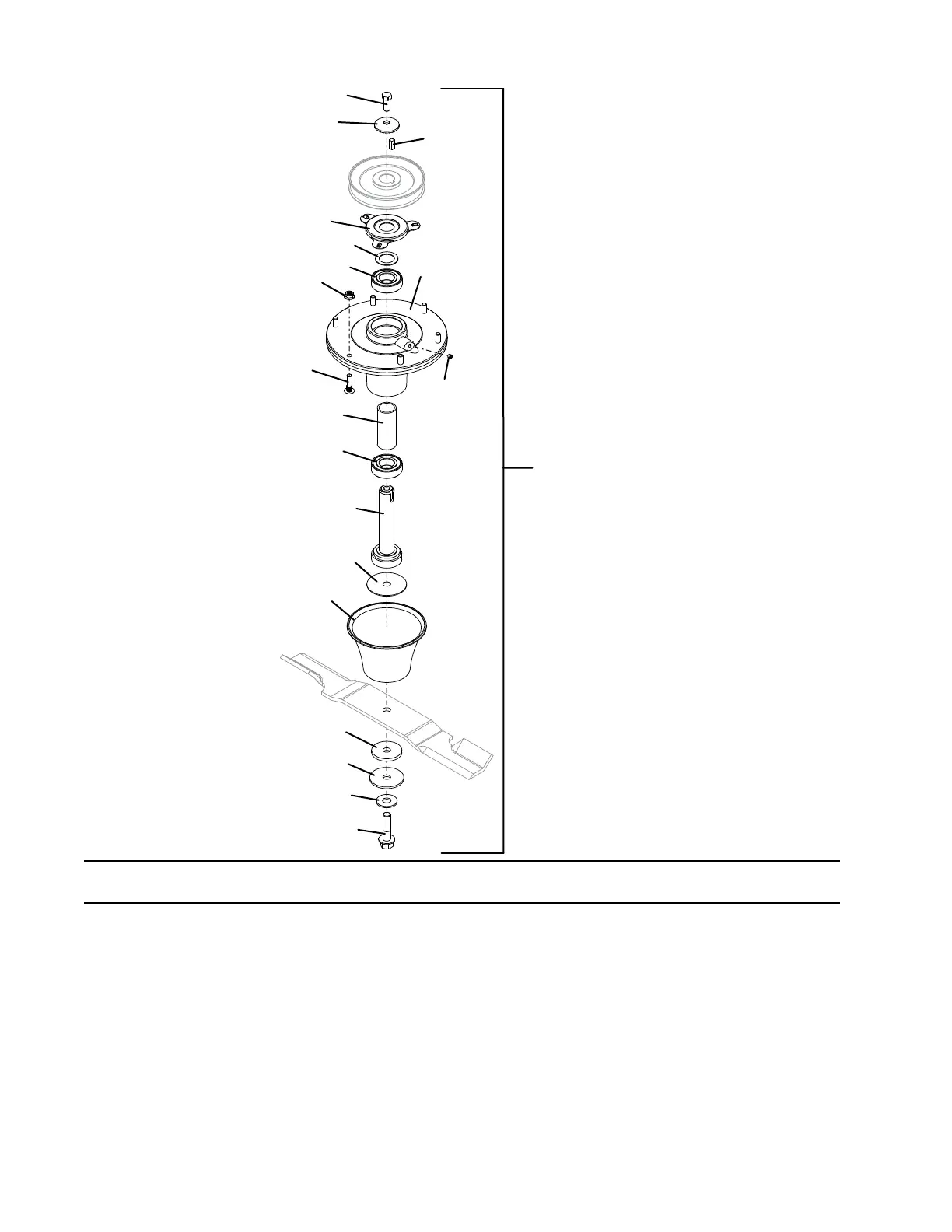

BLADE SPINDLE ASSEMBLY
Item Order Description
No. No.
Item Order Description
No. No.
02-10115A
Rev. 02-18
1 623750 Blade Spindle Assembly
(includes items 2-18)
2 243331 Bolt .375-24 x 1
3 257041 Cupped Washer
4 721167 Bearing Shield
5 257106 Washer 1 x 18 Ga.
6 110081 Ball Bearing 25 mm – Double Seal
7 604413 Spindle Housing
(includes item 9)
8 253035 Whiz Nut .312-18
9 247141 Stud Bolt .312-18 x 1.25
10 259305 Set Screw .25-28 x 1.25 Nylon
11 903643 Bearing Spacer
12 604775 Spindle Shaft Assembly 5.75
13 257055 Washer .510 x 2.675 x 10 Ga.
14 423680 Defl ector Cone
15 421200 Fiber Washer
16 257061 Flat Washer
17 257057 Washer .5 – Hardened
18 243583 Bolt .5-20 x 2 Grade 8
19 281580 Square Key .25 x .690
1
2
3
4
5
6
7
8
9
10
11
6
12
13
15
17
18
19
16
14
10115A
