Grasshopper 126V/61R - Discharge Spindle Assembly

65

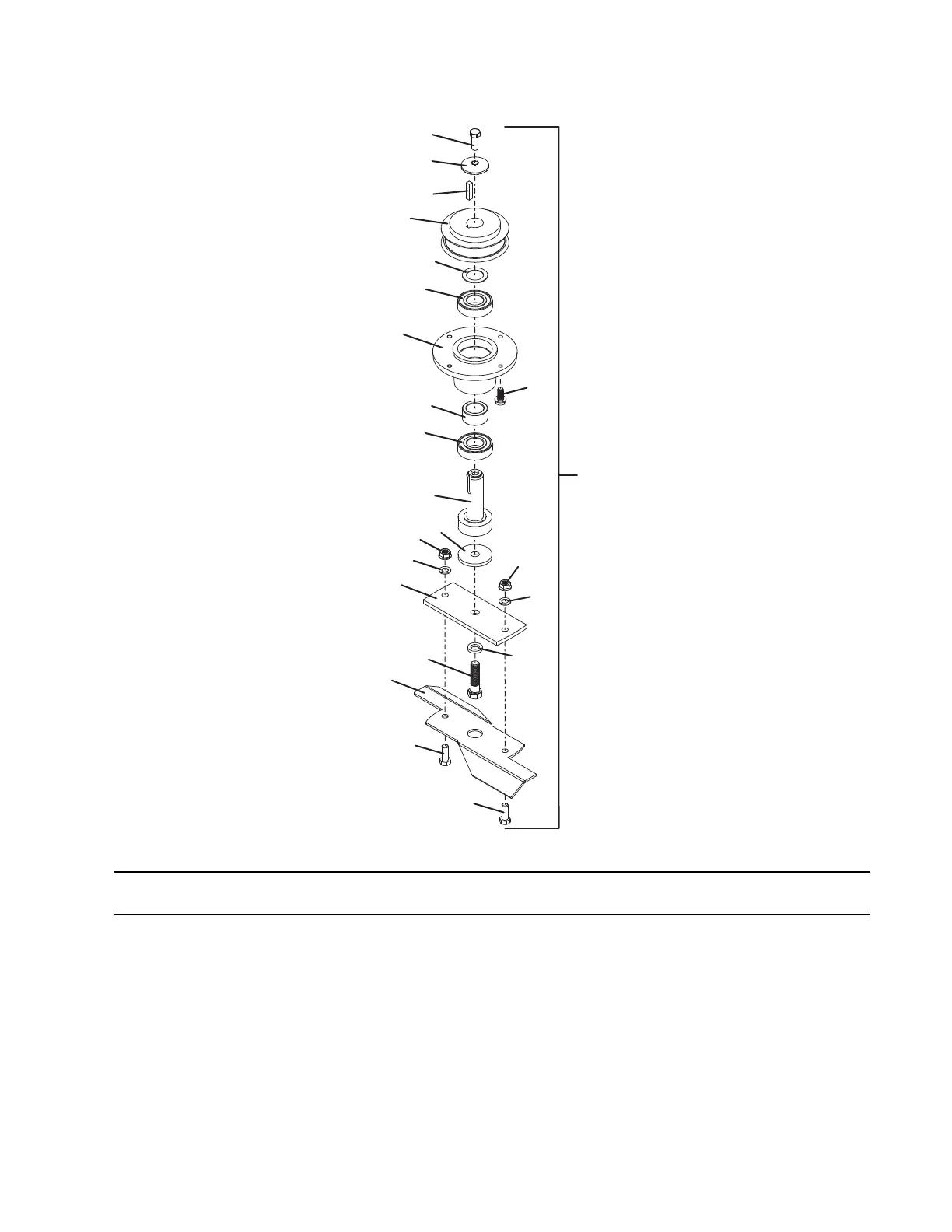

DISCHARGE SPINDLE ASSEMBLY
Item Order Description
No. No.
Item Order Description
No. No.
1 623746 Discharge Spindle Assembly
(includes items 2-19)
2 320520 Spindle Housing
3 110081 Ball Bearing 25 mm – Double Seal
4 282630 Bearing Spacer
5 605774 Spindle Assembly Left Hand
6 257106 Washer 1 x 18 Ga.
7 257041 Cupped Washer
8 243331 Bolt .375-24 x 1
9 421200 Fiber Washer
10 776151 Mount – Blade CCW
11 243582 Bolt .5-13 x 2 Left Hand
12 766026 Grass Thrower
13 243330 Bolt .375-16 x 1
14 257412 Lock Washer .375-16
15 281586 Square Key .25 x 1.125
16 415010 Sheave
17 253191 Whiz Bolt .312-18 x .625
18 253044 Flange Nut .375-16 Spiral Lock
19 882009 Washer .875 x .511 x .150
