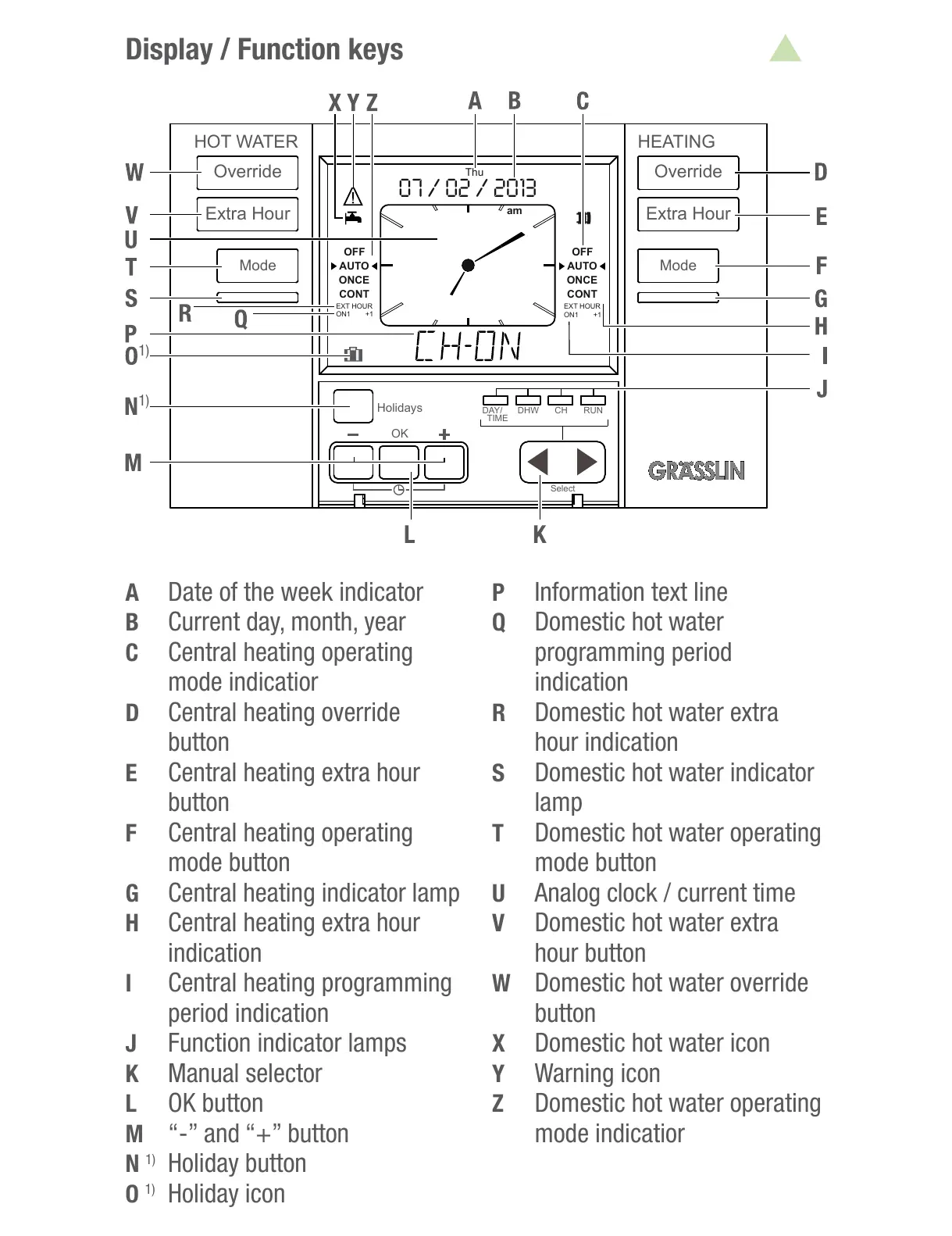

Grasslin QEG-2 - Display and Function Key Guide

Display / Function keys
A Date of the week indicator
B Current day, month, year
C Central heating operating
mode indicatior
D Central heating override
button
E 
button
F Central heating operating
mode button
G Central heating indicator lamp
H 
indication
I Central heating programming
period indication
J Function indicator lamps
K Manual selector
L OK button
M 
N
1)
 
O
1)
 
P 
Q Domestic hot water
programming period
indication
R 
hour indication
S Domestic hot water indicator
lamp
T Domestic hot water operating
mode button
U Analog clock / current time
V 
hour button
W Domestic hot water override
button
X Domestic hot water icon
Y 
Z Domestic hot water operating
mode indicatior
Override
HEATINGHOT WATER
Extra Hour
Mode
DAY/
CH RUN
TIME
OFF
am
Thu
AUTO
ONCE
CONT
EXT HOUR
+1
+2
+3
07 / 02 / 2013
ON1
OFF
AUTO
ONCE
CONT
EXT HOUR
+1
+2
+3
ON1
DHW
Override
Extra Hour
Mode
OK
Holidays
Select
1)
1)
