GRAUPNER 6475 User Manual

ULTRA DUO PLUS 45
9/10 PAGE

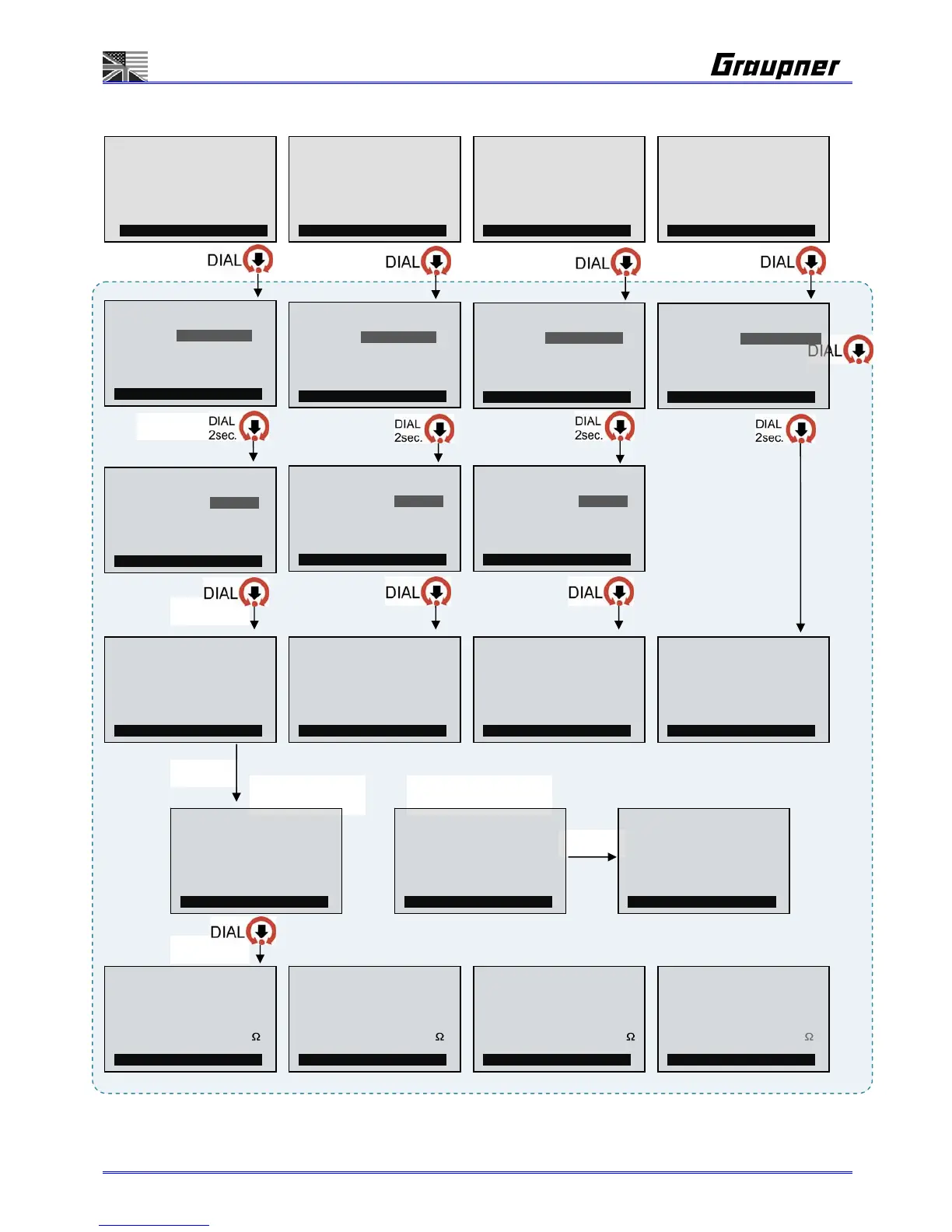

11. START SELECT MENU SCREEN
without bal. con.
3sec.
CHARGE
01]NiMH 7.2V 4600mAh
Cd+3.00A 9999 +12.10V
CHARGE START 5
PROCESS [ NORMAL ]
01]NiMH 7.2V 4600mAh
C: 4.6A d 5mV/C 50°C
Cd+3.00A 9999 +12.10V
with bal. con.
CHARGE START
[ NiMH ] BATTERY
-- CONNECT --
__ CHECK __
Cd+3.00A 9999 +12.10V
DISCHARGE
01]NiMH 7.2V 4600mAh
Cd+3.00A 9999 +12.10V
CYCLE
01]NiMH 7.2V 4600mAh
Cd+3.00A 9999 +12.10V
STEP CHARGE
01]NiMH 7.2V 4600mAh
Cd+3.00A 9999 +12.10V
CHARGE START 5
DELAY TIME ____OFF
EXPECT TIME __72min
EXP.FINISH am11:12:00
01/01/2008 am10:00:00
Cd+3.00A 9999 +12.10V
DISCHARGE START 5
PROCESS [ NORMAL ]
01]NiMH 7.2V 4600mAh
D:10.0A 1.1Vc/CL 50°C
Cd+3.00A 9999 +12.10V
STEP-CHG START 5
PROCESS [STEP-CHG ]
01]NiMH 7.2V 4600mAh
___0 ___0 ___0 ___0
Cd+3.00A 9999 +12.10V
DISCHARGE START 5
DELAY TIME ____OFF
EXPECT TIME __72min
EXP.FINISH am11:12:00
01/01/2008 am10:00:00
Cd+3.00A 9999 +12.10V
STEP-CHG START 5
DELAY TIME ____OFF
EXPECT TIME __72min
EXP.FINISH am11:12:00
01/01/2008 am10:00:00
Cd+3.00A 9999 +12.10V
DISCHARGE START
[ NiMH ] BATTERY
-- CONNECT --
__ CHECK __
Cd+3.00A 9999 +12.10V
STEP-CHG START
[ NiMH ] BATTERY
-- CONNECT --
__ CHECK __
Cd+3.00A 9999 +12.10V
CYCLE START
[ NiMH ] BATTERY
-- CONNECT --
__ CHECK __
Cd+3.00A 9999 +12.10V
*CONNECTED CHECK* 5
[00] cells are now
Connected at the
Balancing port
.......Right?
OUTPUT [ _0.000V ]
Cd+3.00A 9999 +12.10V
** BALANCER **
** CONNECTION
**
** ADVISED! **
Cd+3.00A 9999 +12.10V
*SELECT CELLS*
Select [00] cells
to be charged or
discharged.
.......Right?
OUTPUT [ _0.000V ]
Cd+3.00A 9999 +12.10V
[ NORMAL ] CHARGE
EXP.FIN. am00:00:00
0000mAh _0:00:00
_0.000V +_0.00A
RESISTANCE __0.0m
BATT TEMP __0.0°C
Cd+3.00A 9999 +12.10V
[ NORMAL ]DISCHARGE
EXP.FIN. am00:00:00
0000mAh _0:00:00
_0.000V +_0.00A
RESISTANCE __0.0m
BATT TEMP __0.0°C
Cd+3.00A 9999 +12.10V
[ 4 STEP ] CHARGE
STEP=01 [ ] 0000mAh
0000mAh _0:00:00
_0.000V +_0.00A
RESISTANCE __0.0m
BATT TEMP __0.0°C
Cd+3.00A 9999 +12.10V
[ NORMAL ] CHARGE
CYCLE D:C>D 0/10
0000mAh _0:00:00
_0.000V +_0.
RESISTANCE __0.0m
00A
BATT TEMP __0.0°C
Cd+3.00A 9999 +12.10V
CYCLE START 5
CHARGE [ NORMAL ]
DISCHG [ NORMAL ]
01]NiMH 7.2V 4600mAh
D:C>D _1T C_0/D_0min
Cd+3.00A 9999 +12.10V
3sec.
5sec.or
5sec.or
5sec.or
