correct polarity.
Connect the W-Lan module to the "PRG" port. Pay attention to the
correct polarity, the signal wire is marked.
Mount the fan on the cooling block using the four screws supplied.
Connection to the "FAN" port.
Attention
Inverted polarity would destroy the speed controller.
Installation
Mount the speed controller in the model such that the cooling sur-
face remains exposed. Ensure adequate cooling of the motor and
the speed controller by providing adequately sized cooling air open-
ings. Protect the speed controller from moisture and dirt.
Fan connection port
Here you can connect an additional fan. If the temperature of the
controller is below 35 ° C, the fan is switched off.
Switch connection port
The supplied power switch is connected to this socket. If it is not
used, the controller will immediately switch on when the battery is
connected.
Setup Button
The button can only set the throttle level.
Installation in the model and commissioning
Mount the speed controller in the model such that the cooling sur-
face remains exposed. Ensure adequate cooling by providing ade-
quately sized cooling air openings.
Attention!

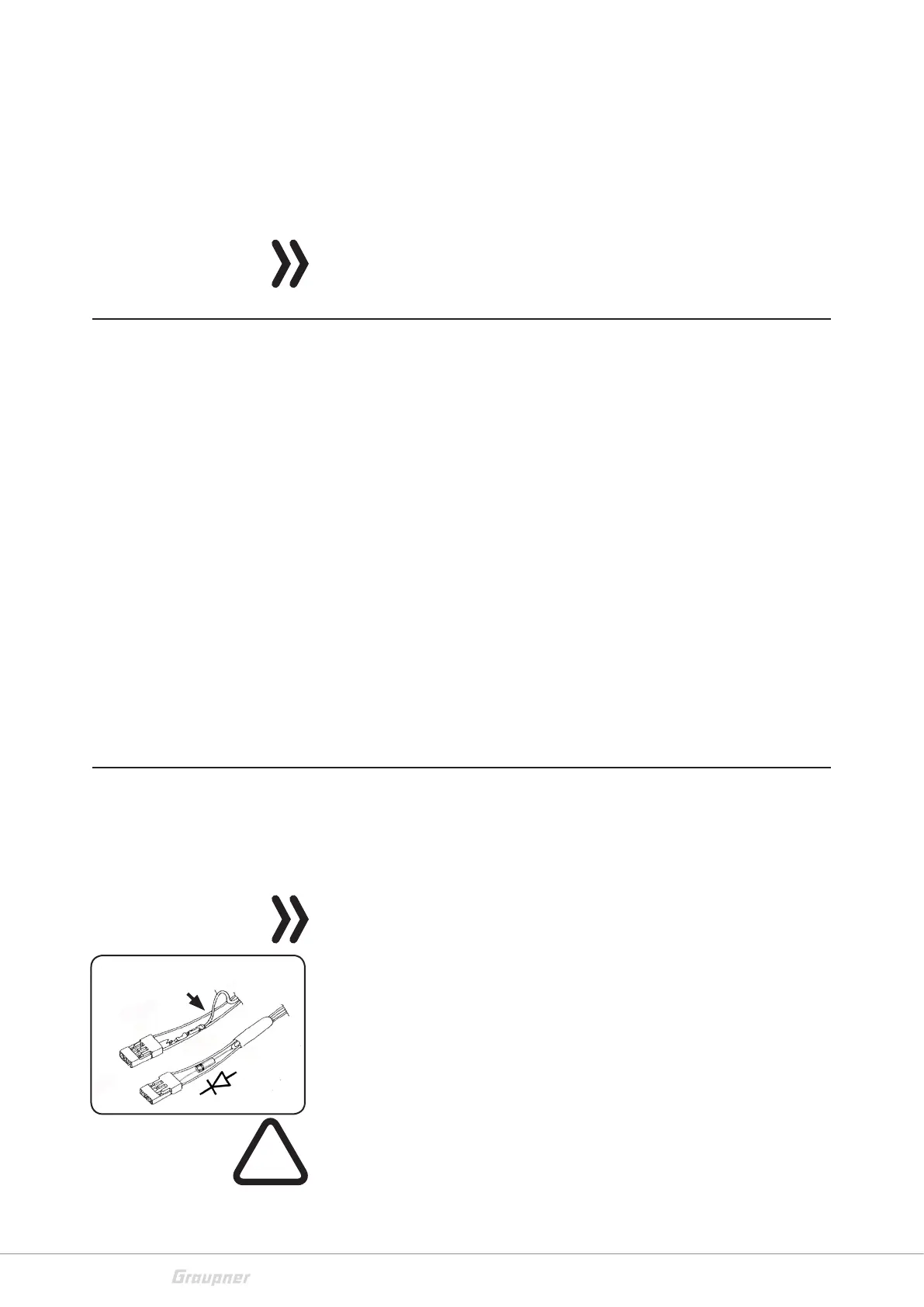

If you do not want to use the BEC supply from the controller and
instead use a separate battery, you have to remove and isolate the
red wire (+) of the BEC plug as shown in the sketch. This will prevent
a backflow into the controller, which could destroy the controller. If
you want to connect an additional battery to the BEC system, a
diode (e.g. Schottky diode 91505) needs to be soldered into the
BECs red wire, so that the current can only flow from the BEC to the
receiver.
CAUTION
If you wish to connect a receiver battery in addition to the BEC
receiver power supply, you must proceed as described above, oth-
erwise the controller will overheat and it can burn. Risk of fire and
burns!
