Due to safety and licensing reasons (CE), any unauthorized recon-
struction and/or modification of the product is prohibited.
Only use the components and spare parts that we recommend.
Always use matching, original Graupner plug-in connections of
the same design and material.
Make sure that all of the plug-in connections are tight. When dis-
connecting the plug-in connections, do not pull the cables.
Avoid shock and pressure. Check if there are damages on the
speed controller body or cables. Damaged or wet, even if re-dried,
esc must not be used anymore! Risk of short-circuit and fire!
Short-circuit and fire risk!
All cables and connections must be well insulated. Risk of fire!
Do not reverse the polarity of these connections! Risk of fire! Use
polarity-safe plug-in systems.
If you have questions which cannot be answered by the operat-
ing manual, please contact us (contact information see page 3)
or another expert in the field.
S3078, S3086

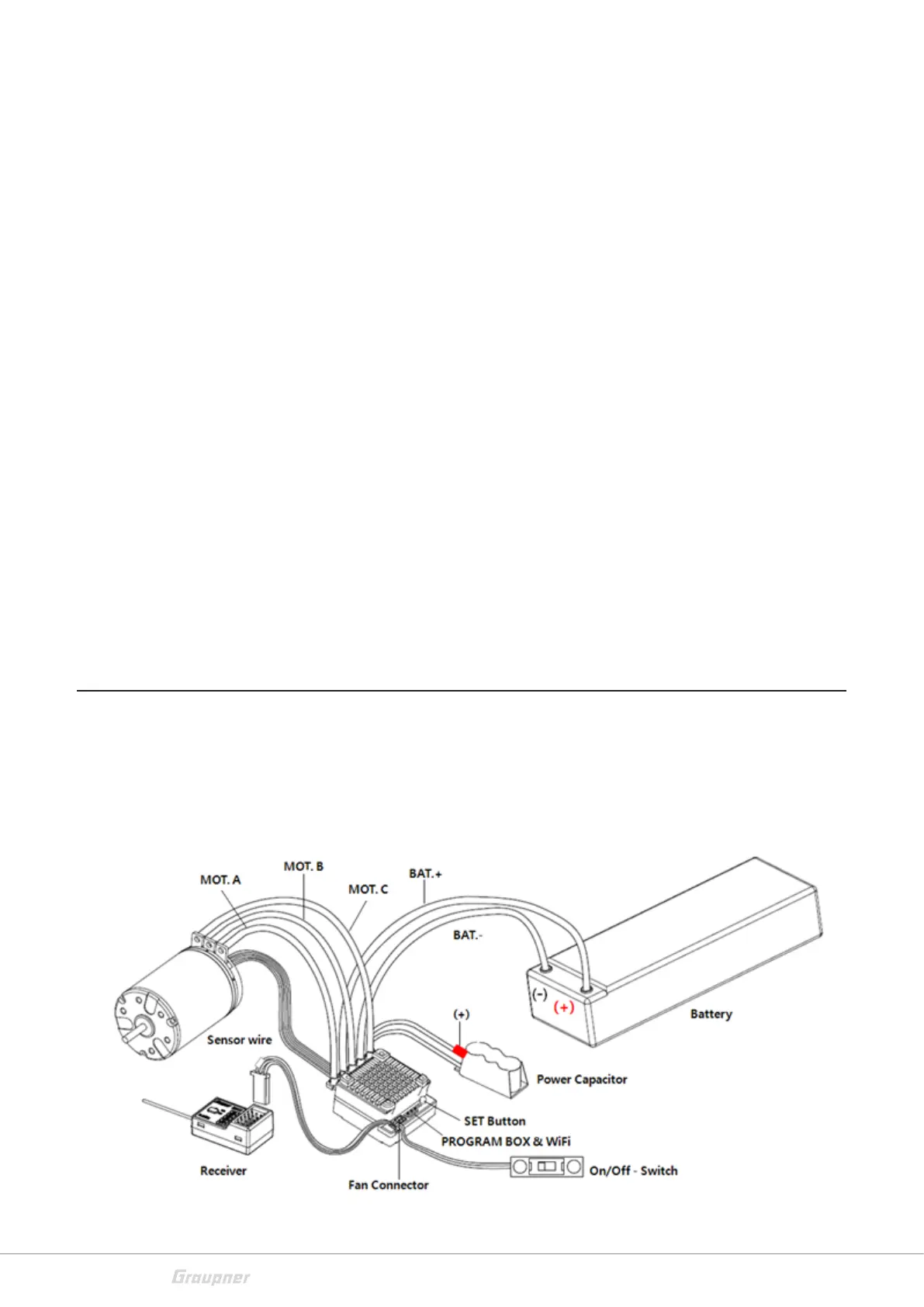

Connection example
