Mixer ratio (TRAVEL-/+)
in these two lines you can dene the mixer ratio in relation to the source channel (FROM CHANNEL); the value is set
separately for both directions.
PROGRAMMING EXAMPLES

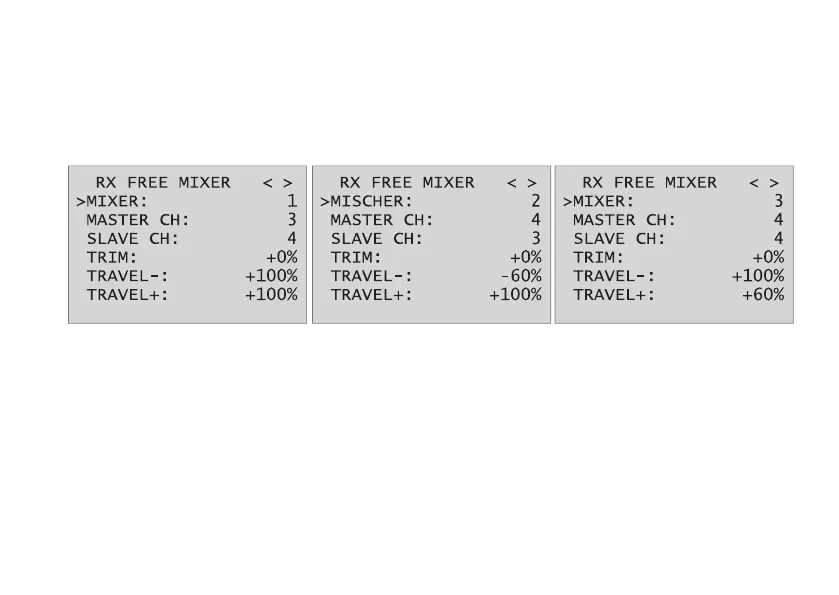

V-tail with rudder dierential
Dierential is not normally necessary with this tail type. Mixer 3 is not required if you do not need rudder dierential, and
TRAVEL- for mixer 2 must then be set to -100%. Alternatively you may prefer to carry out the programming using
the transmitter menu. A ‘Rudder elevator’ mixer can be set up at the transmitter instead of ‘Free mixer 3’ at the receiver;
the mixer should be set up asymmetrically, e.g. +30%, -30%. This option frees up one mixer at the receiver.
53
