151

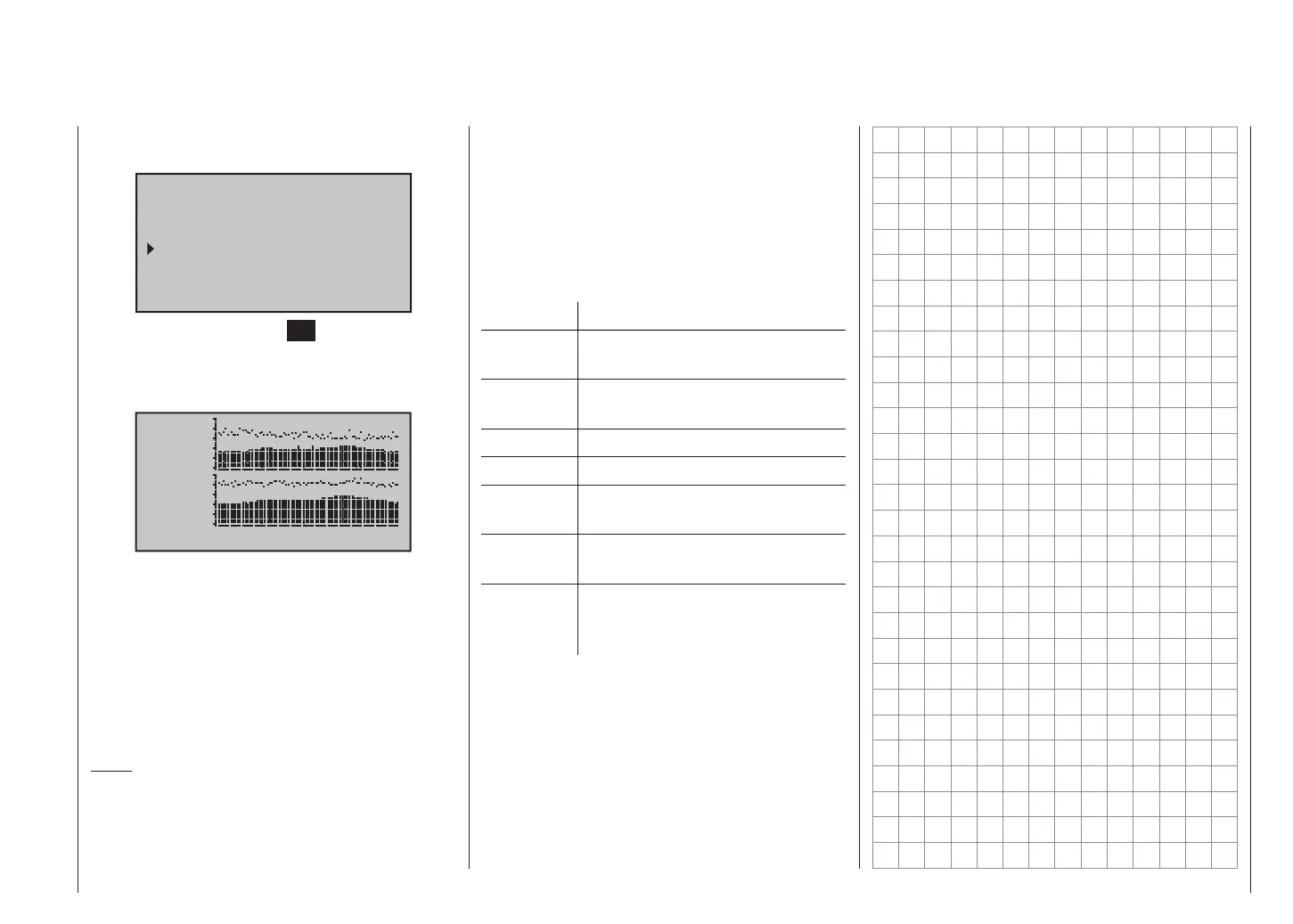

Program description: Telemetry menu
After you select the desired menu line using the arrow
buttons of the left or right-hand touch-key …
TELEMETRY
SETTING & DATA VIEW
SENSOR SELECT
RF STATUS VIEW
VOICE TRIGGER
… a brief press on the central SET button of the right-
hand touch-key opens the selected sub-menu. This
visualises the quality of the connection between trans-
mitter and receiver:
R100%
TD 40
E 10
RD 51
4.8VC
S 90%
4.8VM 0123456789ABCDE
Top row: Receive performance of channels 1 …
75 in the 2.4 GHz band in dBm, com-
ing from the receiver, picked up at the
transmitter.
Bottom row: Receive performance of channels 1 …
75 in the 2.4 GHz band in dBm, coming
from the transmitter, picked up at the
receiver.
Notes:
Since the receive performance is measured and dis-•
played in dBm, the higher the bar, the worse the re-
ceive performance, and vice versa; see also under
“Receive performance (S-dbm)” on page 139.
The dots above the bar indicate the worst-case re-•
ceive performance since the transmitter was switched
on, or since the display was reset by simultaneously
pressing the or buttons of the right-hand
touch-key (CLEAR).
Additional information in numeric form is generated to
the left of the graphic display of receive performance.
The meaning of these figures is as follows:
Value Explanation
R Signal quality in % for the signal
arriving from the receiver
S Signal quality in % for the signal
arriving at the receiver
TD Reception performance in dBm
E Number of lost receiver data packets
RD Reception performance in dBm of the
signal picked up by the receiver
VC Actual receiver operating voltage in
Volt
VM Lowest receiver operating voltage in
Volt since the last time it was switched
on
RF STATUS VIEW
