GRAUPNER GmbH & Co. KG D-73230 KIRCHHEIM/TECK GERMANY
Modifications reserved. No liability for printing errors. 06/2010
10
Fuselage, tailplane, fin and noseleg

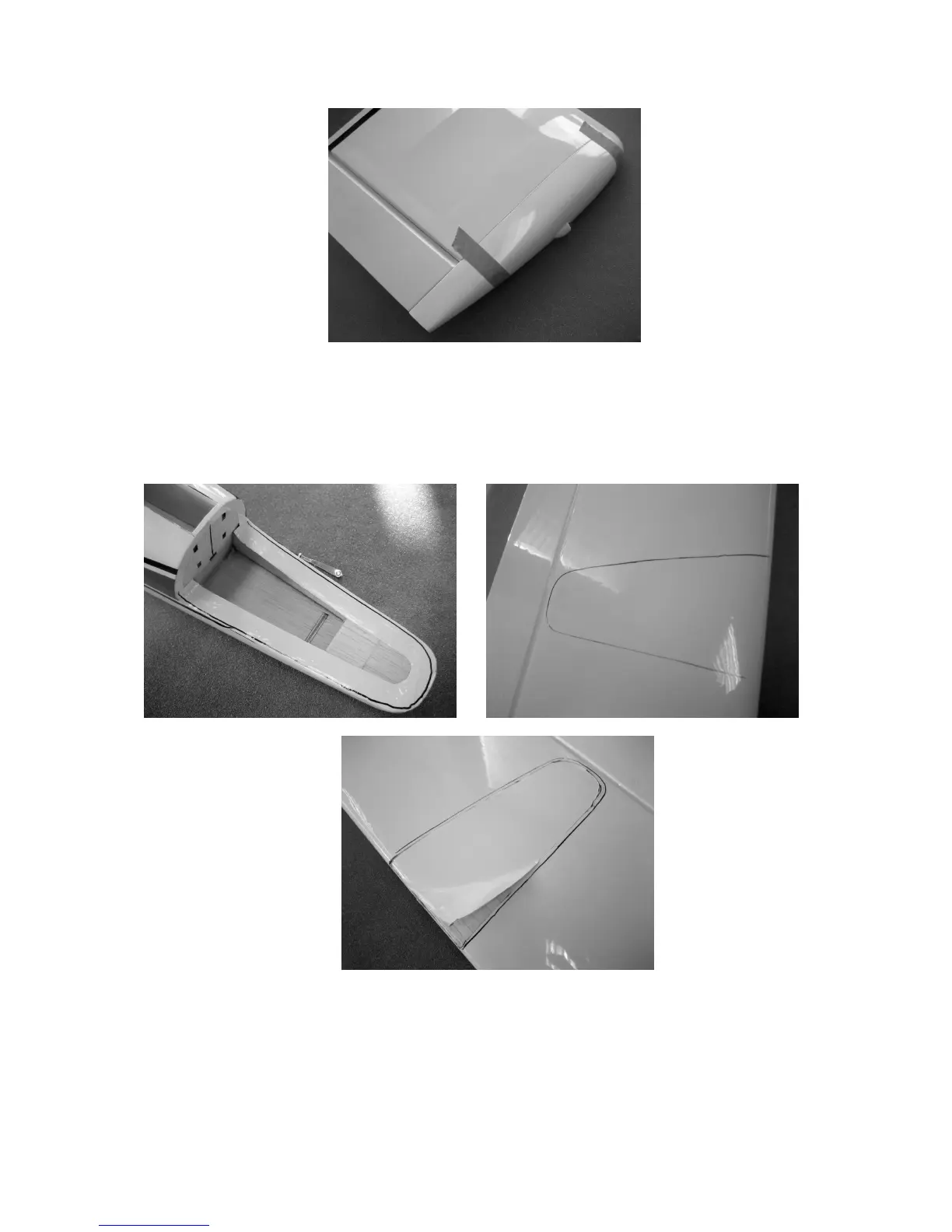

The covering film has to be removed from the mating surfaces of the fuselage and fin
before the fin can be glued in place, as shown in the photos.
Use a felt-tip pen to mark the outline of the fuselage on the tailplane, then run a hot
soldering iron just inside the marked line before peeling off the unwanted film.
Apply UHU Holzleim express, Order No. 958.60, to the tailplane saddle, place the
tailplane in position, and press it firmly into place. Check that the tailplane is ‘square’
to the fuselage in all three axes, then pin or weight it down to prevent it shifting while
the glue hardens.
