rods to be engaged. The picture also shows the 10 x 6 mm opening in the fuselage
turtle deck for the aileron servo extension leads.
Glue the elevator and rudder hinges in place using UHU ALLESKLEBER Kraft,
following the principle described earlier; glue the elevator joiner in both elevators at
the same time, using cyano.

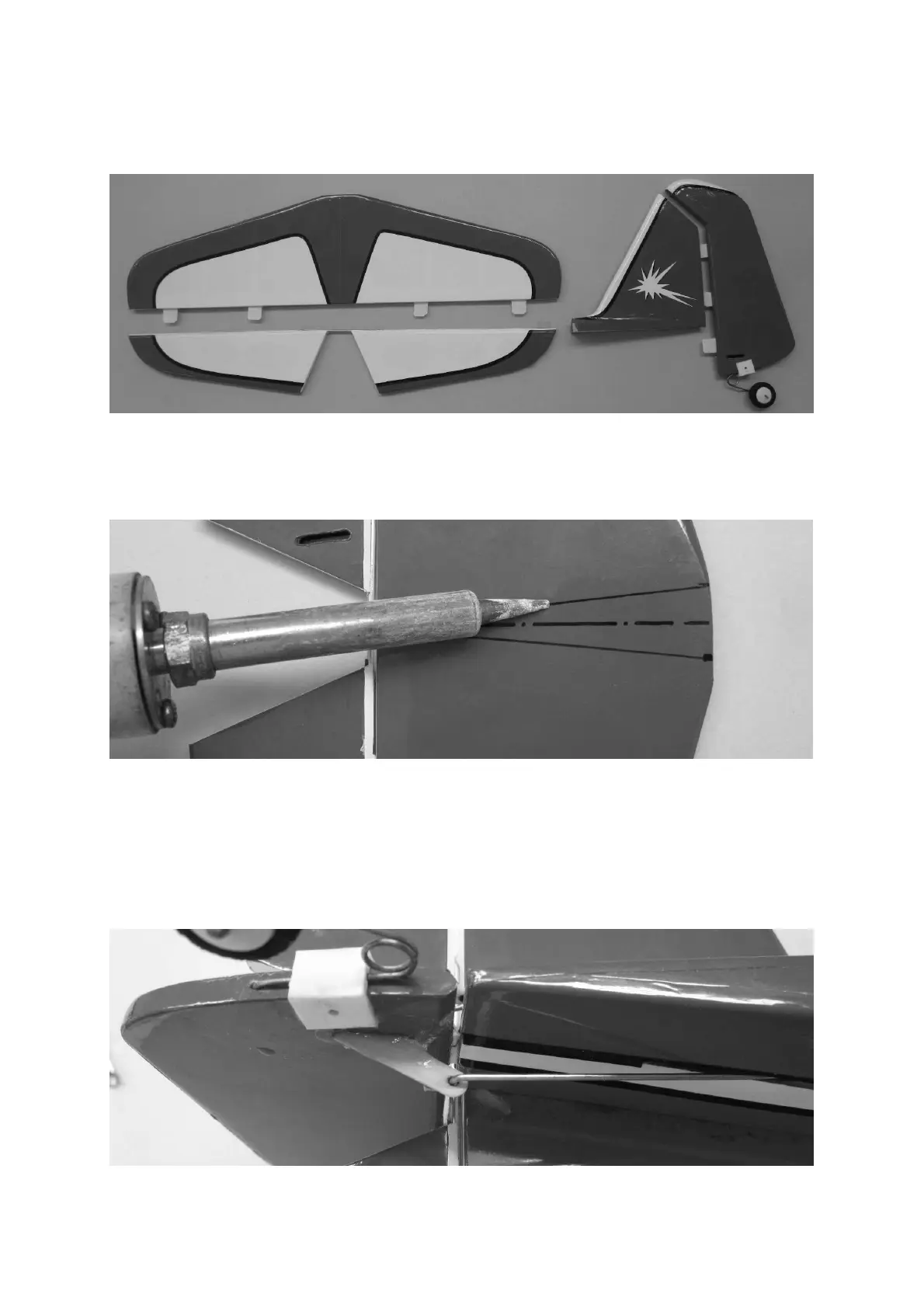

Accurately mark the centreline of the tailplane using a setsquare and a spirit felt-tip
pen, then mark on it the outlines of the joint surface for the fuselage and the fin. Melt
the covering film along the marked lines using the tip of a hot soldering iron, and peel
off the unwanted film. Glue the tailplane to the fuselage, keeping it exactly central
and “square”. Cut a slit in the fuselage to accept the bottom rudder hinge, then glue
the fin to the tailplane and fuselage, again keeping it exactly central and vertical.
