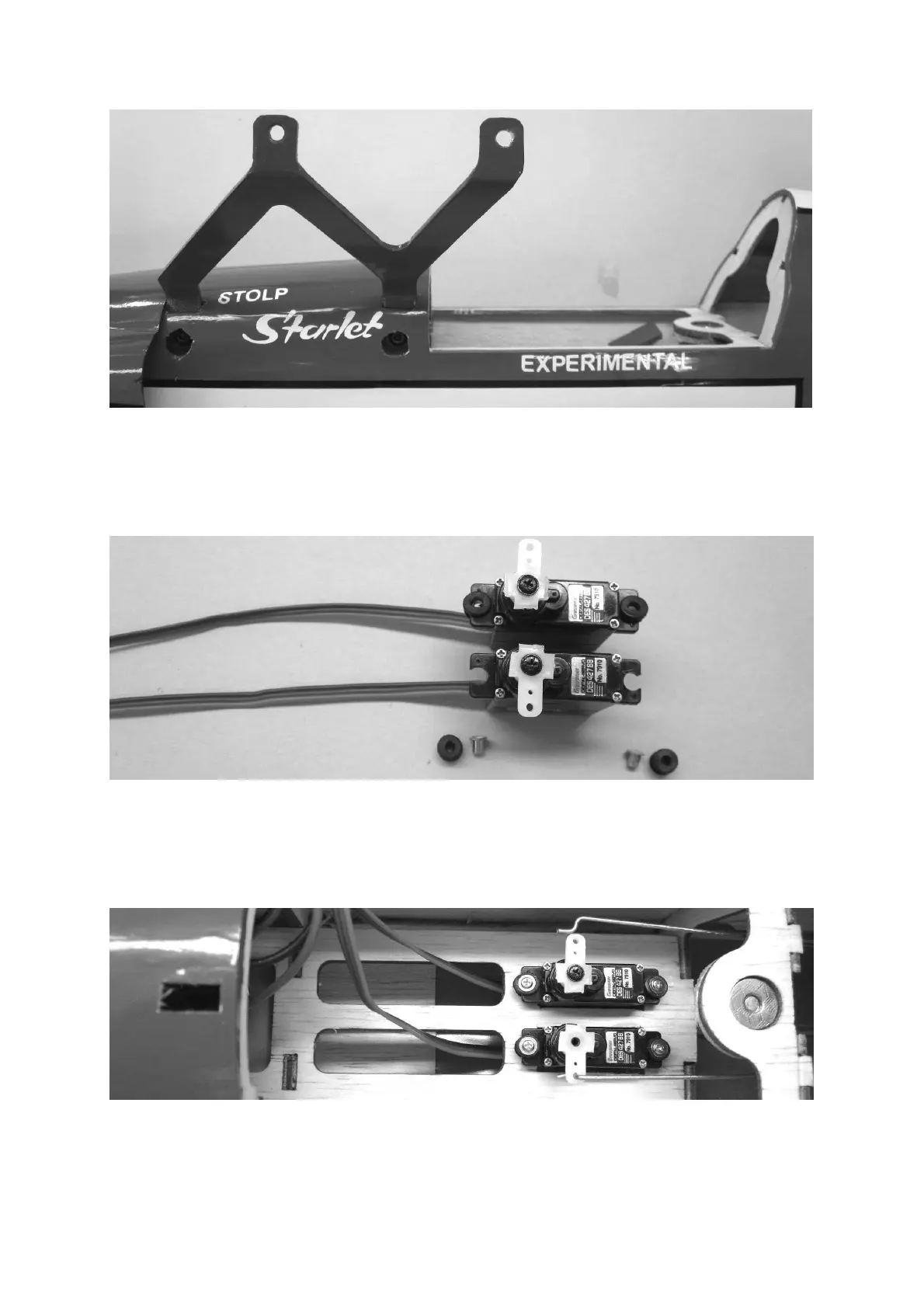

Use your fingertips to locate the openings for the wing cabane under the covering
film, and cut away the film with a balsa knife. Secure the cabane on both sides by
tightening the M3 x 8 socket-head screws; the holes can later be covered with pieces
of the coloured adhesive tape supplied in the accessory pack.
The elevator and rudder servos can now be prepared for installation by drilling out
the output arms to 1.0 mm Ø and pressing the rubber grommets and tubular metal
spacers into the mounting lugs; the flange of the spacers should be on the underside.
The servo mounting components are supplied in the servo accessory pack.
This picture shows the servos installed in the servo plate, one with the pushrod
connected, one ready to be connected. Unscrew the output levers to allow the push-
