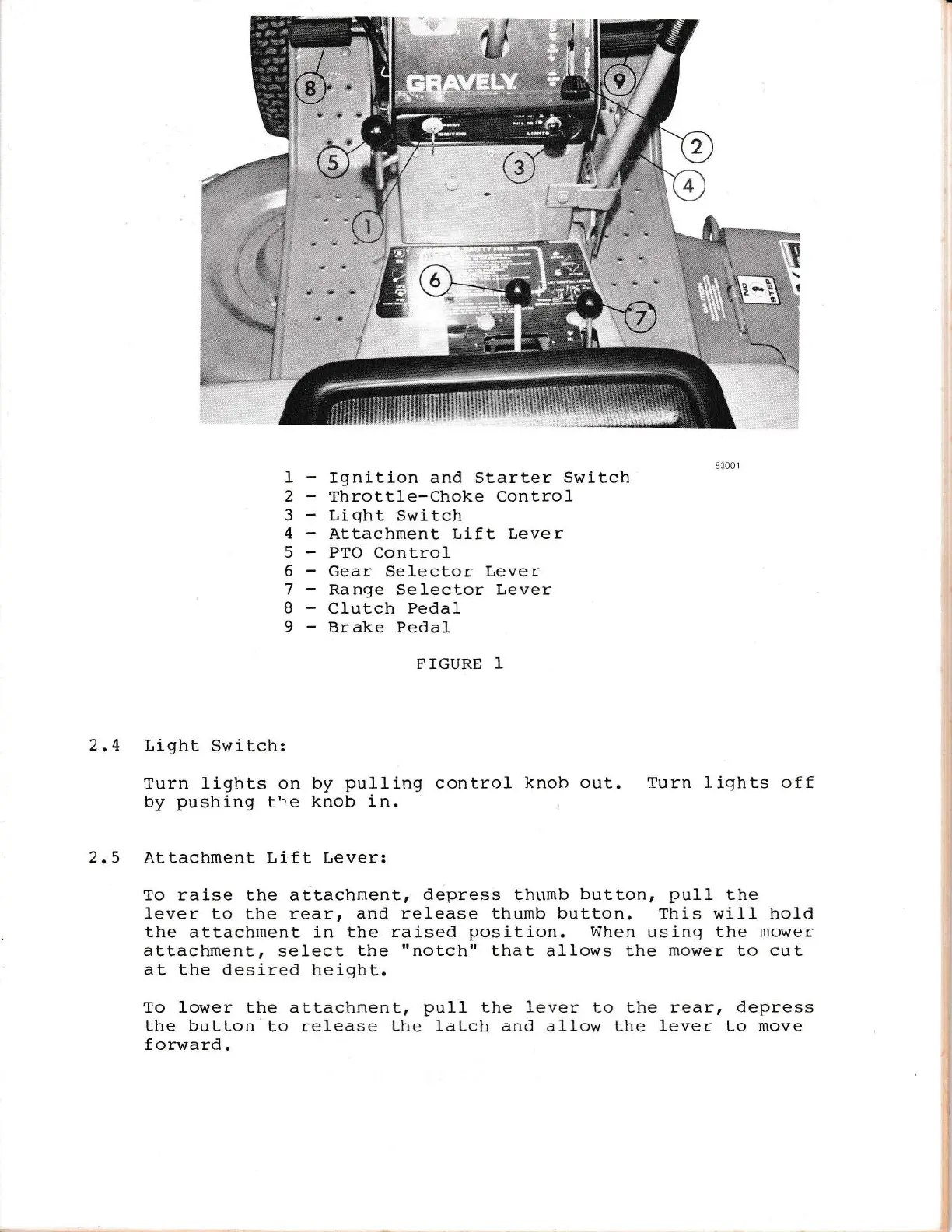

Ignition and Starter
Swit-ch
Throttle-Choke
Control
Liqht Switch
Attachment Lift Lever
PTO
Control
Gear
Selector
Lever
Ranqe Se lect-or
Lever
Clutch
Pedal
Brake Pedal
FIGURE I
2.4
Liqht
Switch:
Turn lights on
by
.pulling
control
knob out.
Turn liqhts of
f
by
pushing
the
knob
in.
2.5
Attachment Lift Lever:
To raise the
attachment,
depress thumb
button,
Pul1
the
lever
to the rear,
and release thumb
button.
This will hold
the
attachment in the
raised
position.
When
usinq the
mower
attachment,
select
the
"notch"
that
allows
the
mower
to cut
at the desired
height.
To lower the
attachment,
pull
the lever
t-o
the rear,
depress
the
button
to
release the
latch
and allow the
lever
to
move
f orward
.
