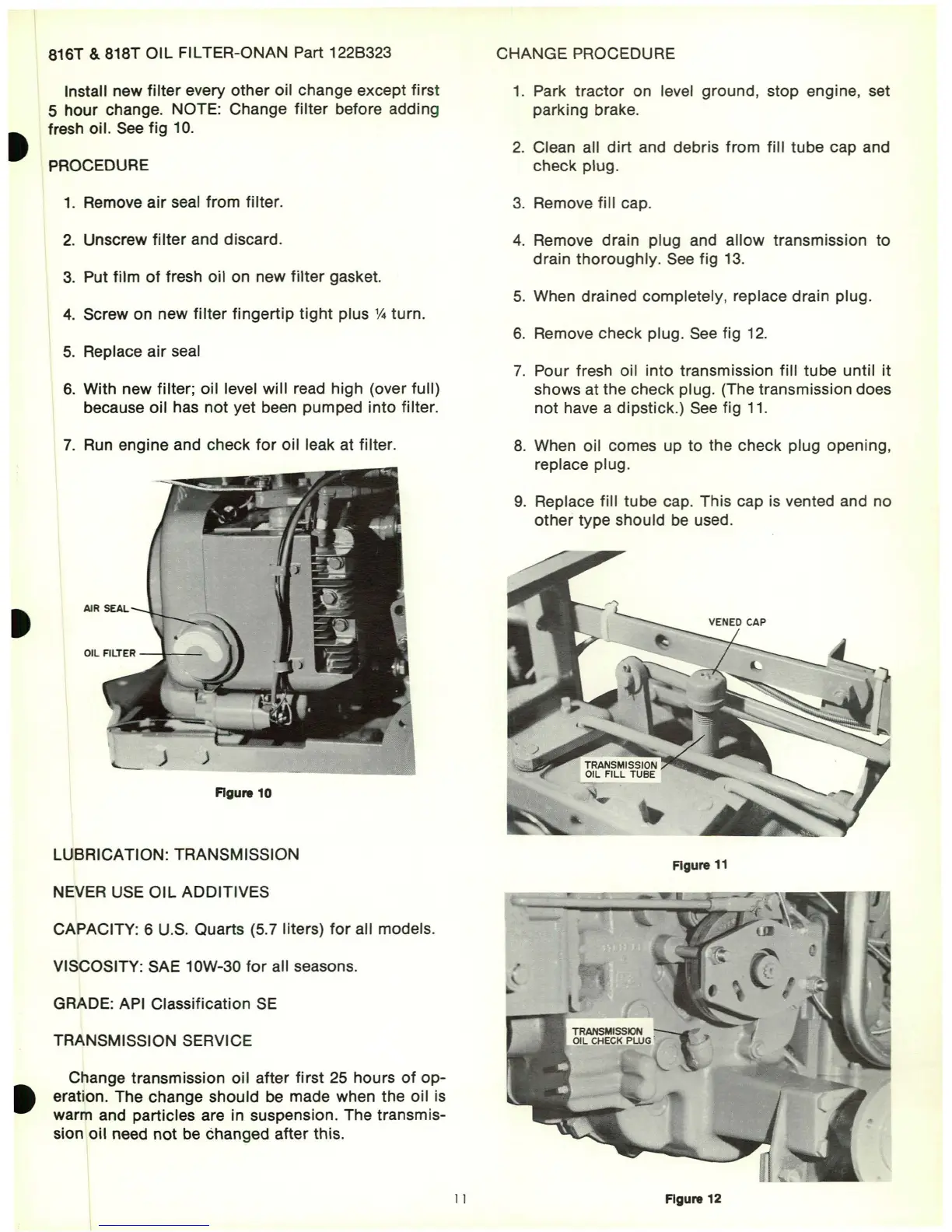

816T & 818T
OIL
FILTER-ONAN Part 122B323
Install new
filter
every
other
oil change except first
5
hour
change. NOTE: Change
filter
before adding
fresh oil. See fig
10.
PROCEDURE
1.
Remove
air
seal from filter.
2.
Unscrew
filter
and discard.
3.
Put film
of
fresh oil on new filter gasket.
4.
Screw on new
filter
fingertip
tight
plus
1f4
turn.
5.
Replace air seal
6.
With new filter; oil level will read high (over fUll)
because oil has
not
yet been pumped into filter.
7.
Run engine and check
for
oil leak at filter.
Figure 10
LUBRICATION: TRANSMISSION
NEVER USE
OIL
ADDITIVES
CAPACITY: 6 U.S. Quarts (5.7 liters)
for
all models.
VISCOSITY: SAE 10W-30
for
all seasons.
GRADE: API Classification SE
TRANSMISSION SERVICE
Change transmission oil after first 25 hours
of
op-
eration. The change should be made when the oil is
warm and particles are in suspension. The transmis-
sion
oil
need
not
be changed after this.
11
CHANGE
PROCEDURE
1.
Park
tractor
on level ground, stop engine, set
parking brake.
2.
Clean all
dirt
and debris from fill tube cap and
check plug.
3.
Remove fill cap.
4.
Remove drain plug and allow transmission to
drain thoroughly. See fig
13.
5.
When drained completely, replace drain plug.
6.
Remove check plug. See fig
12.
7.
Pour fresh oil into transmission fill tube until it
shows at the check plug. (The transmission does
not
have a dipstick.) See fig
11.
8.
When oil comes up
to
the check plug opening,
replace plug.
9.
Replace fill tube cap. This cap is vented and no
other
type should be used.
Figure
11
Figure 12
