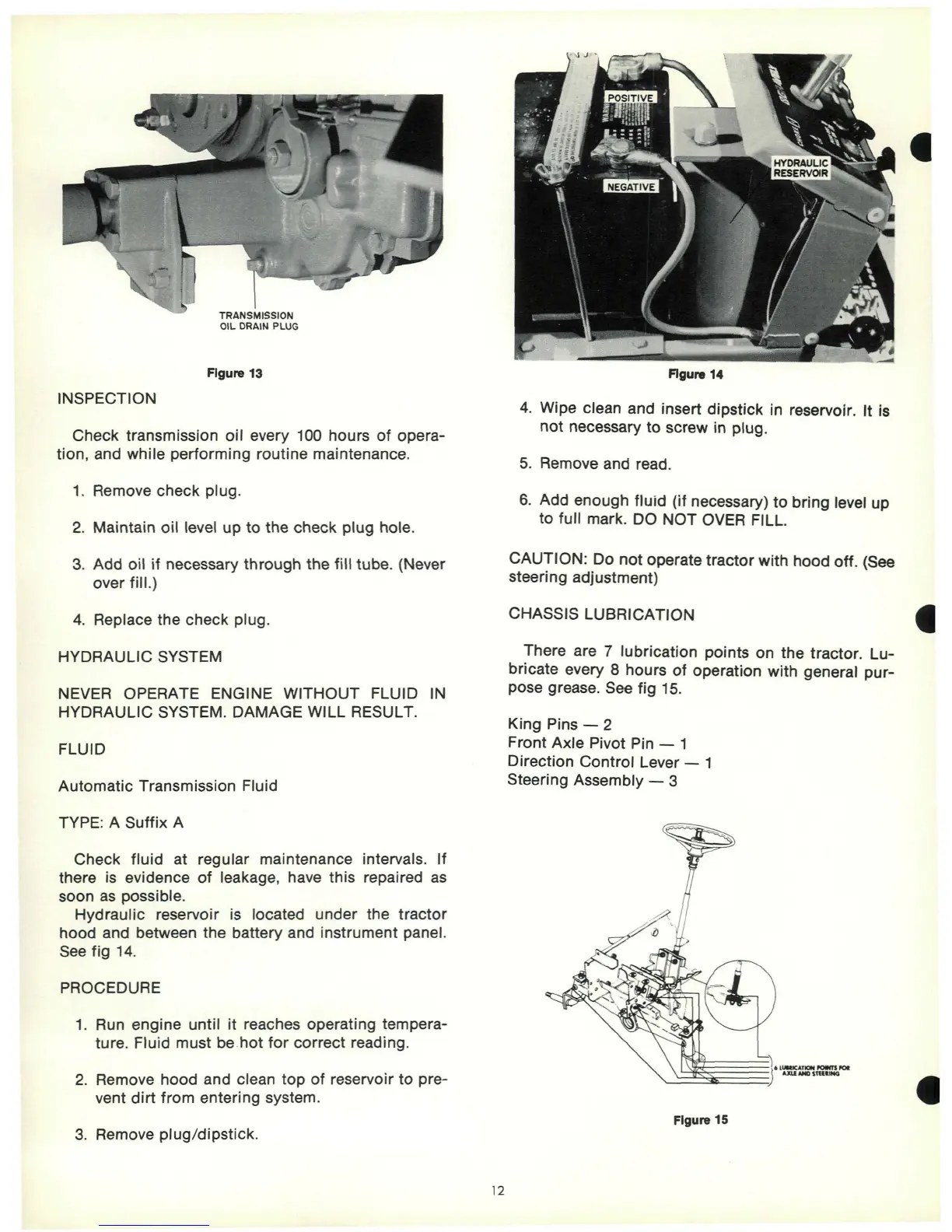

Figure
13
INSPECTION
Check transmission oil every 100 hours
of
opera-
tion, and while performing routine maintenance.
1.
Remove check plug.
2.
Maintain oil level
up
to
the check plug hole.
3.
Add oil
if
necessary
through
the
fill tube. (Never
over fill.)
4.
Replace the check plug.
HYDRAULIC SYSTEM
NEVER OPERATE ENGINE WITHOUT FLUID
IN
HYDRAULIC SYSTEM. DAMAGE WILL RESULT.
FLUID
Automatic
Transmission Fluid
TYPE: A Suffix A
Check fluid at regular maintenance intervals. If
there is evidence
of
leakage, have this repaired
as
soon as possible.
Hydraulic
reservoir is located
under
the
tractor
hood
and between the battery and instrument panel.
See fig
14.
PROCEDURE
1.
Run engine until it reaches operating tempera-
ture. Fluid must be
hot
for
correct reading.
2.
Remove hood and clean
top
of
reservoir
to
pre-
vent
dirt
from entering system.
3.
Remove plug/dipstick.
12
Figure
14
4.
Wipe clean and insert dipstick in reservoir. It is
not
necessary
to
screw in plug.
5.
Remove and read.
6.
Add enough fluid (if necessary)
to
bring level up
to
full mark. DO
NOT
OVER FILL.
CAUTION:
Do
not
operate
tractor
with hood off. (See
steering adjustment)
CHASSIS LUBRICATION
There are 7 lubrication points on the tractor.
Lu-
bricate every 8 hours
of
operation with general
pur-
pose grease. See fig
15.
King Pins - 2
Front Axle Pivot Pin - 1
Direction Control Lever - 1
Steering Assembly - 3
Figure 15
I
I
