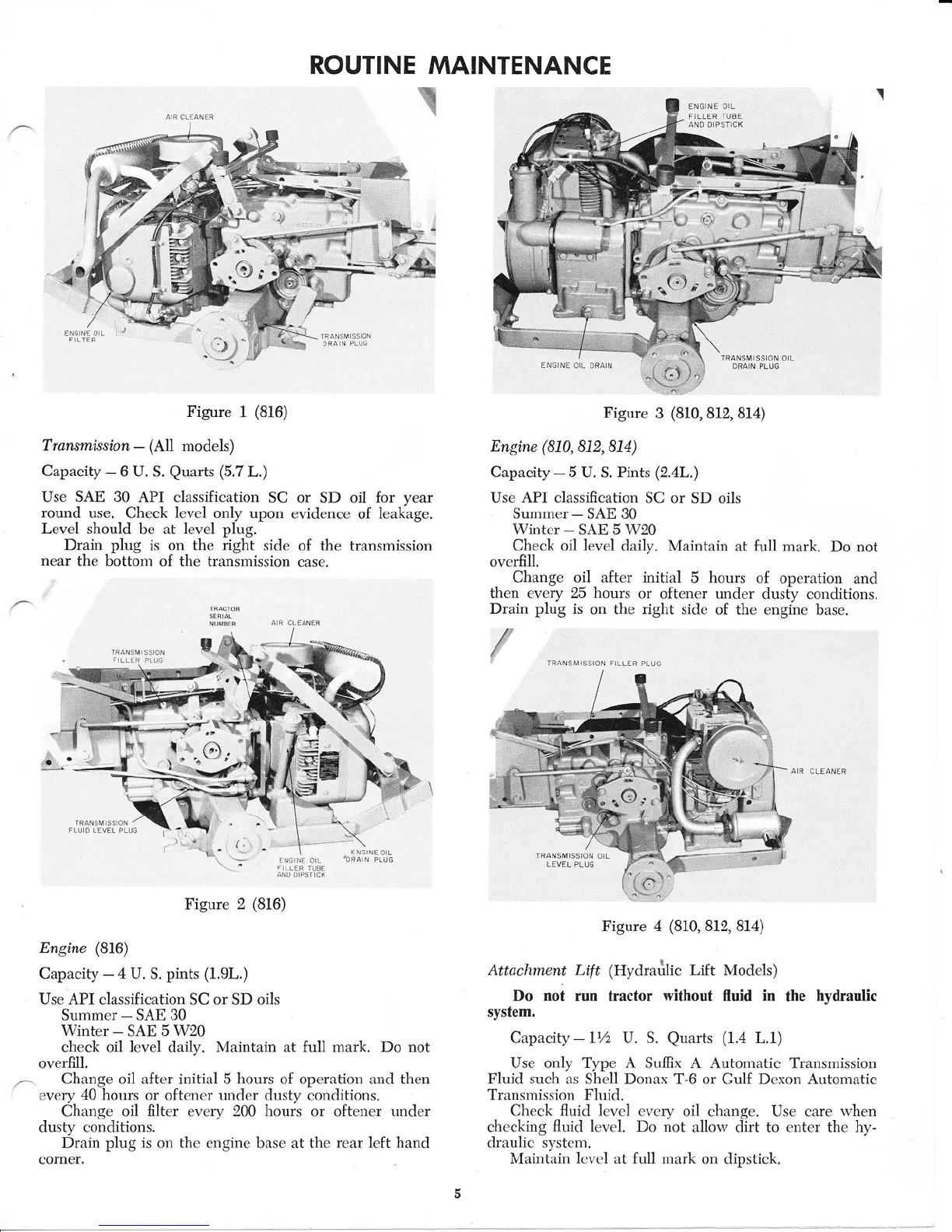

Gravely 814 User Manual

ROUTINE
MAINTENANCE
Figure
1
(816)
Transrnission
-
(All
models)
Capacity
-
6 U. S.
Quarts
(5.7
L.)
Use SAE 30
API
classification
SC or SD oil
for
year
round use.
Check
level
only upon
evidence
of
leakage.
Level should
be at
level plug.
Drain plug
is on
the right
side
of the transmission
near
the bottom
of
the transmission
case.
FNGINF OII
F
ILEF
TUBE
AND
D]PST
CK
Figure
2
(816)
ENGINE
O L
,DRAIN
PLUG
Engine
(816)
Capacity
-
4U.
S.
pints
(1.9L.)
Use API classification
SC
or
SD
oils
Summer
-
SAE
30
Winter-SAE5W20
check
oil
level
daily.
Maintain
at
full mark. Do not
overffll.
Change oil after initial 5
hours
of operation and then
every
40 hours
or oftener
under
dusty conditions.
Chtrnge oil
filter
every 200
hours
or oftener
under
dusty
conditions.
Drain
plug is
on the engine base at the
rear left hand
corner.
Engine (810,812,814)
Capacity
-
5 U.
S.
Pints
(2.4L.)
Use
API
classification SC
or SD oils
Summer
-
SAE 30
Winter-SAE5W20
Check oil
level
daily. Maintain
at full mark.
Do not
overfill.
Change oil after initial
5 hours
of operation
and
then every 25 hours
or
oftener under dusty conditions.
Drain plug is
on
the right
side of the
engine base.
Figure 4
(810,
BLL,BI
)
Attachment
Li.ft
(Hydra,lti"
lift Models)
Do not run tractor without fluid in
the
hydraulic
system.
Capacity
-IV2
U. S,
Quarts
(1.4
L.1)
Use only Type A Suffix
A Automatic Transmission
Fluid
such as
Shell Donax T-6 or Gulf Dexon Automatic
Transmission Fluid.
Clieck fluid level
every oil
change. Use care
r,vhen
chccking
fluid level.
Do
not
allorv
dirt to
enter the hy-
draulic system.
Maintain
lcvcl :rt full mark
on dipstick.
ENGINE
O]L
FLLLER TUBE
AND DIPST]CK
IRANSIVLSSION
OIL
DR,AIN
PLUG
Figure
3
(810,812,814)
IRANSM
SSION FILLER
PLUG
