Install (Figure 20)
1. Install hydrostatic belt on idler, electric
clutch, pulley, and hydrostatic
transmission pulleys.
2. Connect idler spring.
3. Install clutch stop.
4. Connect electric clutch connector.
5. Install PTO belt (see REPLACING PTO
BELT on page 21)
Short Term Storage
IMPORTANT: NEVER clean unit with high-
pressure water or store unit outdoors.
Remove all dirt, grease, leaves, etc. Store in
a clean dry area.
Inspect unit for signs of wear or damage.
Ensure all fasteners are properly tightened.
Long Term Storage
Follow all instructions under Short Term
Storage.
Remove and fully charge battery. Store in a
clean dry area.
Drain fuel from fuel tank.
Refer to Engine Manual for the proper engine
storage procedures.
Touch up all scratched or chipped paint
surfaces.

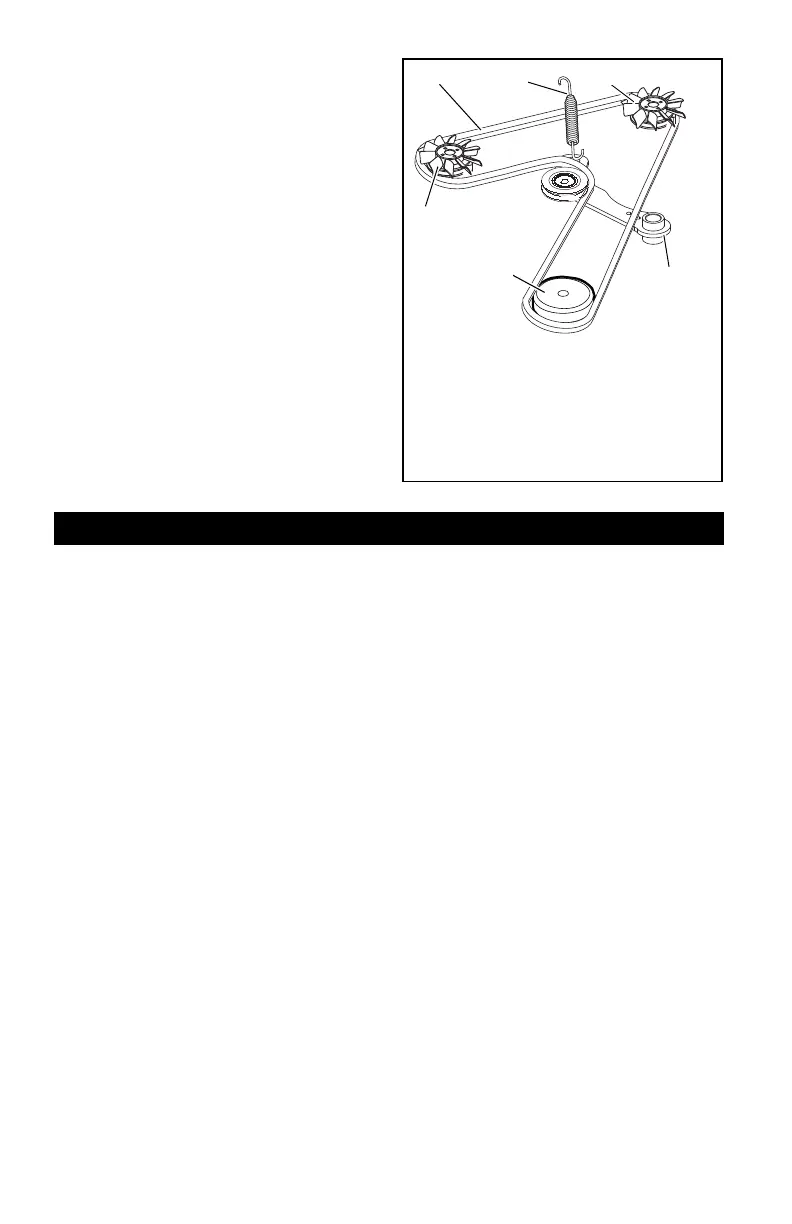

Figure 20
1
1. Hydrostatic Belt
2. Hydrostatic Transmission Pulley
3. Pulley
4. Electric Clutch
5. Idler
6. Idler Spring
2
5
2
4
6
