6 - 20
6.1 STEERING CONTROLS
The right and left hand controls should be checked
each time the unit is used. Any parts or pivot points that
show signs of wear should be replaced.
6.2 OPERATOR PRESENCE CONTROL
The presence control linkage opens a switch when the
hand grips are squeezed by the operator.
The electrical switch is normally open and will shut off
the engine when the hand grips are released.
SECTION 6 - STEERING AND CONTROLS
1
2
3
4
5

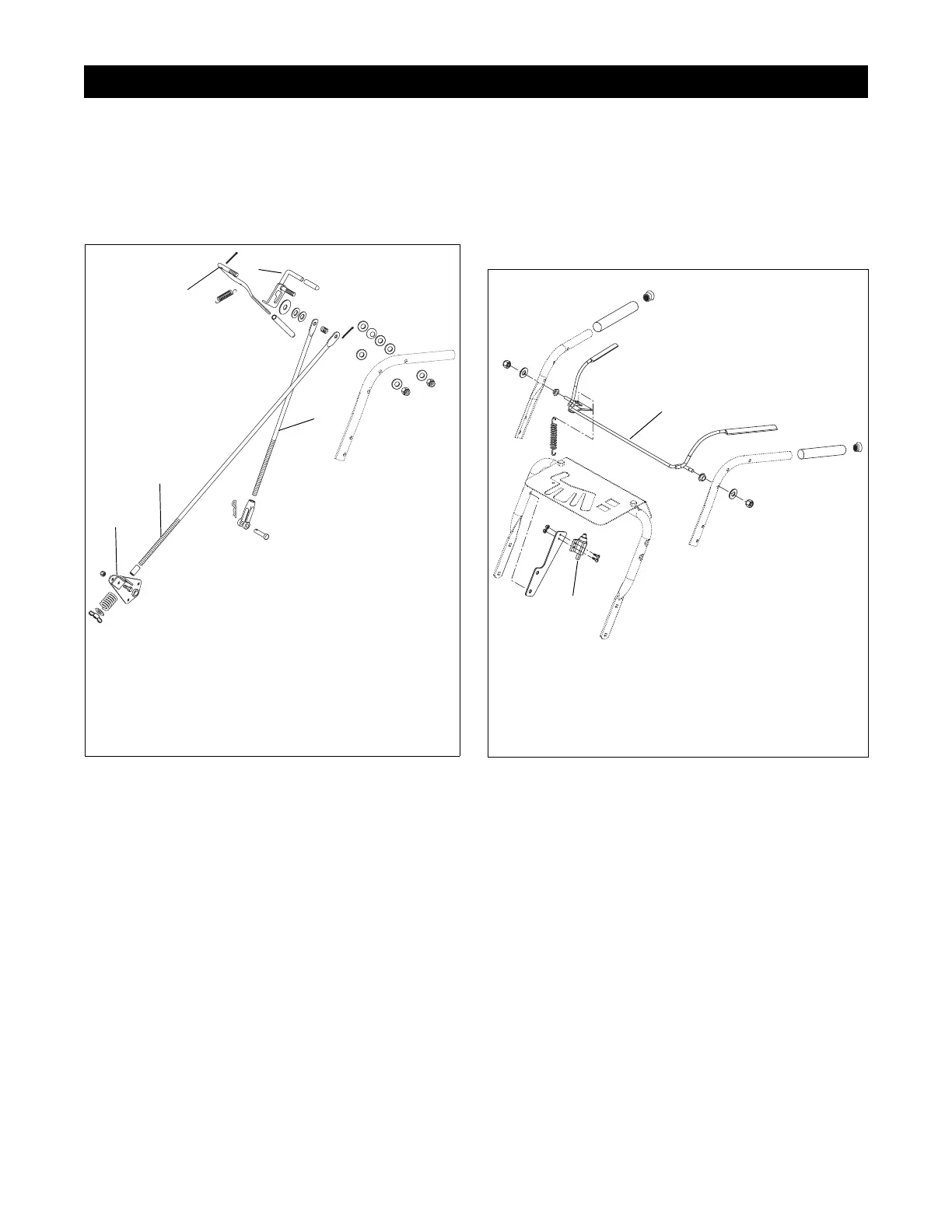

1. Hand Control Lever
2. Brake Lock Clutch
Weldment
3. Clutch Actuating Rod
4. Brake Rod
5. Brake Rod Bracket
Figure 14
PG0521
1. Hand-Grip Weldment
2. Single Pole Switch
Figure 15
PG0790
1
2
