EN - 16
TRANSPORT LOCK RELEASE
LEVER

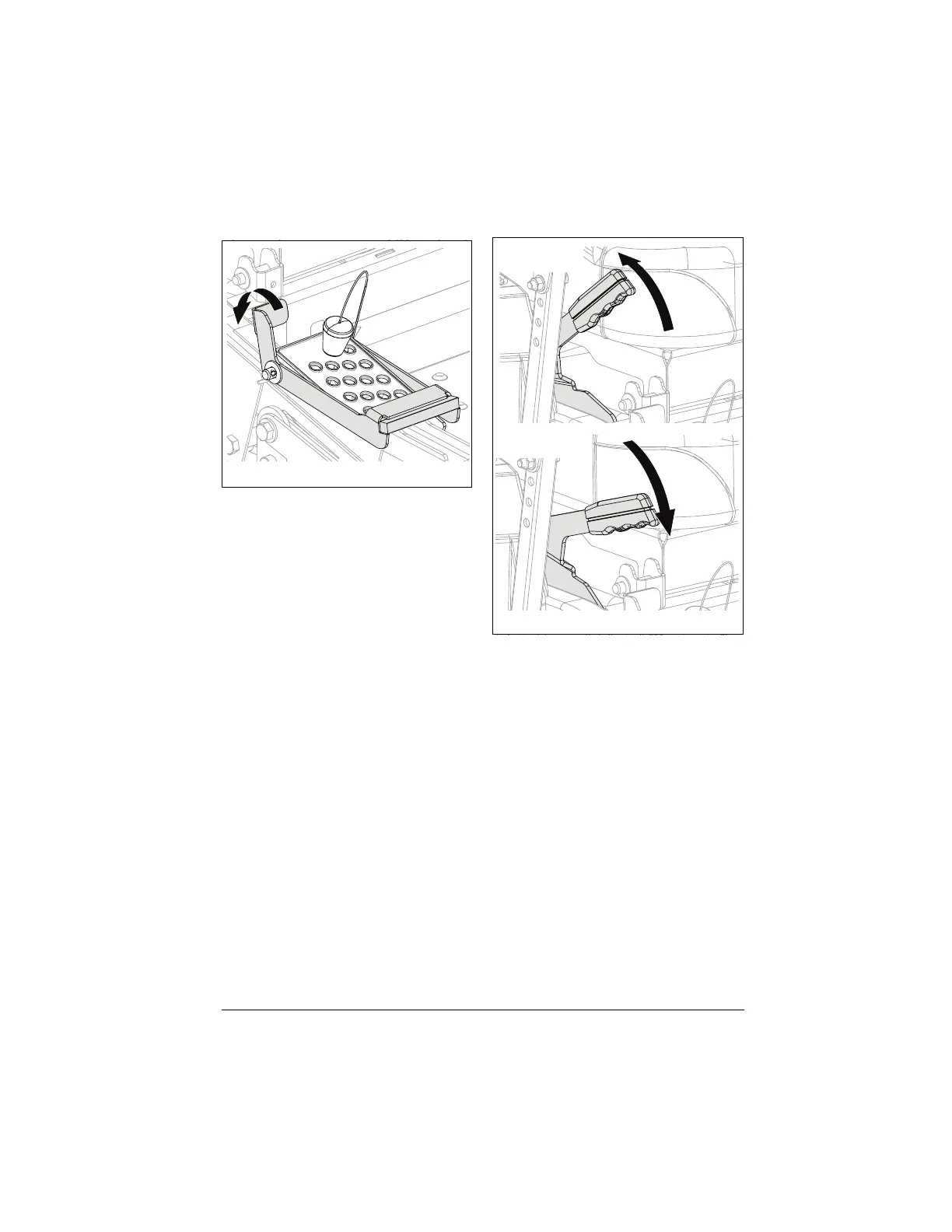

See Figure 18.
Releases deck from transport lock position.
DECK LIFT PEDAL
Raises mower deck to change height-of-cut
setting.
SEAT ADJUSTMENT LEVER
Unlocks seat to allow operator to move seat
forward or backward and then lock in desired
position.
ROLLOVER PROTECTION
STRUCTURE (ROPS)
Models 991254, 991256, 991258, 991260,
991262, 991264
Help protect operator that is wearing their
seatbelt in the event of a rollover. DO NOT
wear seatbelt when operating with ROPS in
the lowered position.
PARKING BRAKE LEVER
See Figure 19.
Controls the parking brake. The engine will
not start with brake in the off position.
SAFETY INTERLOCK SYSTEM
Monitors the interaction of various unit
features for operator safety.
STEERING LEVERS
Control the direction and speed of unit. To
stop unit, return both steering levers to
neutral.
TRANSAXLE BYPASS LEVERS
Control the transaxles so unit may be moved
with the engine off.
ANTI-SCALP WHEEL
Help prevent the deck from contacting the
ground and scalping the lawn when passing
over a high spot.
