2. Locate the right-side ROPS mount
pocket on the inside of the frame above
the wheel motor. Mount the right side
base weldment (item 8) in the pocket
using two 1/2 x 3 1/2 in. hex bolts (item
4), two 1/2 x 3 1/2 in. hex bolts (item 4)
and two 1/2 in. spring lock washers (item
6). Do not fully tighten hardware. See
Figure 6.
Install Center Tube
1. Position center tube weldment (item 10)
in right- and left-side base weldments
with the top angle facing the rear of the
unit. Secure with two 1/2 x 3 1/4 in. hex
bolts (item 3) and two 1/2 in. center lock
nuts (item 7). Ensure that hinge bolts are
positioned to the rear of the unit. Do not
fully tighten. See Figure 7.

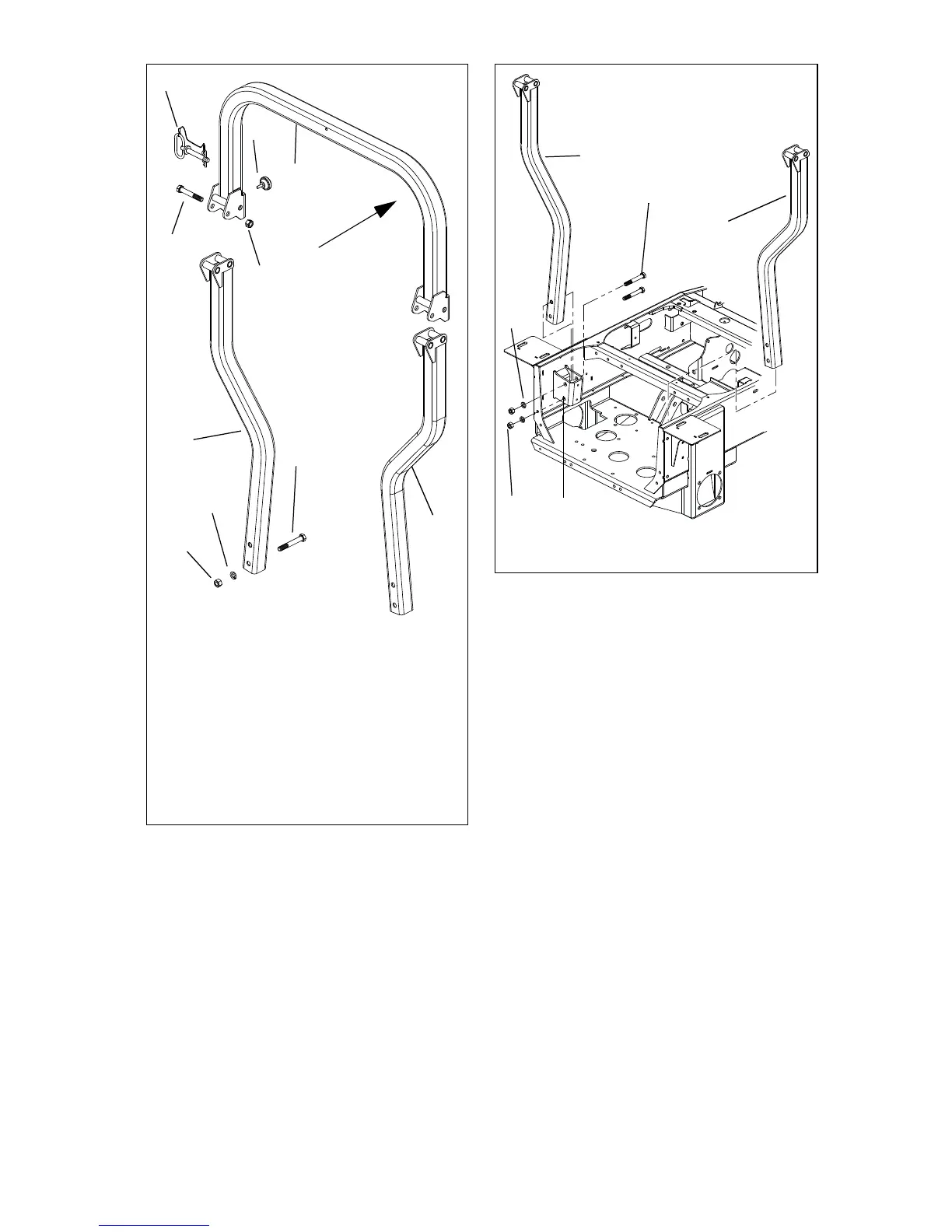

Figure 5
1. ROPS Lock Pin Assembly
2. 5/16 x 3/4 in. Round Knob
3. 1/2 x 3 1/4 in. Hex Bolt
4. 1/2 x 3 1/2 in. Hex Bolt
5. 1/2 in. Hex Nut
6. 1/2 in. Spring Lock Washer
7. 1/2 in. Center Lock Nut
8. Right Side Base Weldment
9. Left Side Base Weldment
10. Center Tube Weldment
2
3
1
4
5
6
7
9
8
10
F
r
o
n
t
Figure 6
ROPS Mount
Pocket
4
5
6
8
9
