Gravely 994157 - SERVICE AND ADJUSTMENTS; REVERSE CLUTCH BRAKE PLATES

EN - 33
3. Follow procedure for installing deck. See
Install Deck on page 31.

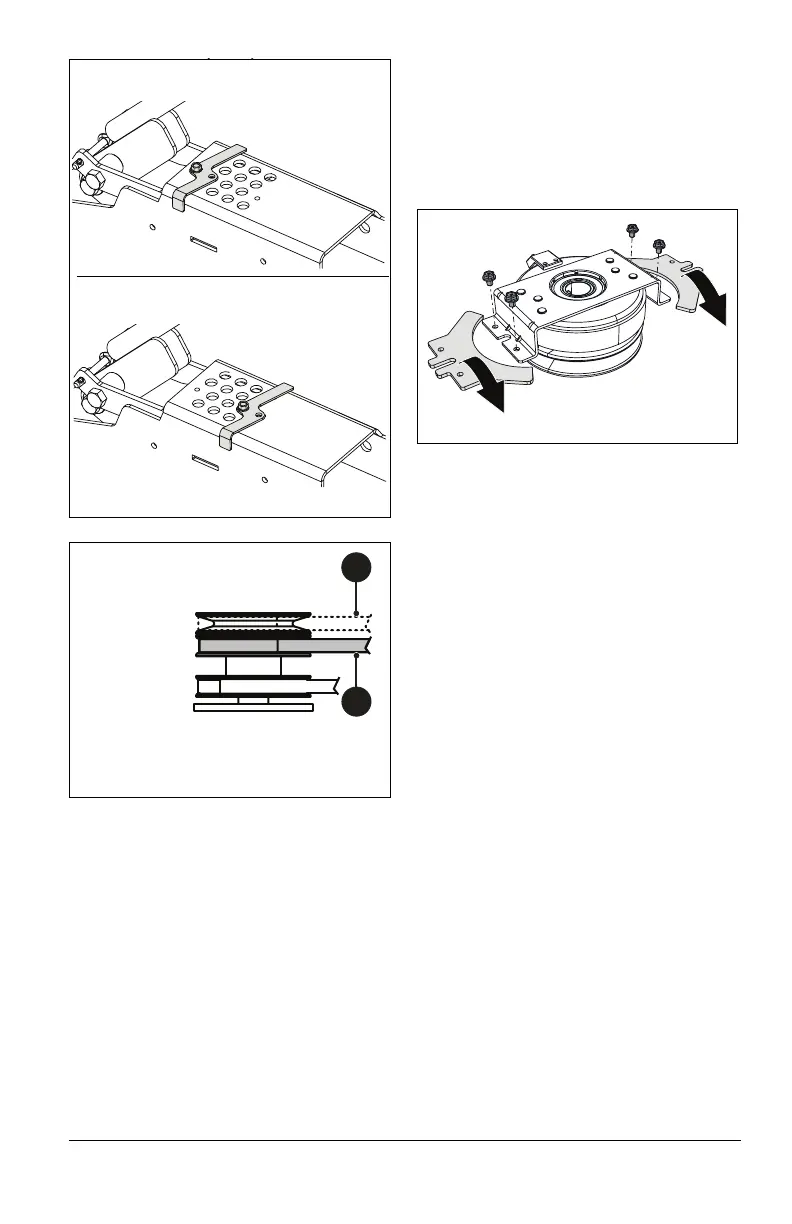

REVERSE CLUTCH BRAKE
PLATES
See Figure 46.
1. Remove hardware securing brake plates
to clutch bracket. Retain for reinstallation.
2. Reverse the brake plates and secure to
clutch bracket using original hardware.
Figure 44
64 mm – 127 mm (2.5" – 5")
38 mm – 102 mm (1.5" – 4")
BELT
POSITION
Figure 45
1. 38 mm – 102 mm (1.5" – 4")
2. 64 mm – 127 mm (2.5" – 5")
1
2
Figure 46
