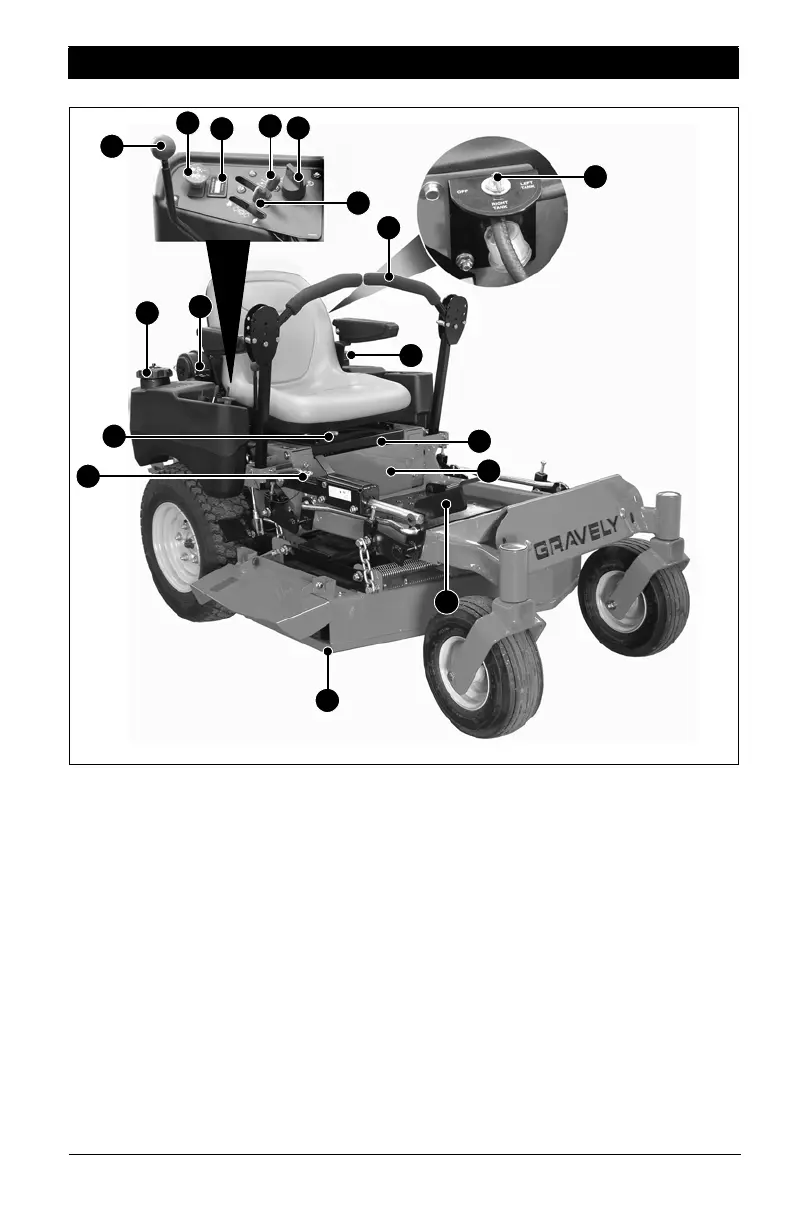

Gravely Compact-Pro 34 991088 - Controls and Features Overview; Control Identification Diagram

EN - 12
1. Fuel Tanks and Caps
2. Wing Knob
3. Steering Levers
4. Hydraulic Oil Reservoir
5. Ignition Key
6. Hour Meter
7.
Throttle Control Lever
8. Choke Control Knob
9. Power Take Off (PTO) Knob
10. Battery
11. Fuel Valve
12. Deck Lift Pedal
13. Mower Deck
14. Mower Lift Lock
15. Seat Adjustment Lever
16. Parking Brake Lever
CONTROLS & FEATURES
Figure 4
