EN - 28
6. Push and hold a steering control lever
forward and turn the control rod until the
steering lever makes contact with the
front index bar.
7. Repeat step 6 on other side.
8. Return the steering levers to the neutral
position.
9. If necessary, slightly adjust the control
rods so the steering levers are aligned
with each other.
10. Turn tie rod until steering levers align.
Adjust both left and right sides as needed.
11. Tighten jam nuts and eccentric spacer
nut.
NOTICE: Adjust steering lever interlock if the
steering levers are shifted during application
of the brake. See Steering Lever Interlock
Adjustment on page 28.
Steering Lever Interlock Adjustment
See Figure 32.
1. Stop engine, remove key and wait for all
moving parts to stop and for hot parts to
cool.
2. Chock wheels to prevent unit from rolling
3. Release parking brake.
4. Loosen but do not remove the outer lock
nut on the eccentric brake bushing.
5. Engage the parking brake. Bushing will
seat in notch in brake lever bracket.
6. Tighten lock nut.
7. If necessary, adjust steering levers to
ensure full alignment with each other.

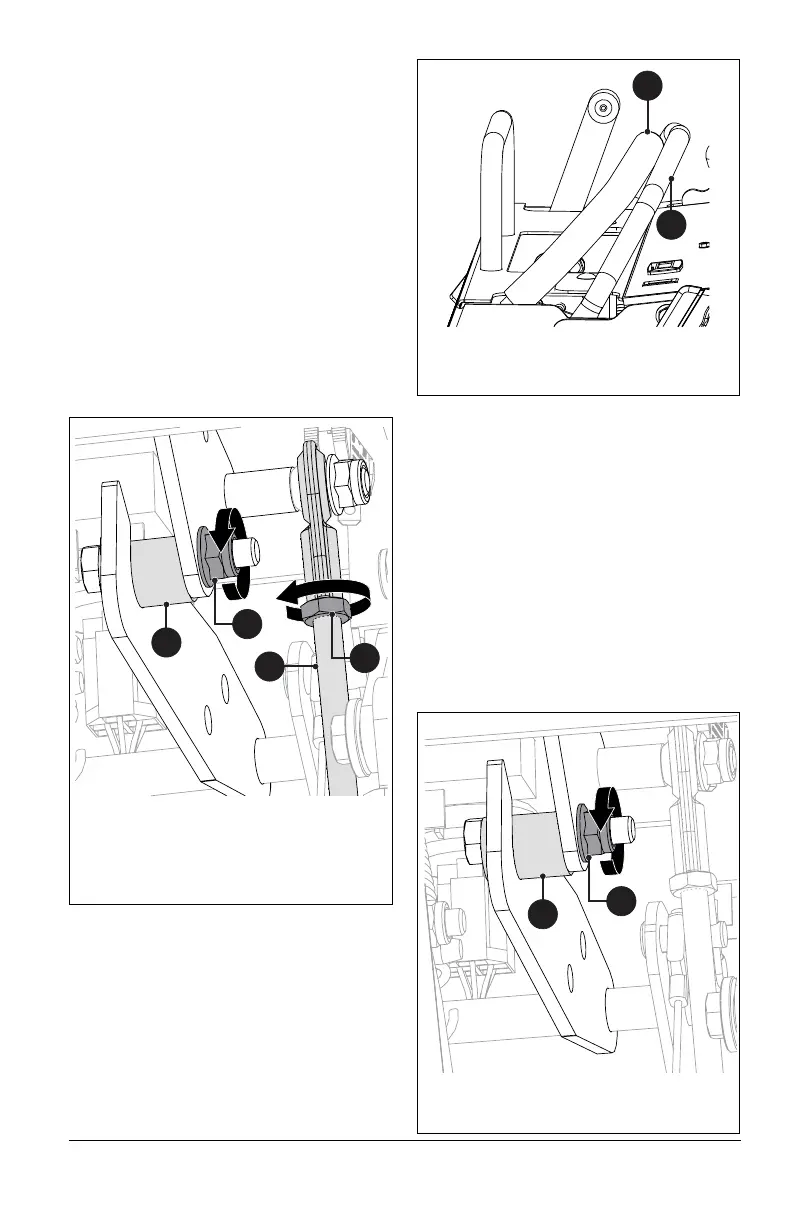

Figure 30
1
2
1. Tie Rod
2. Eccentric Spacer
3. Eccentric Spacer Nut
4. Jam Nut
3
4
Figure 31
1. Steering Lever
2. Front Index Bar
1
2
Figure 32
1
2
1. Eccentric Spacer
2. Lock Nut
