Gravely Pro-Stance 52 - Controls and Features Overview; Control Identification and Locations

EN - 13
1. Fuel Tank
2. Fuel Cap
3. Steering Levers
4. Hydraulic Oil Reservoirs
5. Ignition Switch
6. Hour Meter
7.
Throttle Lever
8. Choke Control Knob (Models 994121,
123, 125, 126, 127, 128, 129)
9. Power Take Off (PTO) Switch
10. Battery (Behind Access Panel)
11. Mower Lift Lever
12. Mower Deck
13. Transport Lock Lever
14. Parking Brake Lever
15. Right Transaxle Bypass Lever
16. Left Transaxle Bypass Lever
17. Oil Pressure Light
18. Height-of-Cut (HOC) Index Wheel
19. Malfunction Indicator Light
(Models 994124, 130)
20. Deck Lift Pedal
21. Speed Control Bar
22. Pad/Rear Access Panel
23. Belt Access Panel
24. Fuel Gauge
25. Carbon Canister
(Models 994125, 127, 129)
26. Operator Platform
CONTROLS AND FEATURES
2
3
4
10
11
12
13
14
8
7
6
19
9
5
18

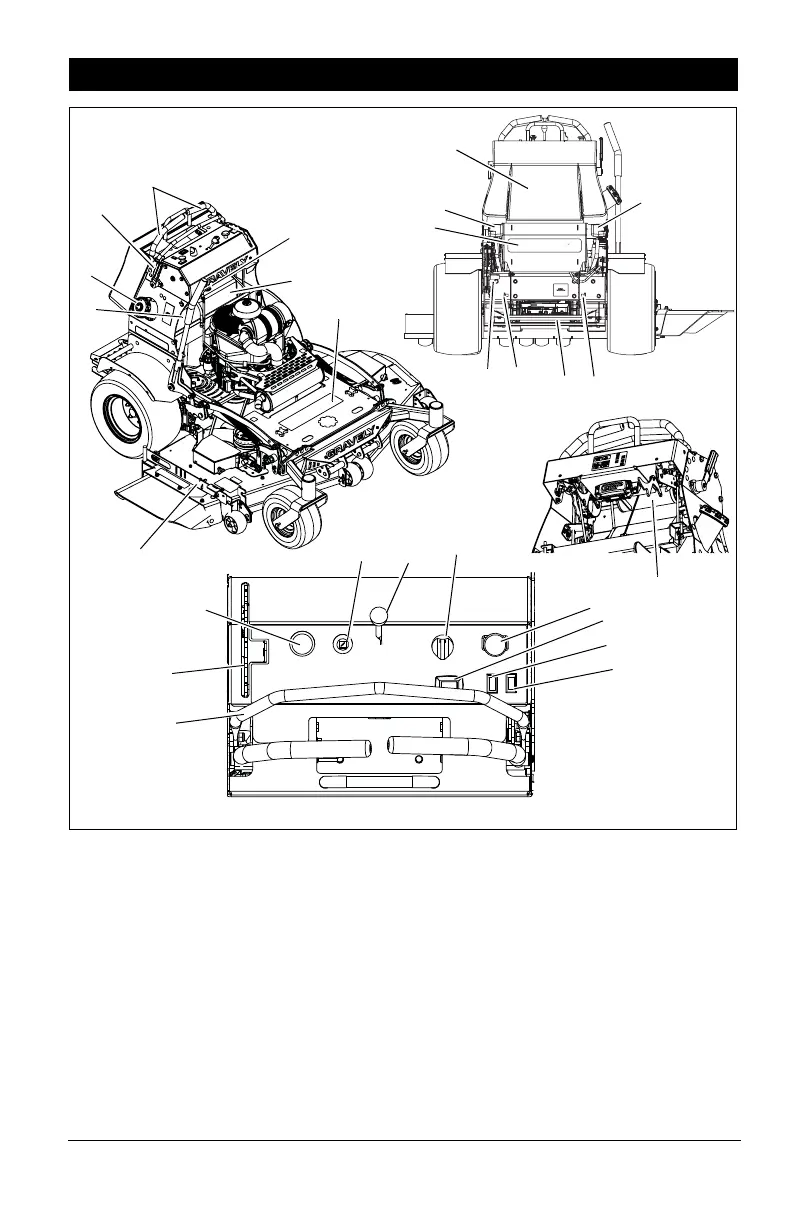

Figure 3
