ADJUSTING THE HEIGHT OF THE
STEERING LEVER HANDLES
The handles have three height positions
(Figure 13).
1. Remove the spacer, handle, and
eccentric spacer from the steering lever.
NOTE: Position the right and left handles at
the same height position.
2. Install the spacer, handle, and eccentric
spacer in the appropriate height position.
Do not tighten the nut holding the
eccentric spacer.
3. Turn the eccentric spacer until the right
and left handles are the same height.
Tighten nut.
PARKING BRAKE ADJUSTMENT
The parking brake might need adjustment
over time and after new brake pads have
been installed.
NOTE: After installing new brake pads in the
calipers, they must be burnished by driving
for a short distance (about 100 feet) with the
brake on. To do this, bring the parking brake
lever part-way up while driving in a straight
line. This quickly breaks-in the pads for
maximum effectiveness

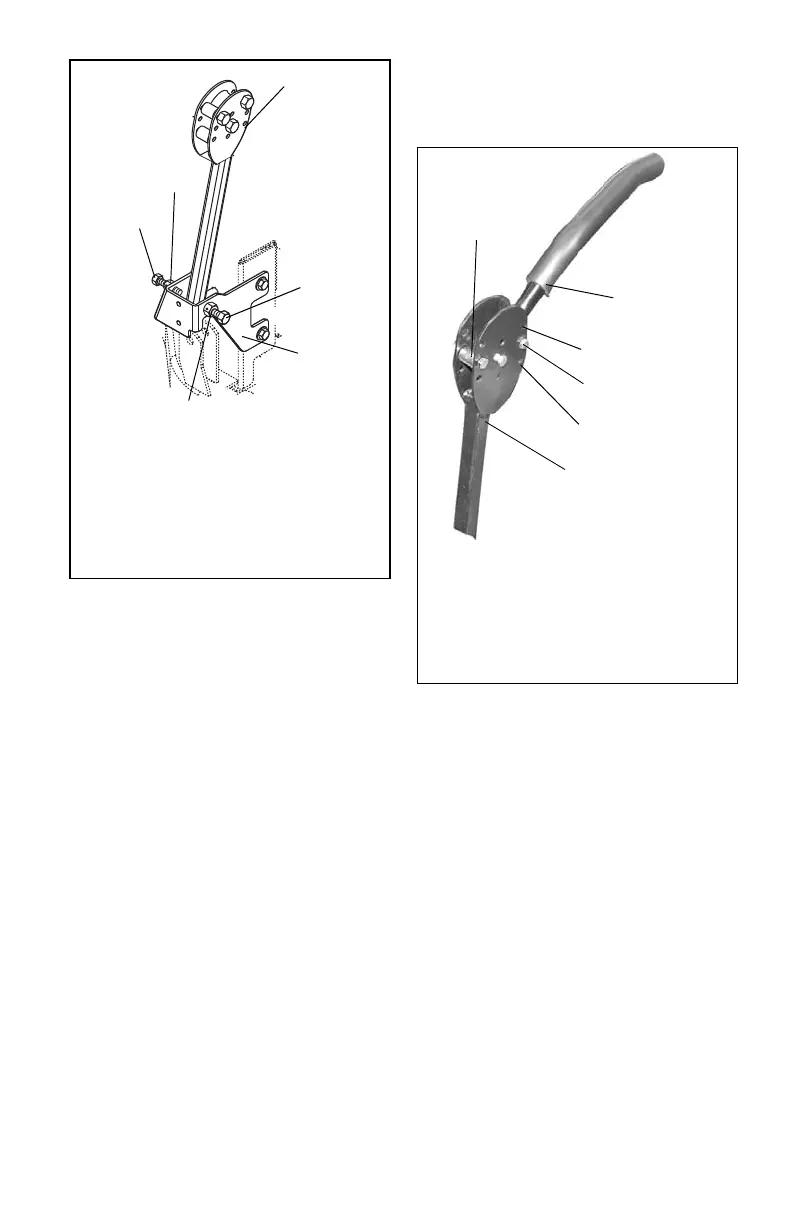

Figure 12
1. Limiter
Bolt
2. Jam Nut
3. Steering
Lever
4. Stop
Bracket
OF3572
1
2
3
1
4
2
Figure 13
OF3570
Position # 1
Position # 2
Position # 3
3
1
2
1. Eccentric Spacer
2. Handle
3. Steering Lever
