Gravely ZT 34 - Operator Controls and Feature Identification

EN - 15
1. Ignition Switch
2. PTO Switch
3. Seat
4. Fuel Level
5. Steering Levers (2)
6. Fuel Tank
7. Mower Lift Pedal
8. Mower Deck
9. Discharge Chute
10. Parking Brake Lever
11. Throttle Lever
12. Choke
13. Seat Adjustment Lever (Models 915212,
915214, 915232, 915234, 915246)
14. Height of Cut Selector Lever
15. Washout Port (Models 915212, 915214,
915232, 915234, 915246)
16. Carbon Canister (Models 915208,
915232, 915234)

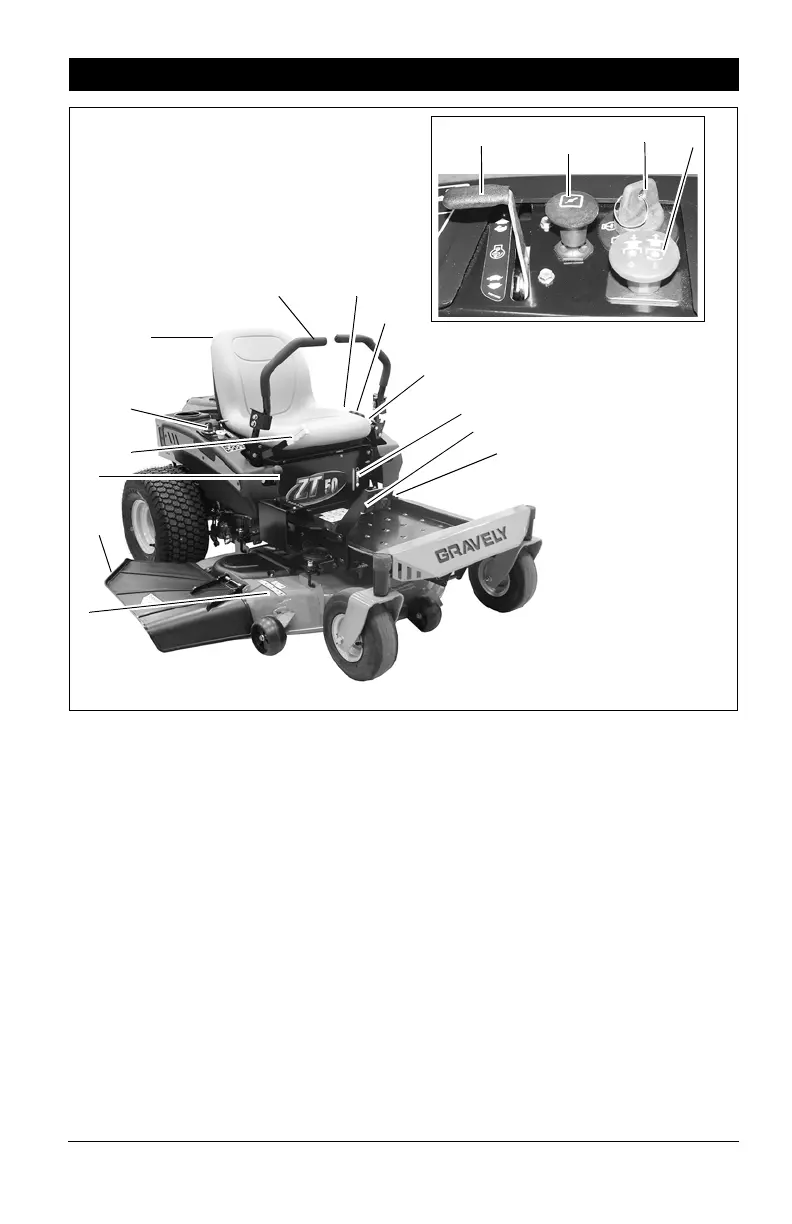

CONTROLS AND FEATURES
3
6
10
7
9
8
16
4
13
15
14
1
2
1
11
12
Figure 4
5
